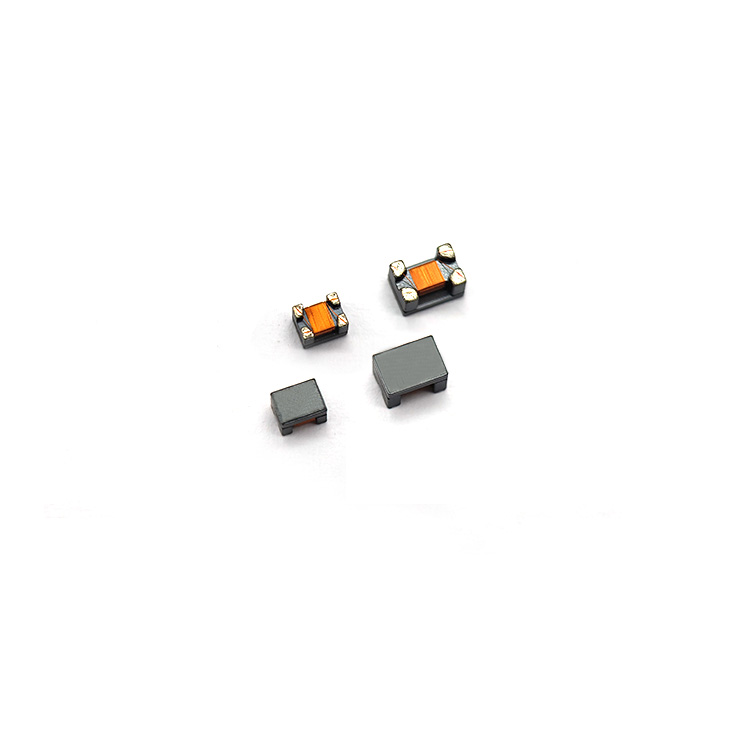

Signal Line Common Mode Chokes/Filters
CML3225 Series (USB,HDMI,LVDS,PLC, PV inverter,CAN)

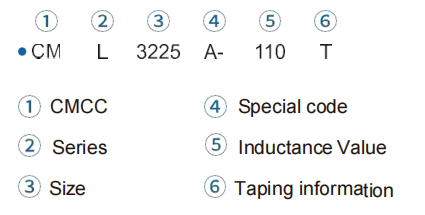

Description

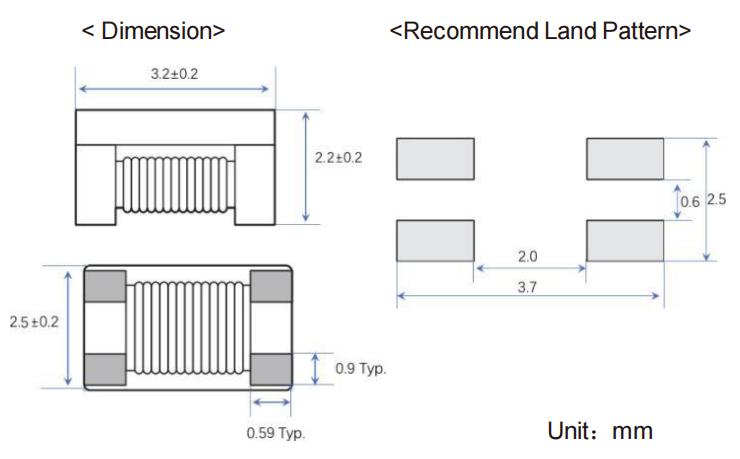

Shape & Dimension
| P/N | Inductance | Common mode Impedance | DCR | IR | Rated Voltage （Vdc） | Irms | Status | Samples | ||
| @100KHZ/0.1V | @10MHz | （1 line） | ||||||||
| uH | Ω | mΩ | MΩ | V | mA |  | Request sample | |||
| +50% / -30% | Min | Typ | Max | Min | Max | Max | | Request sample | ||
| CML3225A-110T | 11 | 300 | 550 | 400 | 10 | 50 | 300 | | Request sample | |
| CML3225A-220T | 22 | 500 | 1100 | 500 | 10 | 50 | 250 | | Request sample | |
| CML3225A-510T | 51 | 1000 | 2600 | 700 | 10 | 50 | 200 | | Request sample | |
| CML3225A-101T | 100 | 2200 | 5100 | 1500 | 10 | 50 | 150 | | Request sample | |
| CML3225A-201T | 200 | 3500 | 8500 | 5500 | 10 | 50 | 70 | | Request sample | |
Related Application
USB 2.0
USB 3.2
HDMI 2.0
HDMI 2.1
LVDS
CAN
PLC
PV inverter
