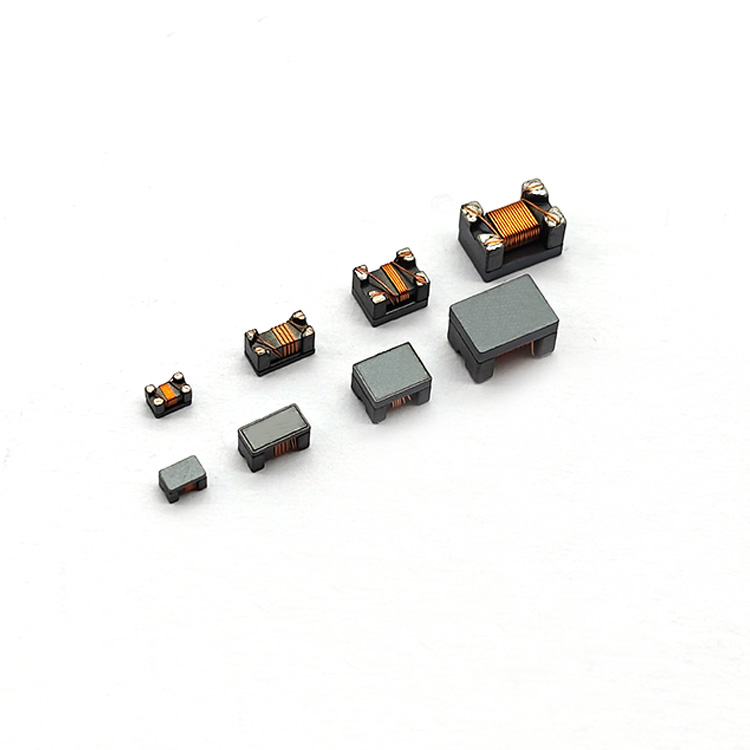

Signal Line Common Mode Chokes/Filters
CMZ1210B Series (USB 3.0 line,HDMI2.0)

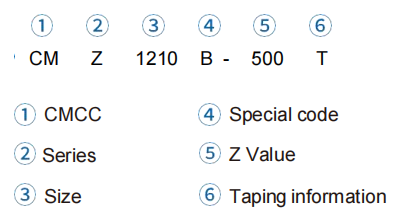

Description

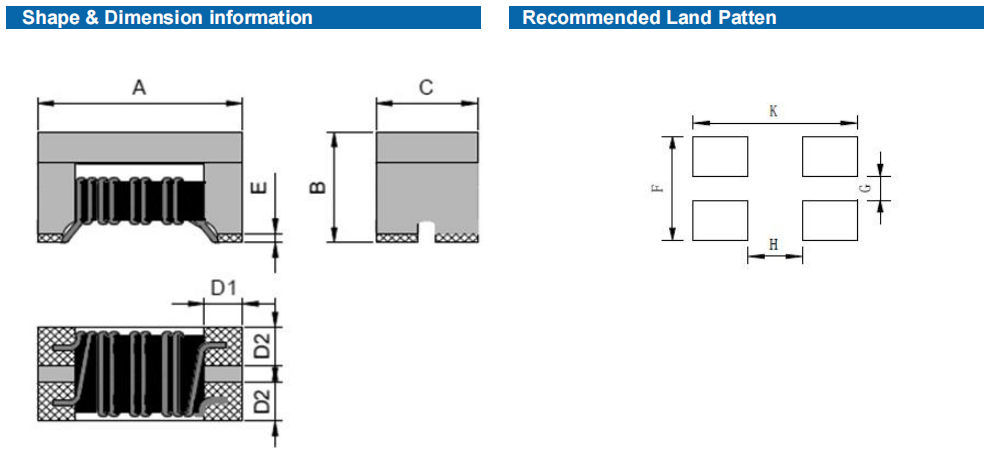

Shape & Dimension
| P/N | Z(Ω) | DCR(mΩ) | IR(MΩ) | "Rated Voltage （Vdc）V" | Rated Current (A) | Status | Sample |
| @100MHZ | |||||||
| ±25% | Max. | Min. | - | Max. |  | Request sample | |
| CMZ1210B-350T | 35 | 300 | 10 | 50 | 0.40 | | Request sample |
| CMZ1210B-500T | 50 | 300 | 10 | 50 | 0.30 | | Request sample |
| CMZ1210B-600T | 60 | 300 | 10 | 50 | 0.30 | | Request sample |
| CMZ1210B-900T | 90 | 400 | 10 | 50 | 0.30 | | Request sample |
| CMZ1210B-121T | 120 | 350 | 10 | 50 | 0.33 | | Request sample |
Related Application
USB 2.0
USB 3.2
HDMI 2.0
HDMI 2.1
LVDS
CAN
PLC
PV inverter
