Power Line Common Mode Chokes/Filters

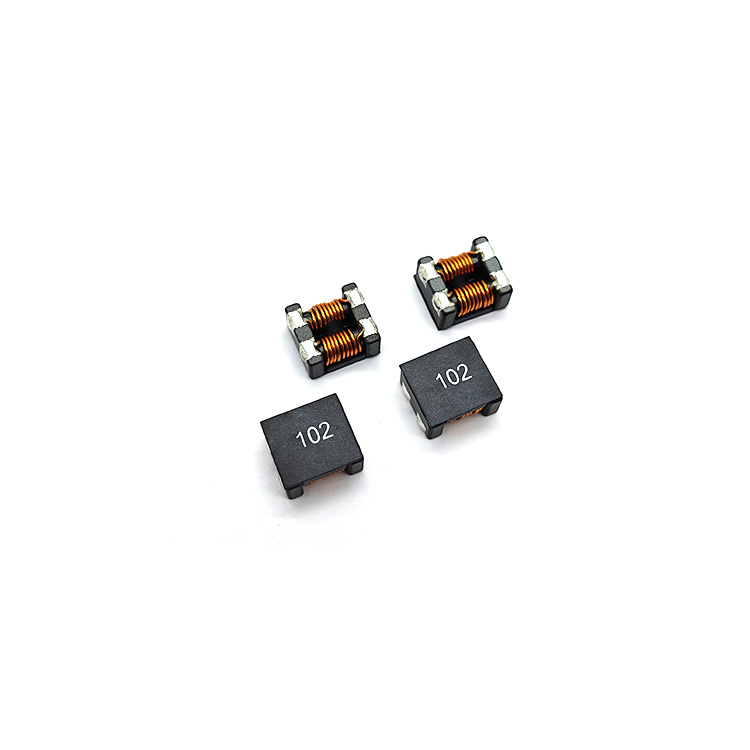

CMZ1211 Series (Power line, Telecom equipment)

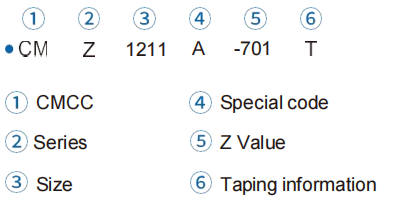

Description

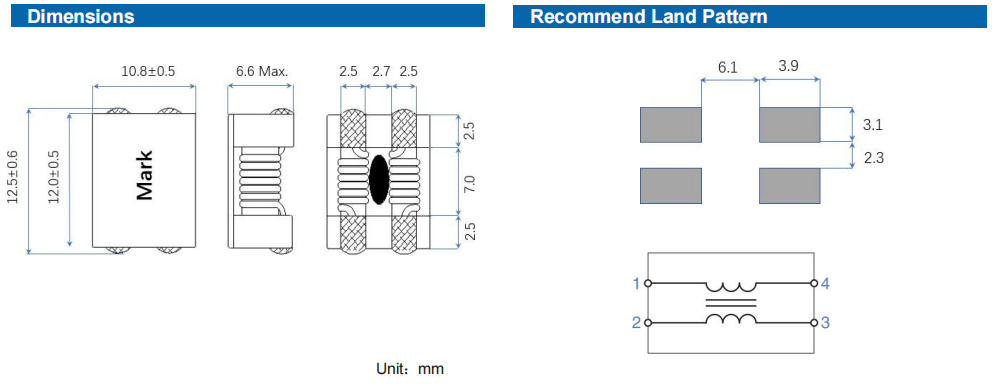

Shape & Dimension
| P/N | Z(Ω) | DCR | IR(MΩ) | "Rated Voltage （Vdc）V" | Irms (A) | Status | Samples | ||
| @100MHZ | |||||||||
| Min. | Typ. | Max | Min | - | Max |  | Request sample | ||
| CMZ1211A-800T | 80 | 230 | 2.0 | 10 | 125 | 10.0 | | Request sample | |
| CMZ1211A-301T | 200 | 300 | 4.0 | 10 | 125 | 9.0 | | Request sample | |
| CMZ1211A-501T | 300 | 500 | 5.5 | 10 | 125 | 8.0 | | Request sample | |
| CMZ1211A-701T | 500 | 700 | 6.0 | 10 | 125 | 8.0 | | Request sample | |
| CMZ1211A-801T | 600 | 800 | 8.0 | 10 | 125 | 8.0 | | Request sample | |
| CMZ1211A-102T | 750 | 1000 | 14 | 10 | 125 | 6.0 | | Request sample | |
| CMZ1211A-222T | 2200 | 2500 | 35 | 10 | 125 | 1.8 | | Request sample | |
| CMZ1211A-272T | 2300 | 2700 | 50 | 10 | 125 | 1.5 | | Request sample | |
Related Application
USB 2.0
USB 3.2
HDMI 2.0
HDMI 2.1
LVDS
CAN
PLC
PV inverter
