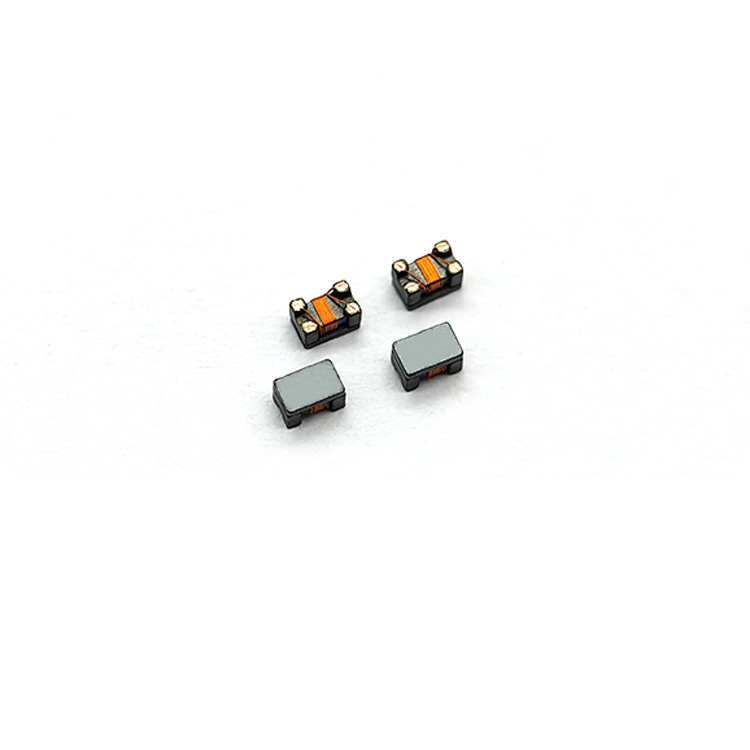

Signal Line Common Mode Chokes/Filters
CMZ2012 Series (USB,HDMI,LVDS,Panel link for LCD panels)
Description

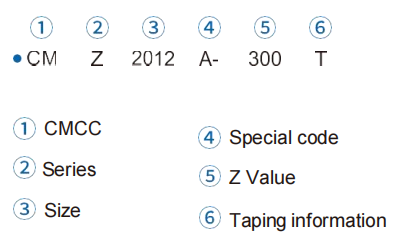

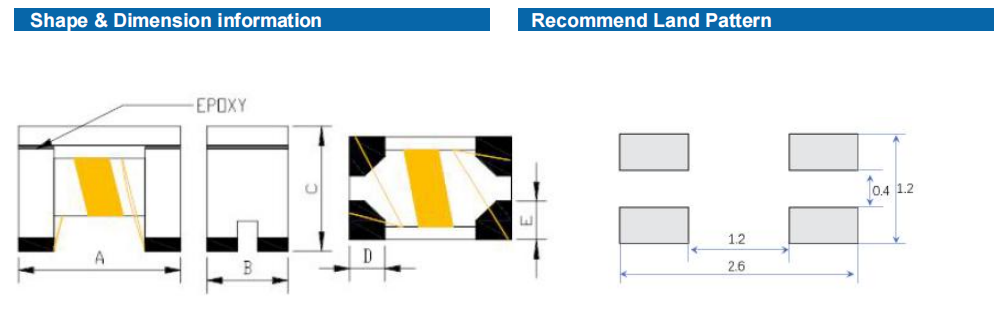

Shape & Dimension
| P/N | Z(Ω) | DCR(mΩ) | IR(MΩ) | Rated Voltage （Vdc） | Irms (A) | Samples |
| @100MHZ | ||||||
| ±25% | Max. | Min. | V | Max. | Request sample | |
| CMZ2012A-300T | 30 | 200 | 10 | 50 | 0.45 | Request sample |
| CMZ2012A-500T | 50 | 250 | 10 | 50 | 0.55 | Request sample |
| CMZ2012A-750T | 75 | 250 | 10 | 50 | 0.40 | Request sample |
| CMZ2012A-900T | 90 | 300 | 10 | 50 | 0.40 | Request sample |
| CMZ2012A-121T | 120 | 300 | 10 | 50 | 0.37 | Request sample |
| CMZ2012A-161T | 160 | 350 | 10 | 50 | 0.35 | Request sample |
| CMZ2012A-181T | 180 | 350 | 10 | 50 | 0.35 | Request sample |
| CMZ2012A-201T | 200 | 350 | 10 | 50 | 0.35 | Request sample |
| CMZ2012A-221T | 220 | 350 | 10 | 50 | 0.35 | Request sample |
| CMZ2012A-251T | 250 | 400 | 10 | 50 | 0.32 | Request sample |
| CMZ2012A-261T | 260 | 400 | 10 | 50 | 0.30 | Request sample |
| CMZ2012A-301T | 300 | 400 | 10 | 50 | 0.29 | Request sample |
| CMZ2012A-361T | 360 | 400 | 10 | 50 | 0.28 | Request sample |
| CMZ2012A-371T | 370 | 450 | 10 | 50 | 0.28 | Request sample |
| CMZ2012A-481T | 480 | 550 | 10 | 50 | 0.20 | Request sample |
| CMZ2012A-501T | 500 | 550 | 10 | 50 | 0.20 | Request sample |
| CMZ2012A-601T | 600 | 550 | 10 | 50 | 0.20 | Request sample |
| CMZ2012A-671T | 670 | 600 | 10 | 50 | 0.18 | Request sample |
| CMZ2012A-681T | 680 | 700 | 10 | 50 | 0.18 | Request sample |
| CMZ2012A-751T | 750 | 800 | 10 | 50 | 0.15 | Request sample |
| CMZ2012A-801T | 800 | 1000 | 10 | 50 | 0.15 | Request sample |
| CMZ2012A-901T | 900 | 1000 | 10 | 50 | 0.10 | Request sample |
| CMZ2012A-102T | 1000 | 1200 | 10 | 50 | 0.10 | Request sample |
