Power Line Common Mode Chokes/Filters

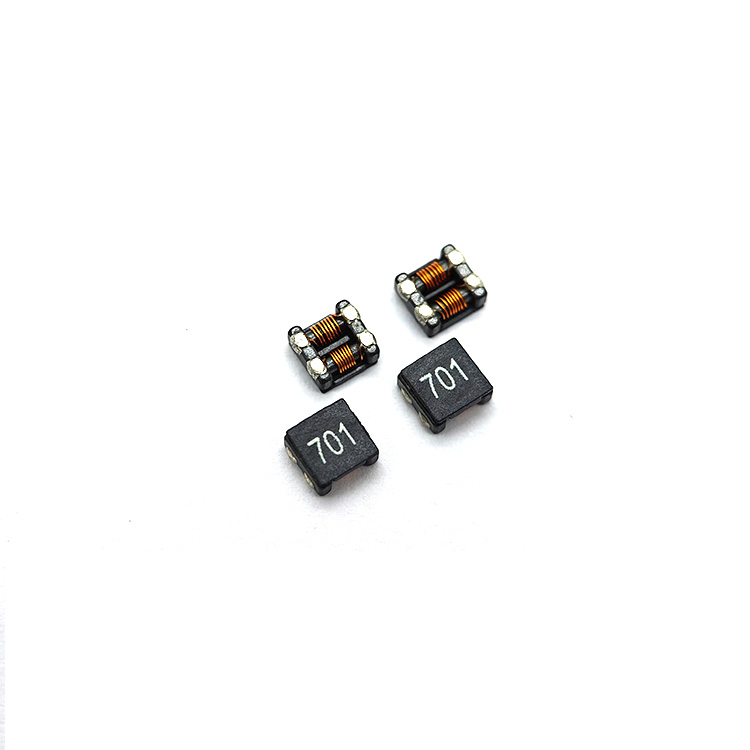

CMZ4520 Series (Automotive)
Description

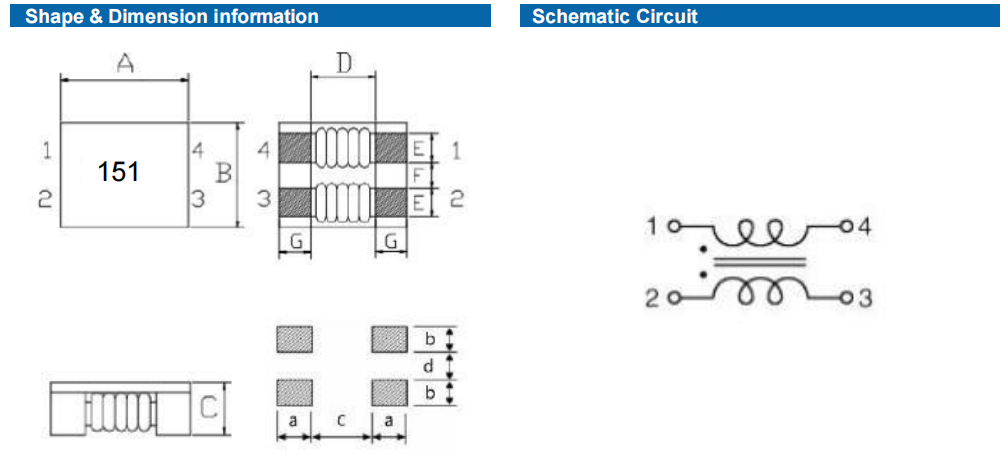

Shape & Dimension
| P/N | Common mode Impedance | DCR | Rated Current | "Rated Voltage （Vdc）V" | "Insulation Resistance 50V/3S" | Marking | Status | Samples | ||
| @100MHZ | ||||||||||
| Z (Ω) | mΩ | A | Vdc | MΩ |  | Request sample | ||||
| Min. | Typ. | Max | Max | Max | Min | | Request sample | |||
| CMZ4520A-900T | 60 | 90 | 35 | 3.2 | 50 | 10 | 900 | | Request sample | |
| CMZ4520A-151T | 90 | 150 | 40 | 3.1 | 50 | 10 | 151 | | Request sample | |
| CMZ4520A-231T | 180 | 230 | 45 | 3.0 | 50 | 10 | 231 | | Request sample | |
| CMZ4520A-301T | 200 | 300 | 45 | 3.0 | 50 | 10 | 301 | | Request sample | |
| CMZ4520A 401T | 300 | 420 | 50 | 2.5 | 50 | 10 | 401 | | Request sample | |
| CMZ4520A 421T | 350 | 420 | 50 | 2.5 | 50 | 10 | 421 | | Request sample | |
| CMZ4520A-501T | 300 | 500 | 55 | 2.4 | 50 | 10 | 501 | | Request sample | |
| CMZ4520A-701T | 500 | 700 | 59 | 2.2 | 50 | 10 | 701 | | Request sample | |
