Power Line Common Mode Chokes/Filters

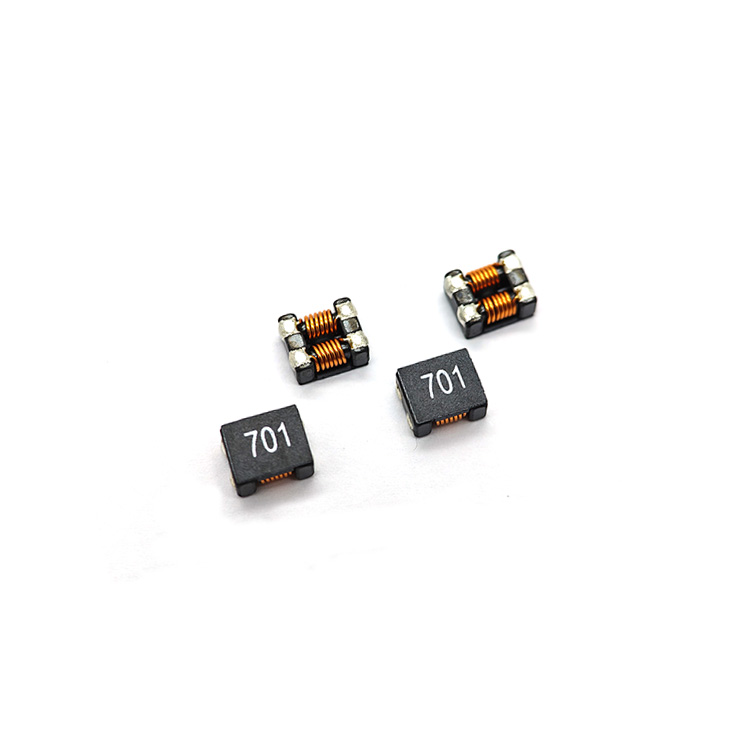

CMZ7060 Series (Power line, Telecom equipment)
Description

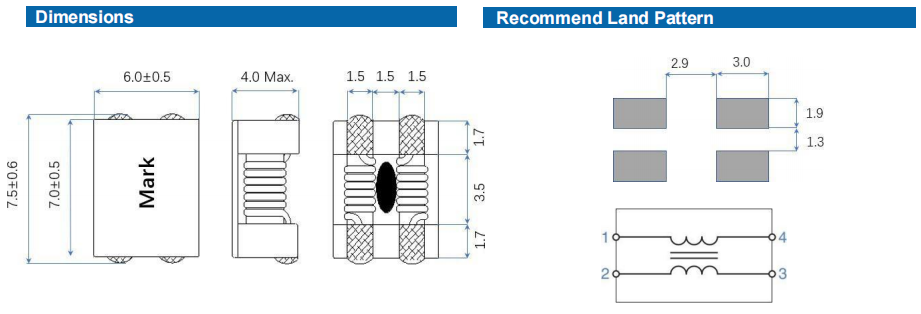

Shape & Dimension
| P/N | Z(Ω) | DCR | IR(MΩ) | "Rated Voltage （Vdc）V" | Irms (A) | Status | Samples | ||
| @100MHZ | |||||||||
| Min. | Typ. | Max | Min | - | Max |  | Request sample | ||
| CMZ7060A-400T | 40 | 70 | 5 | 10 | 125 | 15.0 | | Request sample | |
| CMZ7060A-101T | 100 | 140 | 10 | 10 | 125 | 9.0 | | Request sample | |
| CMZ7060A-301T | 225 | 300 | 10 | 10 | 125 | 5.0 | | Request sample | |
| CMZ7060A-501T | 275 | 450 | 10 | 10 | 125 | 5.0 | | Request sample | |
| CMZ7060A-601T | 500 | 700 | 15 | 10 | 125 | 4.0 | | Request sample | |
| CMZ7060A-701T | 500 | 700 | 15 | 10 | 125 | 4.0 | | Request sample | |
| CMZ7060A-102T | 800 | 1020 | 17 | 10 | 125 | 3.0 | | Request sample | |
| CMZ7060A-132T | 910 | 1300 | 21 | 10 | 125 | 2.5 | | Request sample | |
| CMZ7060A-222T | 1650 | 2200 | 50 | 10 | 125 | 1.2 | | Request sample | |
| CMZ7060A-272T | 2000 | 2700 | 63 | 10 | 125 | 1.0 | | Request sample | |
| CMZ7060A-302T | 2500 | 3000 | 75 | 10 | 125 | 0.9 | | Request sample | |
Related Application
USB 2.0
USB 3.2
HDMI 2.0
HDMI 2.1
LVDS
CAN
PLC
PV inverter
