Power Line Common Mode Chokes/Filters

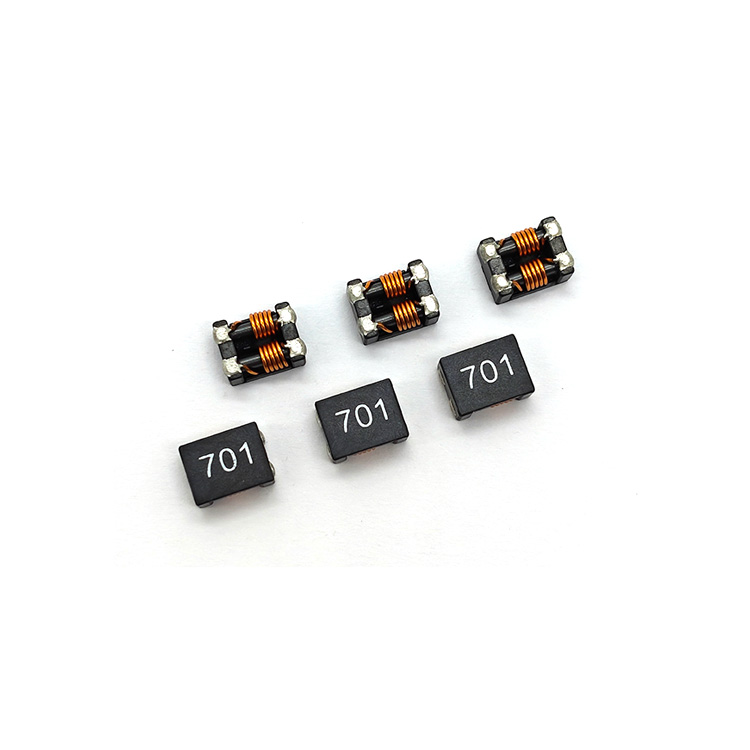

CMZ9070 Series (Power line, Telecom equipment)

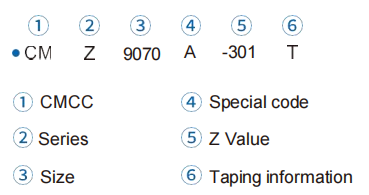

Description

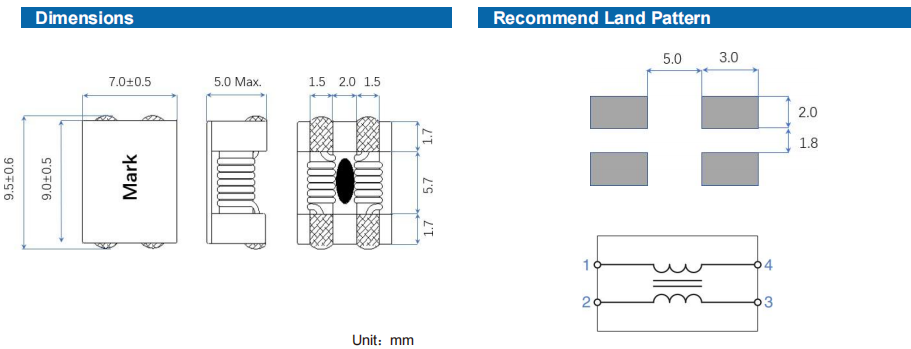

Shape & Dimension
| P/N | Z(Ω) | DCR | IR(MΩ) | "Rated Voltage （Vdc）V" | Irms (A) | Status | Samples | ||
| @100MHZ | |||||||||
| Min. | Typ. | Max | Min | - | Max |  | Request sample | ||
| CMZ9070A-301T | 225 | 300 | 6 | 10 | 125 | 6.0 | | Request sample | |
| CMZ9070A-501T | 450 | 600 | 8 | 10 | 125 | 5.5 | | Request sample | |
| CMZ9070A-701T | 500 | 700 | 10 | 10 | 125 | 5.0 | | Request sample | |
| CMZ9070A-102T | 750 | 1000 | 13 | 10 | 125 | 4.0 | | Request sample | |
| CMZ9070A-222T | 1700 | 2200 | 60 | 10 | 125 | 2.5 | | Request sample | |
| CMZ9070A-272T | 2000 | 2700 | 65 | 10 | 125 | 2.0 | | Request sample | |
| CMZ9070A-302T | 2500 | 3000 | 70 | 10 | 125 | 1.9 | | Request sample | |
Related Application
USB 2.0
USB 3.2
HDMI 2.0
HDMI 2.1
LVDS
CAN
PLC
PV inverter
