ESD Protection Diode ESD12VD5
Single Channel 12V Unidirectional ESD Diode in SOD523 Package

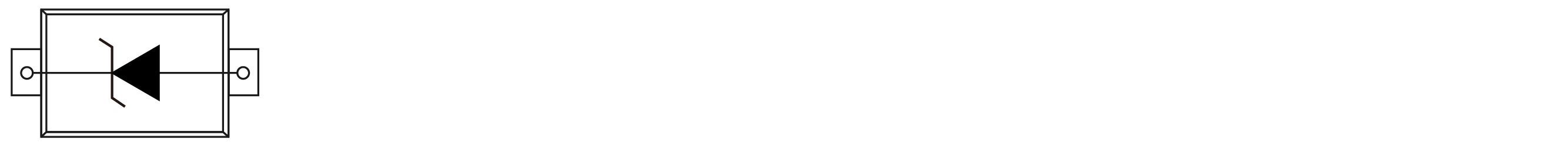

Description
Features
Package
| Parameter | Symbol | Value | Unit |
| Peak pulse power (tp = 8/20μs) | PPK | 220 | W |
| Maximum Reverse Peak Pulse Current(8/20μS) | Ipp | 9 | A |
| ESD per IEC 61000−4−2 (Air) | VESD | ±25 | KV |
| ESD per IEC 61000−4−2 (Contact) | VESD | ±25 | KV |
| Storage Temperature Range | TSTJ | -55 to +150 | ℃ |
| Operating Temperature Range | TJ | -55 to +125 | ℃ |
| P/N | Bi/Uni | Channel | VRWM | VBR | Reverse Current @VRWM | Clamping Voltage | Diode Capacitance VR = 0V, f = 1MHz | IPP | ESD per IEC 61000−4−2 | Status | Samples | ||||
| Max(V) | Min(V) | Max(V) | Min(μA) | Max(V) | Max(pF) | A | VESD(Air) | VESD(Contact) | |||||||
| ESD12VD5 | Uni | 1 | 12 | 14.5 | 16.5 | 1 | 24 | 9 | 25 | 25 |  | Request sample | |||
Related Application
DC 12V
RS-485
LIN
Button/Switch
CAN
LNB
POE
SLIC
