ESD Protection Diode ESD5V0D3P11
Single Channel 5V Unidirectional ESD Diode in SOD323 Package
Description
Features

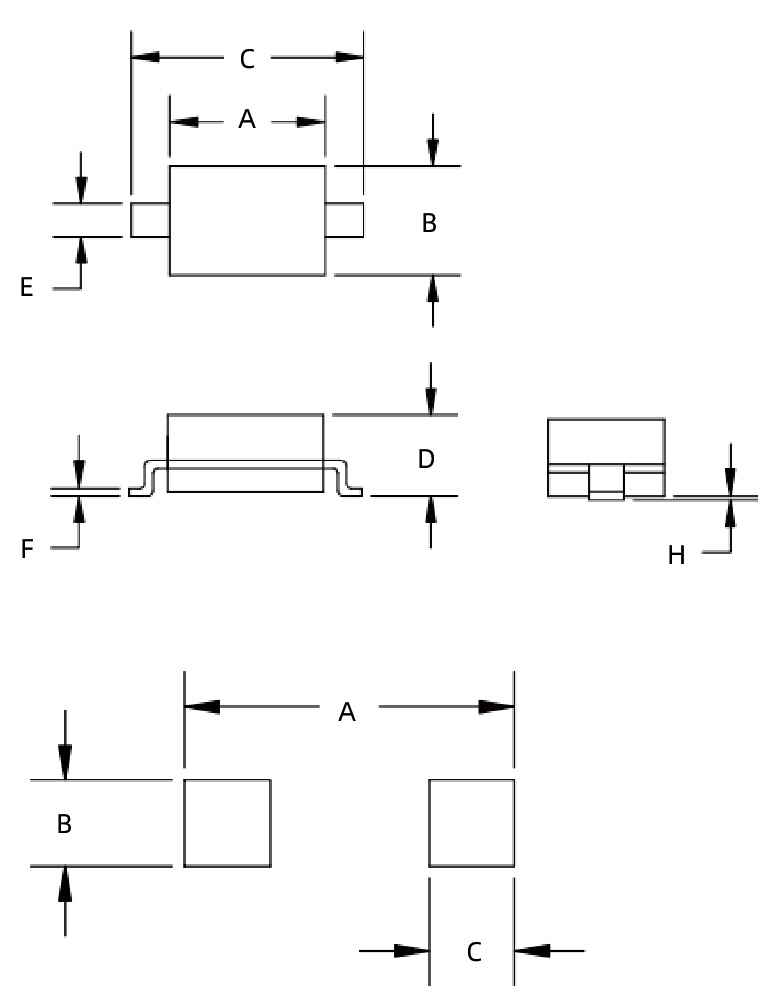

Package
| Parameter | Symbol | Value | Unit |
| Peak pulse power (tp = 8/20μs) | PPP | 1100 | W |
| Maximum Reverse Peak Pulse Current(8/20μS) | Ipp | 110 | A |
| ESD per IEC 61000−4−2 (Air) | VESD | ±30 | KV |
| ESD per IEC 61000−4−2 (Contact) | VESD | ±30 | KV |
| Lead soldering temperature | TL | 260 (10 sec.) | ℃ |
| Storage Temperature Range | TSTJ | -55 to +150 | ℃ |
| Operating Temperature Range | TJ | -55 to +125 | ℃ |
| P/N | Bi/Uni | Channel | VRWM | VBR | Reverse Current @VRWM | Clamping Voltage | Diode Capacitance VR = 0V, f = 1MHz | IPP | ESD per IEC 61000−4−2 | Status | Samples | ||||
| Max(V) | Min(V) | Max(V) | Min(μA) | Max(V) | Max(pF) | A | VESD(Air) | VESD(Contact) | |||||||
| ESD5V0D3P11 | Uni | 1 | 5 | 5.5 | 1 | 11 | 400 | 110 | 30 | 30 |  | Request sample | |||
