ESD Protection Diode ESD5V0D5B
Single Channel 5V Bidirectional ESD Diode in SOD523 Package
Description
Features

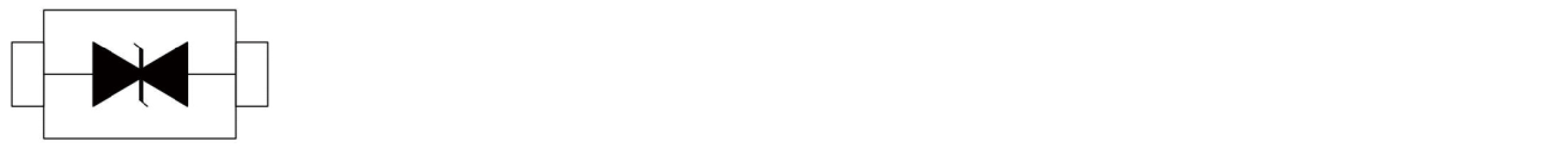

Package
| Parameter | Symbol | Value | Unit |
| Maximum Reverse Peak Pulse Current(8/20μS) | Ipp | 8 | A |
| ESD per IEC 61000−4−2 (Air) | VESD | ±30 | KV |
| ESD per IEC 61000−4−2 (Contact) | VESD | ±30 | KV |
| Storage Temperature Range | TSTJ | -55 to +150 | ℃ |
| Operating Temperature Range | TJ | -40 to +125 | ℃ |
| Lead Soldering Temperature | TL | 260 (10 sec) | ℃ |
| P/N | Bi/Uni | Channel | VRWM | VBR | Reverse Current @VRWM | Clamping Voltage | Diode Capacitance VR = 0V, f = 1MHz | IPP | ESD per IEC 61000−4−2 | Status | Samples | ||||
| Max(V) | Min(V) | Max(V) | Min(μA) | Max(V) | Max(pF) | A | VESD(Air) | VESD(Contact) | |||||||
| ESD5V0D5B | Bi | 1 | 5 | 5.6 | 7.8 | 0.2 | 11 | 18 | 8 | 30 | 30 |  | Request sample | ||
Related Application
USB
RS-485
Type-C
Touch Screen
SD
MIC
RS-232
Key
