ESD Protection Diode ESDSR05
Two Channels 5V Unidirectional ESD Diode in SOT-143 Package
Description
Features

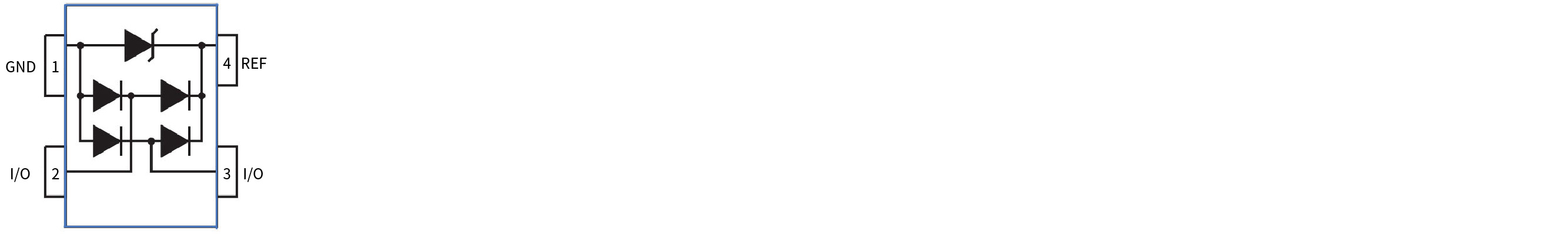

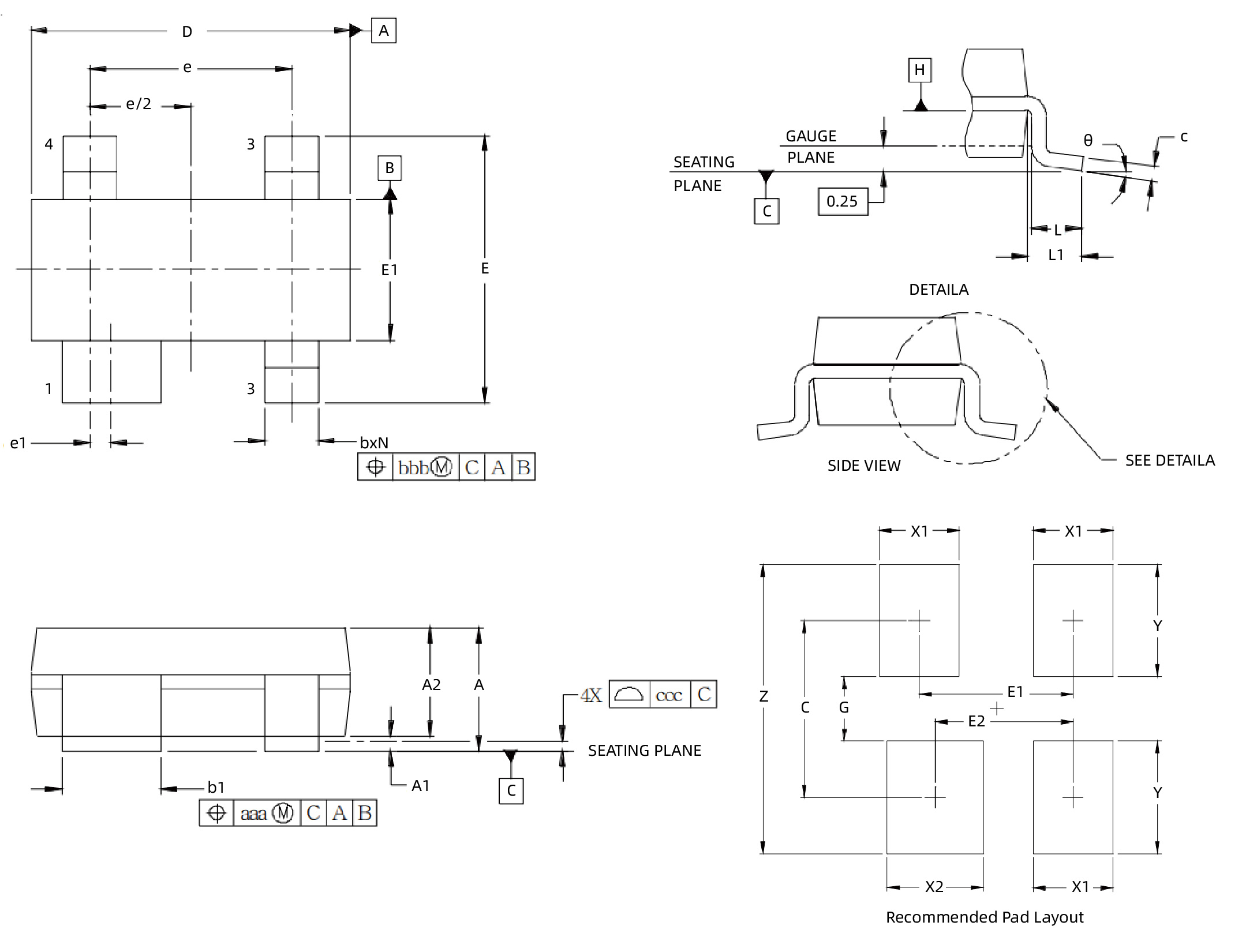

Package
| Parameter | Symbol | Value | Unit |
| Peak pulse power (tp = 8/20μs) | PPP | 36 | W |
| Peak Current (tp =8/20μs) | Ipp | 3 | A |
| ESD per IEC 61000−4−2 (Air) | VESD | ±15 | KV |
| ESD per IEC 61000−4−2 (Contact) | VESD | ±10 | KV |
| Lead Soldering Temperature | TL | 260 (10 sec) | °C |
| Storage Temperature Range | TSTJ | -55 to +150 | ℃ |
| Operating Temperature Range | TJ | -55 to +125 | ℃ |
| P/N | Bi/Uni | Channel | VRWM | VBR | Reverse Current @VRWM | Clamping Voltage | Diode Capacitance VR = 0V, f = 1MHz | IPP | ESD per IEC 61000−4−2 | Status | Samples | ||||
| Max(V) | Min(V) | Max(V) | Min(μA) | Max(V) | Max(pF) | A | VESD(Air) | VESD(Contact) | |||||||
| ESDSR05 | Uni | 2 | 5 | 6 | 8 | 1 | 12 | 0.8/1.2 | 3 | 15 | 10 |  | Request sample | ||
Related Application
DC 12V
RJ45
Touch Screen
Audio
Key
MIC
RJ11
USB
Documents
All
Data sheet
