High Current Chip Ferrite Beads

PBZ****B Series

DATA SHEET PBZ****B Series High Current Chip Ferrite Bead datasheet

Order now

Product profile

Parameter table

Application

Document

Find out other inductors

Description

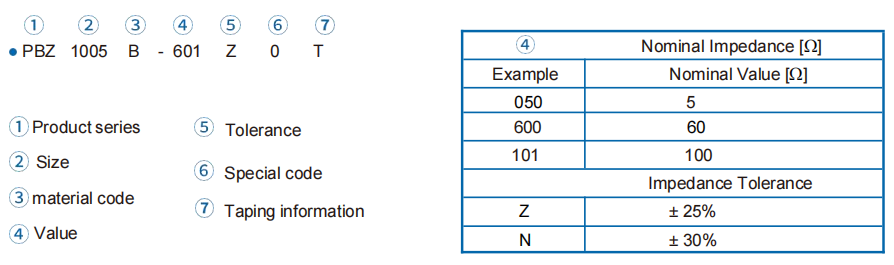

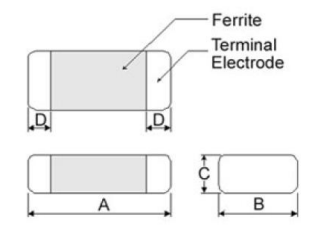

Shape & Dimension

TYPE	A	B	C	D
1005	1.0±0.15	0.5±0.15	0.5±0.15	0.25±0.1
1608	1.6±0.20	0.8±0.20	0.8±0.20	0.30±0.2
2012	2.0±0.20	1.2±0.20	0.9±0.20	0.50±0.3
3216	3.2±0.20	1.6±0.20	0.9±0.20	0.50±0.3
3225	3.2±0.20	2.5±0.20	1.3±0.20	0.50±0.3
4516	4.5±0.20	1.6±0.20	1.6±0.20	0.50±0.3
4532	4.5±0.20	3.2±0.20	1.5±0.20	0.50±0.3

P/N	Impedance ( Ω )	Test Frequency (MHz)	DC Resistance ( Ω) max.	Test voltage (mV)	Rated Current (mA) max.	Samples
PBZ1005B-050Z0T	5（0~15Ω)	100	0.02	50	2000	Request sample
PBZ1005B-070Z0T	7（0~11Ω)	100	0.02	50	2000	Request sample
PBZ1005B-090Z0T	9（5~13Ω)	100	0.02	50	2000	Request sample
PBZ1005B-110Z0T	11（7~15Ω)	100	0.02	50	2000	Request sample
PBZ1005B-150Z0T	15（9~21Ω)	100	0.02	50	2000	Request sample
PBZ1005B-190Z0T	19（12~25Ω)	100	0.035	50	1700	Request sample
PBZ1005B-260Z0T	26±25%	100	0.06	50	1500	Request sample
PBZ1005B-300Z0T	30±25%	100	0.06	50	1500	Request sample
PBZ1005B-600Z0T	60±25%	100	0.10	50	1300	Request sample
PBZ1005B-101Z0T	100±25%	100	0.15	50	1000	Request sample
PBZ1005B-121Z0T	120±25%	100	0.15	50	1000	Request sample
PBZ1005B-151Z0T	150±25%	100	0.20	50	700	Request sample
PBZ1005B-201Z0T	200±25%	100	0.25	50	700	Request sample
PBZ1005B-221Z0T	220±25%	100	0.28	50	700	Request sample
PBZ1005B-301Z0T	300±25%	100	0.30	50	600	Request sample
PBZ1005B-501Z0T	500±25%	100	0.40	50	500	Request sample
PBZ1005B-601Z0T	600±25%	100	0.50	50	500	Request sample
PBZ1005B-801Z0T	800±25%	100	0.65	50	300	Request sample
PBZ1005B-102Z0T	1000±25%	100	0.65	50	300	Request sample
PBZ1608B-050Z0T	5（0~15Ω)	100	0.01	50	6000	Request sample
PBZ1608B-070Z0T	7（0~11Ω)	100	0.01	50	6000	Request sample
PBZ1608B-090Z0T	9（5~13Ω)	100	0.01	50	6000	Request sample
PBZ1608B-110Z0T	11（7~15Ω)	100	0.01	50	6000	Request sample
PBZ1608B-150Z0T	15（9~21Ω)	100	0.01	50	6000	Request sample
PBZ1608B-190Z0T	19（12~25Ω)	100	0.01	50	6000	Request sample
PBZ1608B-260Z0T	26±25%	100	0.03	50	5000	Request sample
PBZ1608B-300Z0T	30±25%	100	0.03	50	4000	Request sample
PBZ1608B-500Z0T	50±25%	100	0.40	50	3000	Request sample
PBZ1608B-600Z0T	60±25%	100	0.40	50	3000	Request sample
PBZ1608B-700Z0T	70±25%	100	0.60	50	2500	Request sample
PBZ1608B-750Z0T	75±25%	100	0.60	50	2500	Request sample
PBZ1608B-800Z0T	80±25%	100	0.60	50	2500	Request sample
PBZ1608B-10 1Z0T	100±25%	100	0.60	50	2500	Request sample
PBZ1608B-121Z0T	120±25%	100	0.065	50	2000	Request sample
PBZ1608B-151Z0T	150±25%	100	0.07	50	1500	Request sample
PBZ1608B-1811Z0T	180±25%	100	0.09	50	1500	Request sample
PBZ1608B-221Z0T	220±25%	100	0.12	50	1500	Request sample
PBZ1608B-301Z0T	300±25%	100	0.15	50	1500	Request sample
PBZ1608B-331Z0T	330±25%	100	0.18	50	1300	Request sample
PBZ1608B-501Z0T	500±25%	100	0.18	50	1300	Request sample
PBZ1608B-601Z0T	600±25%	100	0.18	50	1300	Request sample
PBZ1608B-801Z0T	800±25%	100	0.30	50	800	Request sample
PBZ1608B-102Z0T	1000±25%	100	0.35	50	700	Request sample
PBZ2012B-050Z0T	5（0~15Ω)	100	0.01	50	6000	Request sample
PBZ2012B-070Z0T	7（0~11Ω)	100	0.01	50	6000	Request sample
PBZ2012B-090Z0T	9（5~13Ω)	100	0.01	50	6000	Request sample
PBZ2012B-110Z0T	11（7~15Ω)	100	0.01	50	6000	Request sample
PBZ2012B-150Z0T	15（9~21Ω)	100	0.01	50	6000	Request sample
PBZ2012B-190Z0T	19（12~25Ω)	100	0.01	50	6000	Request sample
PBZ2012B-300Z0T	30±25%	100	0.01	50	6000	Request sample
PBZ2012B-310Z0T	31±25%	100	0.01	50	6000	Request sample
PBZ2012B-500Z0T	50±25%	100	0.03	50	4000	Request sample
PBZ2012B-600Z0T	60±25%	100	0.03	50	4000	Request sample
PBZ2012B-700Z0T	70±25%	100	0.04	50	4000	Request sample
PBZ2012B-800Z0T	80±25%	100	0.04	50	4000	Request sample
PBZ2012B-10 1Z0T	100±25%	100	0.045	50	4000	Request sample
PBZ2012B-121Z0T	120±25%	100	0.045	50	4000	Request sample
PBZ2012B-15 1Z0T	150±25%	100	0.07	50	3000	Request sample
PBZ2012B-181Z0T	180±25%	100	0.07	50	3000	Request sample
PBZ2012B-221Z0T	220±25%	100	0.07	50	3000	Request sample
PBZ2012B-301Z0T	300±25%	100	0.08	50	2500	Request sample
PBZ2012B-501Z0T	500±25%	100	0.09	50	2500	Request sample
PBZ2012B-601Z0T	600±25%	100	0.10	50	2000	Request sample
PBZ2012B-102Z0T	1000±25%	100	0.12	50	1500	Request sample
PBZ3216B-050Z0T	5（0~15Ω)	100	0.01	50	6000	Request sample
PBZ3216B-070Z0T	7（0~11Ω)	100	0.01	50	6000	Request sample
PBZ3216B-090Z0T	9（5~13Ω)	100	0.01	50	6000	Request sample
PBZ3216B-110Z0T	11（7~15Ω)	100	0.01	50	6000	Request sample
PBZ3216B-150Z0T	15（9~21Ω)	100	0.015	50	6000	Request sample
PBZ3216B-190Z0T	19（12~25Ω)	100	0.015	50	6000	Request sample
PBZ3216B-260Z0T	26±25%	100	0.015	50	6000	Request sample
PBZ3216B-280Z0T	28±25%	100	0.015	50	6000	Request sample
PBZ3216B-300Z0T	30±25%	100	0.015	50	6000	Request sample
PBZ3216B-310Z0T	31±25%	100	0.02	50	5000	Request sample
PBZ3216B-500Z0T	50±25%	100	0.02	50	5000	Request sample
PBZ3216B-600Z0T	60±25%	100	0.025	50	5000	Request sample
PBZ3216B-700Z0T	70±25%	100	0.035	50	4000	Request sample
PBZ3216B-800Z0T	80±25%	100	0.035	50	4000	Request sample
PBZ3216B-10 1Z0T	100±25%	100	0.035	50	4000	Request sample
PBZ3216B-121Z0T	120±25%	100	0.035	50	4000	Request sample
PBZ3216B-151Z0T	150±25%	100	0.045	50	3000	Request sample
PBZ3216B-181Z0T	180±25%	100	0.055	50	3000	Request sample
PBZ3216B-221Z0T	220±25%	100	0.055	50	3000	Request sample
PBZ3216B-301Z0T	300±25%	100	0.065	50	2500	Request sample
PBZ3216B-501Z0T	500±25%	100	0.08	50	2500	Request sample
PBZ3216B-601Z0T	600±25%	100	0.085	50	2200	Request sample
PBZ3216B-801Z0T	800±25%	100	0.11	50	2100	Request sample
PBZ3216B-102Z0T	1000±25%	100	0.12	50	2100	Request sample
PBZ3225B-110Z0T	11（7~15Ω)	100	0.02	50	6000	Request sample
PBZ3225B-150Z0T	15（9~21Ω)	100	0.02	50	6000	Request sample
PBZ3225B-190Z0T	19（12~25Ω)	100	0.02	50	6000	Request sample
PBZ3225B-260Z0T	26±25%	100	0.02	50	6000	Request sample
PBZ3225B-310Z0T	31±25%	100	0.02	50	6000	Request sample
PBZ3225B-600Z0T	60±25%	100	0.02	50	6000	Request sample
PBZ3225B-700Z0T	70±25%	100	0.02	50	6000	Request sample
PBZ3225B-800Z0T	80±25%	100	0.02	50	6000	Request sample
PBZ3225B-900Z0T	90±25%	100	0.03	50	5000	Request sample
PBZ3225B-121Z0T	120±25%	100	0.03	50	5000	Request sample
PBZ3225B-151Z0T	150±25%	100	0.03	50	5000	Request sample
PBZ3225B-301Z0T	300±25%	100	0.06	50	4000	Request sample
PBZ3225B-501Z0T	500±25%	100	0.10	50	4000	Request sample
PBZ3225B-601Z0T	600±25%	100	0.15	50	3000	Request sample
PBZ3225B-801Z0T	800±25%	100	0.20	50	2500	Request sample
PBZ3225B-102Z0T	1000±25%	100	0.23	50	2500	Request sample
PBZ4516B-190Z0T	19（12~25Ω)	100	0.009	50	6000	Request sample
PBZ4516B-260Z0T	26±25%	100	0.009	50	6000	Request sample
PBZ4516B-310Z0T	31±25%	100	0.009	50	6000	Request sample
PBZ4516B-600Z0T	60±25%	100	0.009	50	6000	Request sample
PBZ4516B-750Z0T	75±25%	100	0.02	50	4000	Request sample
PBZ4516B-800Z0T	80±25%	100	0.025	50	3000	Request sample
PBZ4532B-190Z0T	19（12~25Ω)	100	0.01	50	6000	Request sample
PBZ4532B-260Z0T	26±25%	100	0.01	50	6000	Request sample
PBZ4532B-280Z0T	28±25%	100	0.01	50	6000	Request sample
PBZ4532B-300Z0T	30±25%	100	0.01	50	6000	Request sample
PBZ4532B-310Z0T	31±25%	100	0.01	50	6000	Request sample
PBZ4532B-380Z0T	38±25%	100	0.01	50	6000	Request sample
PBZ4532B-400Z0T	40±25%	100	0.01	50	6000	Request sample
PBZ4532B-500Z0T	50±25%	100	0.01	50	6000	Request sample
PBZ4532B-600Z0T	60±25%	100	0.01	50	6000	Request sample
PBZ4532B-700Z0T	70±25%	100	0.01	50	6000	Request sample
PBZ4532B-101Z0T	100±25%	100	0.02	50	6000	Request sample
PBZ4532B-181Z0T	180±25%	100	0.02	50	6000	Request sample
PBZ4532B-221Z0T	220±25%	100	0.02	50	6000	Request sample
PBZ4532B-501Z0T	500±25%	100	0.08	50	4000	Request sample
PBZ4532B-601Z0T	600±25%	100	0.08	50	4000	Request sample
