POC Power inductor
PCW2012 Series (AEC-Q200 Compliance)

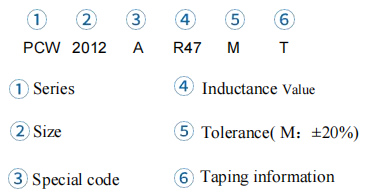

Description

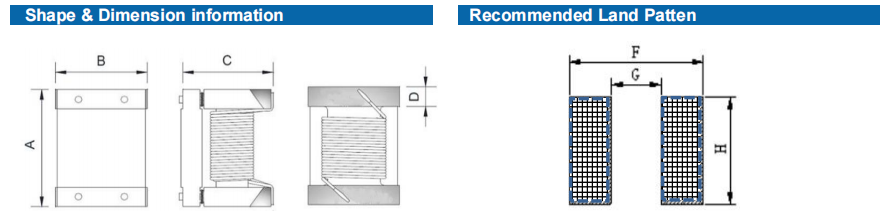

Shape & Dimension
| P/N | Inductance | DCR (Ω) | Self-resonant Frequency | Saturation Current（mA） | Irms (mA) | Status | Samples |
| 1MHz/1V | Current（mA）" | ||||||
| ( uH ) | Max. | MHz Min. | MAX | Max. |  | Request sample | |
| PCW2012A-R47M | 0.47±20% | 0.05 | 470 | 1000 | 1100 | | Request sample |
| PCW2012A-R82M | 0.82±20% | 0.09 | 360 | 800 | 800 | | Request sample |
| PCW2012A-1R0M | 1.0±20% | 0.13 | 320 | 700 | 700 | | Request sample |
| PCW2012A-1R5M | 1.5±20% | 0.18 | 260 | 550 | 550 | | Request sample |
| PCW2012A-2R0M | 2.0±20% | 0.29 | 230 | 450 | 450 | | Request sample |
| PCW2012B-2R2M | 2.2±20% | 0.50 | 360 | 900 | 400 | | Request sample |
Related Application
Notebooks
Motor Control
Tablets
Server
Telecom Base Station
DC-DC power for FPGA
Industrial Control Board
PV inverter
