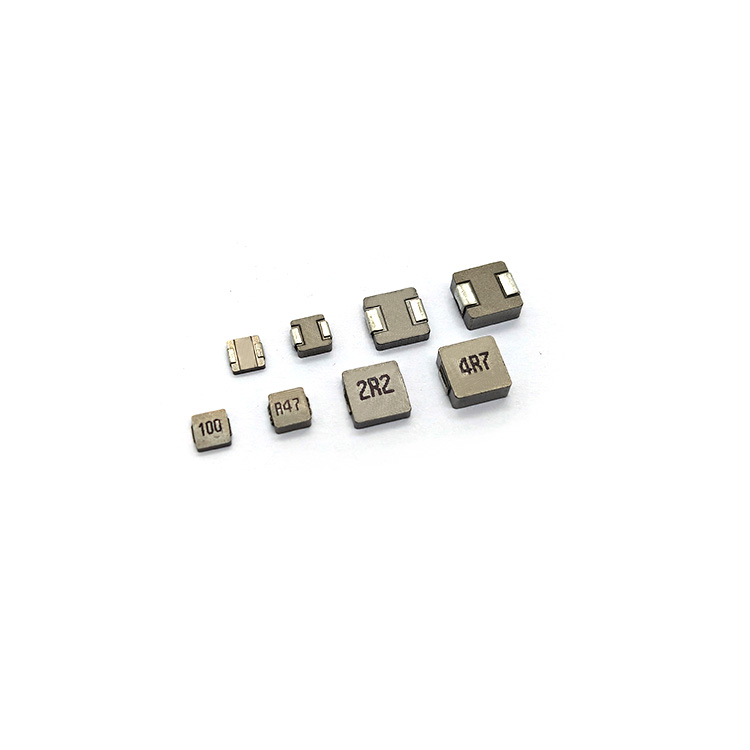

Inductors Coils integrally molded with metallic magnetic powder
PMH 04XX Series
Description

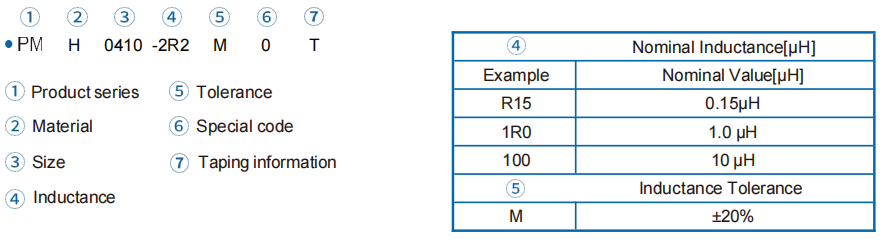

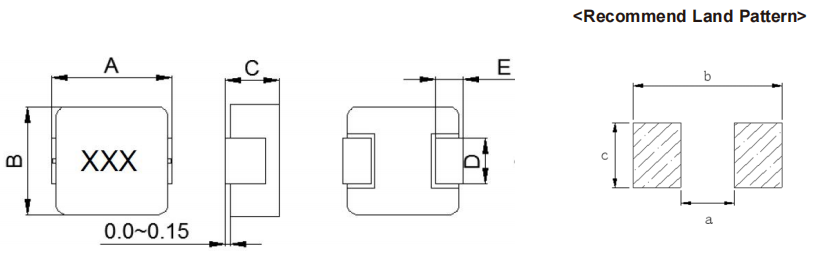

Shape & Dimension
| P/N | Inductance | DC Resistance | Saturation Current | Heating Rating Current | Status | Samples |
| L0 (μH) | DCR (mΩ) | Isat (A) | Irms (A) | |||
| ±20 %, 100 kHz, 1V | Max. | Typ. | Typ. |  | Request sample | |
| PMH0410-2R2M0T | 2.2 | 100 | 4.3 | 3.4 | | Request sample |
| PMH0410-4R7M0T | 4.7 | 160 | 2.5 | 2.6 | | Request sample |
| PMH0410-6R8M0T | 6.8 | 255 | 2.2 | 2 | | Request sample |
| PMH0410-100M0T | 10 | 336 | 1.8 | 1.5 | | Request sample |
| PMH0412-R15M0T | 0.15 | 9 | 15 | 7.5 | | Request sample |
| PMH0412-R22M0T | 0.22 | 11 | 11 | 7 | | Request sample |
| PMH0412-R33M0T | 0.33 | 19 | 8.4 | 6.5 | | Request sample |
| PMH0412-R47M0T | 0.47 | 21 | 6.8 | 6 | | Request sample |
| PMH0412-R68M0T | 0.68 | 36 | 6 | 4.7 | | Request sample |
| PMH0412-1R0M0T | 1 | 47 | 5.5 | 4.5 | | Request sample |
| PMH0412-1R5M0T | 1.5 | 75 | 4 | 3.25 | | Request sample |
| PMH0412-2R2M0T | 2.2 | 83.5 | 3 | 2.75 | | Request sample |
| PMH0412-4R7M0T | 4.7 | 195 | 2.2 | 1.8 | | Request sample |
| PMH0420-R10M0T | 0.1 | 4 | 22 | 13 | | Request sample |
| PMH0420-R22M0T | 0.22 | 6.6 | 12.5 | 9.5 | | Request sample |
| PMH0420-R33M0T | 0.33 | 11 | 12 | 10 | | Request sample |
| PMH0420-R47M0T | 0.47 | 14 | 9.5 | 7.5 | | Request sample |
| PMH0420-R56M0T | 0.56 | 16 | 9 | 7 | | Request sample |
| PMH0420-R68M0T | 0.68 | 18 | 8 | 7 | | Request sample |
| PMH0420-1R0M0T | 1 | 27 | 7 | 6 | | Request sample |
| PMH0420-1R2M0T | 1.2 | 27 | 6.5 | 6 | | Request sample |
| PMH0420-1R5M0T | 1.5 | 46 | 5.5 | 5 | | Request sample |
| PMH0420-2R2M0T | 2.2 | 58 | 5 | 4.5 | | Request sample |
| PMH0420-3R3M0T | 3.3 | 87 | 3.5 | 3.3 | | Request sample |
| PMH0420-4R7M0T | 4.7 | 105 | 3 | 2.8 | | Request sample |
| PMH0420-6R8M0T | 6.8 | 175 | 2.5 | 2.4 | | Request sample |
| PMH0420-100M0T | 10 | 282 | 2 | 1.6 | | Request sample |
