Usual Molding Power Inductor
PMS 04XX Series

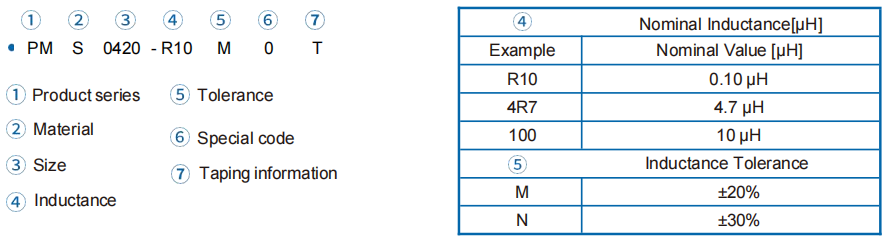

Description

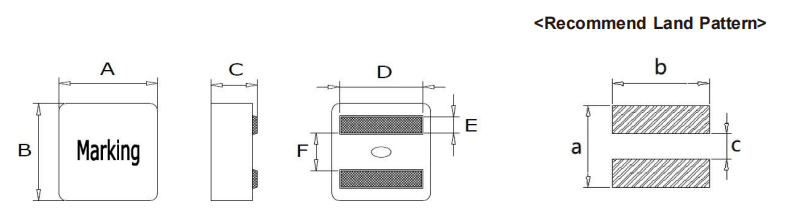

Shape & Dimension
| P/N | Inductance | DC Resistance | Saturation Current | Heating Rating Current | Status | Samples | ||||
| L0 (μH) | DCR (mΩ) | Isat (A) | Irms (A) | |||||||
| ±20 %, 100 kHz, 1V | Max. | Max. | Typ. | 20℃ rise | 40℃ rise |  | Request sample | |||
| PMS0420-R10M0T | 0.10 | 2.42 | 33.0 | 38.0 | 13.5 | 18.0 | | Request sample | ||
| PMS0420-R22M0T | 0.22 | 4.60 | 18.8 | 19.5 | 13.0 | 16.8 | | Request sample | ||
| PMS0420-R36M0T | 0.36 | 6.30 | 15.0 | 17.0 | 11.0 | 14.5 | | Request sample | ||
| PMS0420-R40M0T | 0.40 | 7.73 | 13.5 | 15.5 | 10.0 | 14.0 | | Request sample | ||
| PMS0420-R47M0T | 0.47 | 8.58 | 13.0 | 14.5 | 9.0 | 12.5 | | Request sample | ||
| PMS0420-R56M0T | 0.56 | 9.30 | 12.6 | 14.0 | 8.5 | 12.0 | | Request sample | ||
| PMS0420-R60M0T | 0.60 | 9.52 | 12.3 | 13.7 | 8.0 | 11.7 | | Request sample | ||
| PMS0420-R72M0T | 0.72 | 11.6 | 10.6 | 12.0 | 7.6 | 10.5 | | Request sample | ||
| PMS0420-1R0M0T | 1.0 | 14.6 | 8.80 | 9.60 | 6.8 | 9.6 | | Request sample | ||
| PMS0420-1R2M0T | 1.2 | 17.9 | 7.80 | 9.00 | 6.6 | 9.0 | | Request sample | ||
| PMS0420-1R5M0T | 1.5 | 23.5 | 7.40 | 8.00 | 5.8 | 7.6 | | Request sample | ||
| PMS0420-1R8M0T | 1.8 | 28.0 | 7.00 | 7.50 | 5.2 | 7.0 | | Request sample | ||
| PMS0420-2R2M0T | 2.2 | 38.7 | 6.00 | 6.50 | 4.6 | 5.6 | | Request sample | ||
| PMS0430-R47M0T | 0.47 | 7.26 | 15.0 | 17.0 | 10.0 | 14.0 | | Request sample | ||
| PMS0430-R90M0T | 0.90 | 10.1 | 9.0 | 10.0 | 8.2 | 11.2 | | Request sample | ||
| PMS0430-1R0M0T | 1.0 | 10.1 | 9.2 | 9.8 | 8.0 | 11.0 | | Request sample | ||
| PMS0430-1R2M0T | 1.2 | 11.5 | 8.7 | 9.2 | 7.8 | 9.8 | | Request sample | ||
| PMS0430-1R5M0T | 1.5 | 13.2 | 7.0 | 8.0 | 7.0 | 9.0 | | Request sample | ||
| PMS0430-2R2M0T | 2.2 | 22.6 | 6.1 | 7.0 | 6.0 | 7.8 | | Request sample | ||
| PMS0430-3R3M0T | 3.3 | 28.6 | 5.3 | 6.2 | 5.0 | 6.6 | | Request sample | ||
| PMS0430-4R7M0T | 4.7 | 44.1 | 4.0 | 4.5 | 3.9 | 5.1 | | Request sample | ||
| PMS0430-6R8M0T | 6.8 | 74.1 | 3.0 | 3.6 | 3.0 | 3.9 | | Request sample | ||
