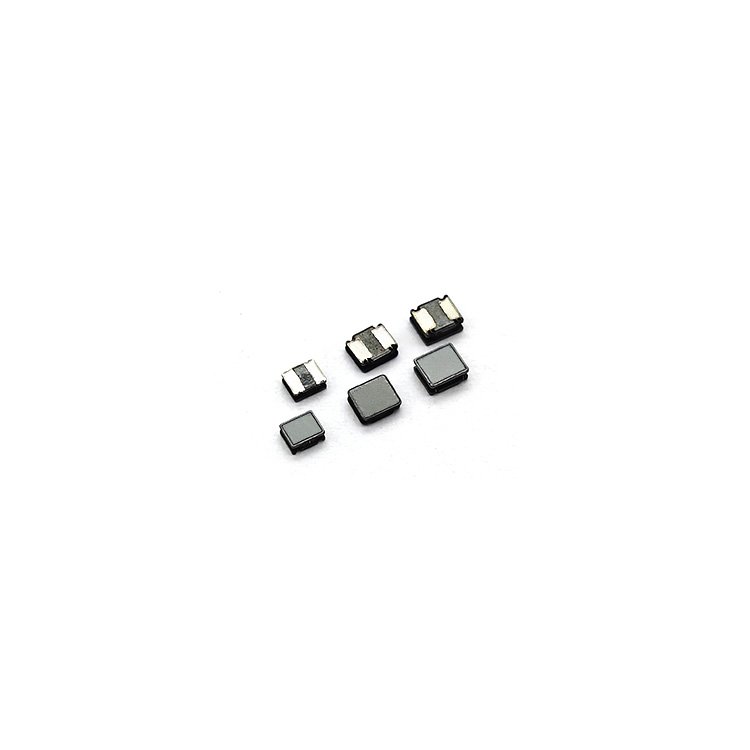

Mini Molding Power Inductor
PMS Series (Meet AEC-Q200 standard)

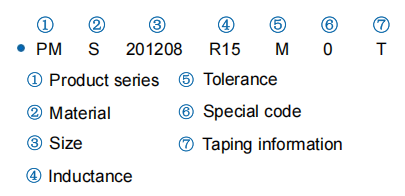

Description

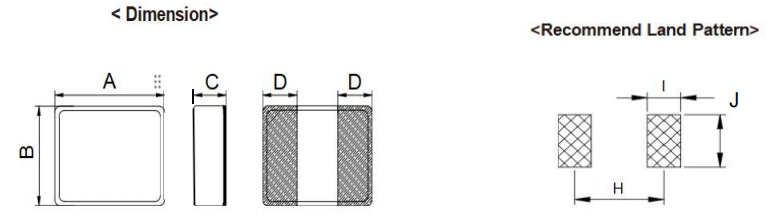

Shape & Dimension
| P/N | Inductance | DC Resistance | Saturation Current | Heating Rating Current | Samples | ||||
| L0 (μH) | DCR (mΩ) | Isat (A) | Irms (A) | ||||||
| 1MHz, 1V | Max. | Typ. | Max. | Typ. | Max. | Request sample | |||
| PMS141208-R24M0T | 0.24 | 27 | 6.0 | 5.7 | 4.1 | 3.7 | Request sample | ||
| PMS141208-R33M0T | 0.33 | 28 | 5.3 | 5.0 | 4.0 | 3.5 | Request sample | ||
| PMS141208-R47M0T | 0.47 | 35 | 4.6 | 4.2 | 3.8 | 3.3 | Request sample | ||
| PMS141208-1R0M0T | 1.0 | 87 | 3.0 | 2.5 | 3.0 | 2.5 | Request sample | ||
| PMS160808-R22M0T | 0.22 | 40 | 5.5 | 5.0 | 3.4 | 3.0 | Request sample | ||
| PMS160808-R24M0T | 0.24 | 41 | 5.3 | 4.8 | 3.3 | 2.9 | Request sample | ||
| PMS160808-R47M0T | 0.47 | 100 | 4.1 | 3.7 | 2.6 | 2.3 | Request sample | ||
| PMS160808-R56M0T | 0.56 | 110 | 4.0 | 3.5 | 2.2 | 1.9 | Request sample | ||
| PMS160808-R68M0T | 0.68 | 130 | 3.3 | 3.0 | 2.1 | 1.9 | Request sample | ||
| PMS160808-1R0M0T | 1.0 | 200 | 3.0 | 2.6 | 2.1 | 1.8 | Request sample | ||
| PMS160808-1R5M0T | 1.5 | 285 | 2.4 | 2.0 | 1.7 | 1.4 | Request sample | ||
| PMS160808-2R2M0T | 2.2 | 460 | 1.5 | 1.3 | 1.4 | 1.2 | Request sample | ||
| PMS160808-3R3M0T | 3.3 | 600 | 1.4 | 1.2 | 1.0 | 0.9 | Request sample | ||
| PMS160808-4R7M0T | 4.7 | 700 | 1.2 | 1.0 | 1.0 | 0.8 | Request sample | ||
| PMS160808-100M0T | 10 | 1600 | 0.8 | 0.7 | 0.5 | 0.45 | Request sample | ||
| PMS201208-R11M0T | 0.11 | 12 | 9.5 | 9.0 | 7.0 | 6.5 | Request sample | ||
| PMS201208-R15M0T | 0.15 | 13 | 7.5 | 7.0 | 6.8 | 6.3 | Request sample | ||
| PMS201208-R24M0T | 0.24 | 23 | 6.5 | 6.0 | 6.5 | 5.9 | Request sample | ||
| PMS201208-R33M0T | 0.33 | 45 | 5.2 | 4.8 | 4.3 | 4.0 | Request sample | ||
| PMS201208-R47M0T | 0.47 | 50 | 5.0 | 4.6 | 3.5 | 3.3 | Request sample | ||
| PMS201208-R68M0T | 0.68 | 60 | 4.2 | 3.7 | 3.7 | 3.3 | Request sample | ||
| PMS201208-1R0M0T | 1.0 | 70 | 4.0 | 3.5 | 3.3 | 2.9 | Request sample | ||
| PMS201208-1R5M0T | 1.5 | 135 | 3.0 | 2.5 | 2.2 | 1.9 | Request sample | ||
| PMS201208-2R2M0T | 2.2 | 185 | 2.6 | 2.3 | 2.2 | 1.8 | Request sample | ||
| PMS201208-3R3M0T | 3.3 | 300 | 1.9 | 1.6 | 1.8 | 1.5 | Request sample | ||
| PMS201208-4R7M0T | 4.7 | 325 | 1.6 | 1.4 | 1.7 | 1.5 | Request sample | ||
| PMS201610-R10M0T | 0.1 | 12 | 9.0 | 8.5 | 8.5 | 8.0 | Request sample | ||
| PMS201610-R15M0T | 0.15 | 14 | 8.7 | 8.1 | 7.6 | 7.1 | Request sample | ||
| PMS201610-R22M0T | 0.22 | 18 | 8.2 | 7.6 | 7.0 | 6.4 | Request sample | ||
| PMS201610-R24M0T | 0.24 | 19 | 8.0 | 7.5 | 6.8 | 6.3 | Request sample | ||
| PMS201610-R33M0T | 0.33 | 22 | 7.0 | 6.6 | 5.7 | 5.4 | Request sample | ||
| PMS201610-R47M0T | 0.47 | 25 | 6.3 | 5.6 | 5.5 | 5.1 | Request sample | ||
| PMS201610-R68M0T | 0.68 | 32 | 5.2 | 4.8 | 4.6 | 4.4 | Request sample | ||
| PMS201610-1R0M0T | 1.0 | 43 | 4.6 | 4.3 | 4.5 | 4.2 | Request sample | ||
| PMS201610-1R5M0T | 1.5 | 100 | 3.3 | 3.0 | 2.6 | 2.3 | Request sample | ||
| PMS201610-2R2M0T | 2.2 | 130 | 3.0 | 2.9 | 2.5 | 2.2 | Request sample | ||
| PMS201610-3R3M0T | 3.3 | 170 | 2.4 | 2.0 | 1.7 | 1.6 | Request sample | ||
| PMS201610-4R7M0T | 4.7 | 220 | 2.0 | 1.9 | 1.6 | 1.5 | Request sample | ||
| PMS201610-100M0T | 10 | 580 | 1.4 | 1.1 | 1.0 | 0.7 | Request sample | ||
| PMS201612-R10M0T | 0.1 | 6 | 13 | 12 | 12 | 11 | Request sample | ||
| PMS201612-R15M0T | 0.15 | 10 | 12 | 10.5 | 10 | 9.0 | Request sample | ||
| PMS201612-R24M0T | 0.24 | 11 | 9.2 | 8.7 | 9.1 | 8.6 | Request sample | ||
| PMS201612-R33M0T | 0.33 | 15 | 7.8 | 7.3 | 7.7 | 7.2 | Request sample | ||
| PMS201612-R47M0T | 0.47 | 17 | 6.7 | 6.0 | 6.7 | 6.0 | Request sample | ||
| PMS201612-R68M0T | 0.68 | 23 | 6.0 | 5.3 | 6.0 | 5.3 | Request sample | ||
| PMS201612-1R0M0T | 1.0 | 36 | 5.0 | 4.5 | 5.0 | 4.5 | Request sample | ||
| PMS201612-1R5M0T | 1.5 | 50 | 4.0 | 3.5 | 4.0 | 3.5 | Request sample | ||
| PMS201612-2R2M0T | 2.2 | 90 | 3.1 | 2.7 | 3.3 | 2.9 | Request sample | ||
| PMS201612-3R3M0T | 3.3 | 165 | 2.7 | 2.3 | 2.4 | 2.0 | Request sample | ||
| PMS252010-R22M0T | 0.22 | 17 | 8.6 | 7.9 | 6.8 | 6.5 | Request sample | ||
| PMS252010-R24M0T | 0.24 | 17.5 | 8.5 | 7.8 | 6.7 | 6.4 | Request sample | ||
| PMS252010-R33M0T | 0.33 | 19 | 7.6 | 7.2 | 6.5 | 6.2 | Request sample | ||
| PMS252010-R47M0T | 0.47 | 22 | 6.9 | 6.5 | 6.1 | 5.6 | Request sample | ||
| PMS252010-R68M0T | 0.68 | 27 | 5.9 | 5.5 | 5.6 | 5.0 | Request sample | ||
| PMS252010-1R0M0T | 1.0 | 30 | 5.3 | 4.8 | 4.5 | 4.1 | Request sample | ||
| PMS252010-1R5M0T | 1.5 | 55 | 4.3 | 3.9 | 3.4 | 3.0 | Request sample | ||
| PMS252010-2R2M0T | 2.2 | 70 | 3.3 | 3.0 | 2.4 | 2.1 | Request sample | ||
| PMS252010-3R3M0T | 3.3 | 100 | 2.8 | 2.5 | 2.5 | 2.1 | Request sample | ||
| PMS252010-4R7M0T | 4.7 | 180 | 2.6 | 2.0 | 2.0 | 1.6 | Request sample | ||
| PMS252010-6R8M0T | 6.8 | 320 | 2.4 | 1.9 | 1.6 | 1.4 | Request sample | ||
| PMS252010-100M0T | 10 | 561 | 1.55 | 1.4 | 1.05 | 0.95 | Request sample | ||
| PMS252010-220M0T | 22 | 1300 | 1.1 | 0.9 | 0.85 | 0.6 | Request sample | ||
| PMS252012-R10M0T | 0.1 | 10 | 13.5 | 12.5 | 12 | 10.5 | Request sample | ||
| PMS252012-R15M0T | 0.15 | 11 | 13.0 | 12.0 | 11.5 | 10.0 | Request sample | ||
| PMS252012-R22M0T | 0.22 | 14 | 9.6 | 9.0 | 8.2 | 7.6 | Request sample | ||
| PMS252012-R24M0T | 0.24 | 15 | 9.3 | 8.8 | 8.0 | 7.5 | Request sample | ||
| PMS252012-R33M0T | 0.33 | 17 | 8.3 | 7.8 | 6.8 | 6.4 | Request sample | ||
| PMS252012-R47M0T | 0.47 | 19 | 7.5 | 7.0 | 6.5 | 6.0 | Request sample | ||
| PMS252012-R68M0T | 0.68 | 23 | 6.5 | 6.0 | 6.3 | 5.5 | Request sample | ||
| PMS252012-R82M0T | 0.82 | 24 | 6.5 | 5.8 | 5.8 | 5.3 | Request sample | ||
| PMS252012-1R0M0T | 1.0 | 42 | 5.6 | 5.0 | 4.0 | 3.6 | Request sample | ||
| PMS252012-1R2M0T | 1.2 | 45 | 4.5 | 4.1 | 3.8 | 3.4 | Request sample | ||
| PMS252012-1R5M0T | 1.5 | 50 | 4.5 | 4.1 | 3.7 | 3.2 | Request sample | ||
| PMS252012-2R2M0T | 2.2 | 65 | 3.8 | 3.3 | 3.0 | 2.7 | Request sample | ||
| PMS252012-3R3M0T | 3.3 | 97 | 3.0 | 2.7 | 2.3 | 1.8 | Request sample | ||
| PMS252012-4R7M0T | 4.7 | 170 | 2.4 | 2.1 | 1.8 | 1.5 | Request sample | ||
| PMS252012-6R8M0T | 6.8 | 270 | 2.0 | 1.7 | 1.6 | 1.4 | Request sample | ||
| PMS252012-100M0T | 10 | 400 | 1.6 | 1.45 | 1.2 | 1.05 | Request sample | ||
| PMS303020-R15M0T | 0.15 | 5.0 | 18.0 | 17.0 | 13.0 | 12.0 | Request sample | ||
| PMS303020-R33M0T | 0.33 | 9.0 | 17.0 | 15.0 | 10.0 | 9.0 | Request sample | ||
| PMS303020-R50M0T | 0.5 | 12.0 | 15.0 | 13.0 | 9.0 | 8.0 | Request sample | ||
| PMS303020-R68M0T | 0.68 | 16.0 | 13.0 | 11.0 | 8.5 | 7.8 | Request sample | ||
| PMS303020-1R0M0T | 1.0 | 20.0 | 8.0 | 7.5 | 6.5 | 6.0 | Request sample | ||
| PMS303020-1R5M0T | 1.5 | 25.0 | 7.0 | 6.5 | 6.3 | 5.8 | Request sample | ||
| PMS303020-2R2M0T | 2.2 | 45.0 | 6.0 | 5.5 | 4.7 | 4.3 | Request sample | ||
| PMS303020-3R3M0T | 3.3 | 63.0 | 5.9 | 5.4 | 4.5 | 4.0 | Request sample | ||
| PMS303020-4R7M0T | 4.7 | 73.0 | 4.8 | 4.0 | 4.2 | 3.8 | Request sample | ||
| PMS303020-6R8M0T | 6.8 | 135 | 4.5 | 3.8 | 3.2 | 3.0 | Request sample | ||
| PMS303020-100M0T | 10 | 160 | 3.8 | 3.3 | 2.5 | 2.2 | Request sample | ||
| PMS303020-150M0T | 15 | 260 | 2.6 | 2.2 | 1.8 | 1.5 | Request sample | ||
| PMS322510-R33M0T | 0.33 | 15 | 8.3 | 7.8 | 8.3 | 7.8 | Request sample | ||
| PMS322510-R47M0T | 0.47 | 22 | 8.3 | 7.6 | 6.4 | 5.9 | Request sample | ||
| PMS322510-R68M0T | 0.68 | 28 | 7.5 | 7.0 | 6.2 | 5.7 | Request sample | ||
| PMS322510-1R0M0T | 1.0 | 30 | 6.0 | 5.3 | 5.4 | 4.9 | Request sample | ||
| PMS322510-1R5M0T | 1.5 | 42 | 5.0 | 4.4 | 4.0 | 3.6 | Request sample | ||
| PMS322510-2R2M0T | 2.2 | 66 | 4.0 | 3.5 | 3.7 | 3.4 | Request sample | ||
| PMS322510-3R3M0T | 3.3 | 120 | 3.7 | 3.3 | 2.7 | 2.3 | Request sample | ||
| PMS322510-4R7M0T | 4.7 | 140 | 2.8 | 2.5 | 2.3 | 1.9 | Request sample | ||
| PMS322510-6R8M0T | 6.8 | 320 | 2.4 | 2.0 | 1.9 | 1.6 | Request sample | ||
| PMS322510-100M0T | 10 | 365 | 2.2 | 1.8 | 2.2 | 1.8 | Request sample | ||
| PMS322512-R10M0T | 0.10 | 7.0 | 18.0 | 16.5 | 12.0 | 11.0 | Request sample | ||
| PMS322512-R22M0T | 0.22 | 10 | 11.5 | 11.0 | 9.2 | 8.7 | Request sample | ||
| PMS322512-R24M0T | 0.24 | 12 | 11.0 | 10.5 | 9.0 | 8.5 | Request sample | ||
| PMS322512-R33M0T | 0.33 | 14 | 10.0 | 9.5 | 8.4 | 8.1 | Request sample | ||
| PMS322512-R47M0T | 0.47 | 19 | 8.6 | 8.2 | 7.5 | 7.2 | Request sample | ||
| PMS322512-R68M0T | 0.68 | 23 | 8.1 | 7.7 | 7.3 | 6.8 | Request sample | ||
| PMS322512-1R0M0T | 1.0 | 30 | 6.6 | 5.8 | 5.3 | 4.8 | Request sample | ||
| PMS322512-1R5M0T | 1.5 | 44 | 5.1 | 4.7 | 4.7 | 4.3 | Request sample | ||
| PMS322512-2R2M0T | 2.2 | 70 | 4.6 | 4.2 | 3.6 | 3.0 | Request sample | ||
| PMS322512-3R3M0T | 3.3 | 95 | 3.7 | 3.2 | 2.9 | 2.5 | Request sample | ||
| PMS322512-4R7M0T | 4.7 | 135 | 2.9 | 2.6 | 2.3 | 2.0 | Request sample | ||
| PMS322512-6R8M0T | 6.8 | 210 | 2.8 | 2.4 | 2.1 | 1.9 | Request sample | ||
| PMS322512-100M0T | 10 | 230 | 2.3 | 1.9 | 2.0 | 1.8 | Request sample | ||
| PMS322520-R33M0T | 0.33 | 9.0 | 15.5 | 14.0 | 9.5 | 9.0 | Request sample | ||
| PMS322520-R47M0T | 0.47 | 10.5 | 15.0 | 13.0 | 9.5 | 8.5 | Request sample | ||
| PMS322520-R68M0T | 0.68 | 14.5 | 13.0 | 11.0 | 9.0 | 8.0 | Request sample | ||
| PMS322520-1R0M0T | 1.0 | 17.5 | 9.0 | 8.3 | 8.2 | 7.5 | Request sample | ||
| PMS322520-1R5M0T | 1.5 | 25 | 6.8 | 6.0 | 6.5 | 6.0 | Request sample | ||
| PMS322520-2R2M0T | 2.2 | 43 | 6.5 | 5.5 | 5.4 | 4.8 | Request sample | ||
| PMS322520-3R3M0T | 3.3 | 60 | 4.5 | 3.5 | 4.5 | 4.0 | Request sample | ||
| PMS322520-4R7M0T | 4.7 | 94 | 4.0 | 3.0 | 3.5 | 3.0 | Request sample | ||
| PMS322520-6R8M0T | 6.8 | 125 | 3.8 | 2.9 | 2.8 | 2.3 | Request sample | ||
| PMS404012-R47M0T | 0.47 | 14.0 | 12.0 | 11.5 | 9.0 | 8.5 | Request sample | ||
| PMS404012-R68M0T | 0.68 | 18.0 | 10.0 | 9.0 | 8.5 | 7.5 | Request sample | ||
| PMS404012-1R0M0T | 1.0 | 25.0 | 11.0 | 10.0 | 6.3 | 5.5 | Request sample | ||
| PMS404012-1R5M0T | 1.5 | 34.5 | 8.0 | 7.0 | 6.0 | 5.0 | Request sample | ||
| PMS404012-2R2M0T | 2.2 | 55.0 | 6.5 | 6.0 | 5.0 | 4.5 | Request sample | ||
| PMS404012-3R3M0T | 3.3 | 80.0 | 5.5 | 5.0 | 4.5 | 4.0 | Request sample | ||
| PMS404012-4R7M0T | 4.7 | 110 | 5.0 | 4.5 | 3.5 | 3.0 | Request sample | ||
| PMS404012-5R6M0T | 5.6 | 140 | 4.5 | 4.0 | 3.0 | 2.5 | Request sample | ||
| PMS404012-6R8M0T | 6.8 | 160 | 3.8 | 3.5 | 2.8 | 2.3 | Request sample | ||
| PMS404012-100M0T | 10 | 235 | 2.8 | 2.5 | 2.5 | 2.0 | Request sample | ||
