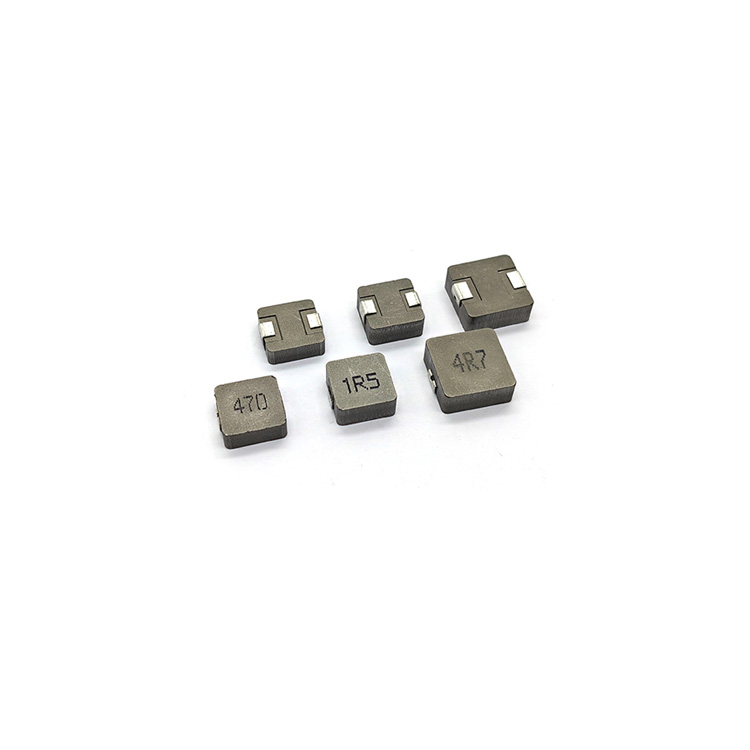

Carbonyl Molding Power Inductor
PMT 0420 Series
Description

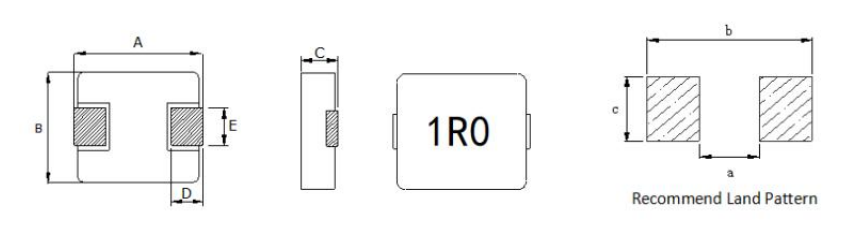

Shape & Dimension
| P/N | Inductance | DC Resistance | Saturation Current | Heating Rating Current | Status | Samples |
| L0 (μH) | DCR (mΩ) | Isat (A) | Irms (A) | |||
| 100 kHz, 1V | Max. | Typ. | Typ. |  | Request sample | |
| PMT0420-R33M0T | 0.33 | 8.6 | 18 | 10 | | Request sample |
| PMT0420-R47M0T | 0.47 | 14 | 12 | 8 | | Request sample |
| PMT0420-R68M0T | 0.68 | 19 | 10 | 7 | | Request sample |
| PMT0420-1R0M0T | 1.0 | 27 | 8.5 | 5 | | Request sample |
| PMT0420-1R5M0T | 1.5 | 42 | 7 | 4.5 | | Request sample |
| PMT0420-2R2M0T | 2.2 | 61 | 6 | 4 | | Request sample |
| PMT0420-3R3M0T | 3.3 | 76 | 4 | 3.5 | | Request sample |
| PMT0420-4R7M0T | 4.7 | 105 | 3.5 | 2.6 | | Request sample |
| PMT0420-6R8M0T | 6.8 | 172 | 2.8 | 2.1 | | Request sample |
| PMT0420-100M0T | 10 | 243 | 2.3 | 1.8 | | Request sample |
Related Application
Notebooks
Motor Control
Tablets
Server
Telecom Base Station
DC-DC power for FPGA
Industrial Control Board
PV inverter
