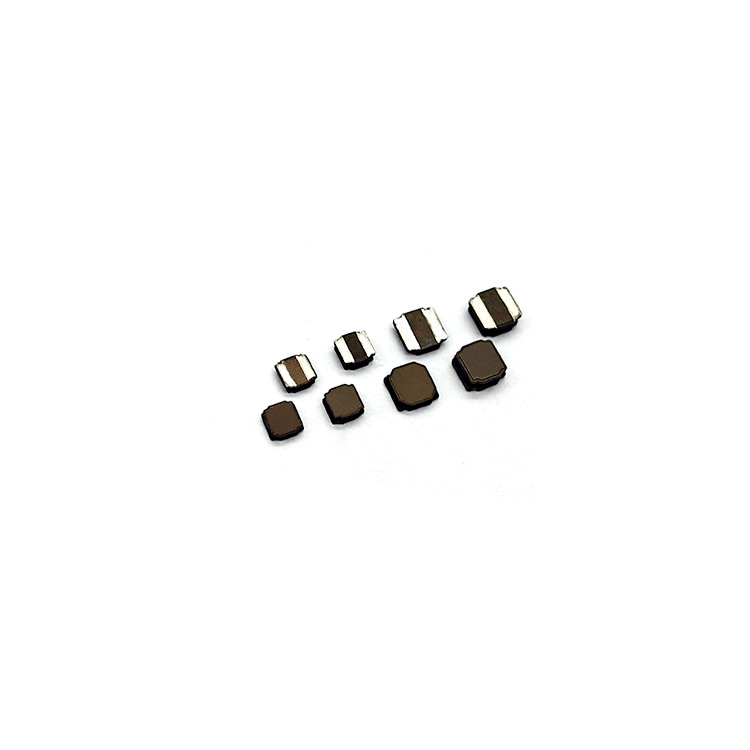

Metal Material Power Inductor
PWH Series
Description

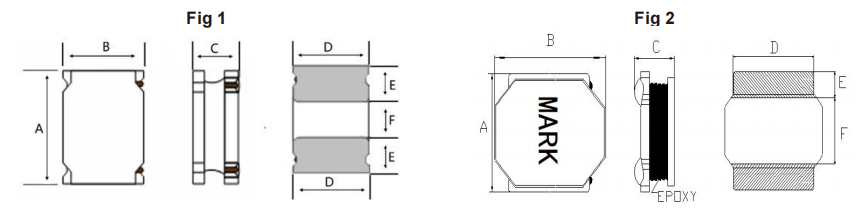

Shape & Dimension

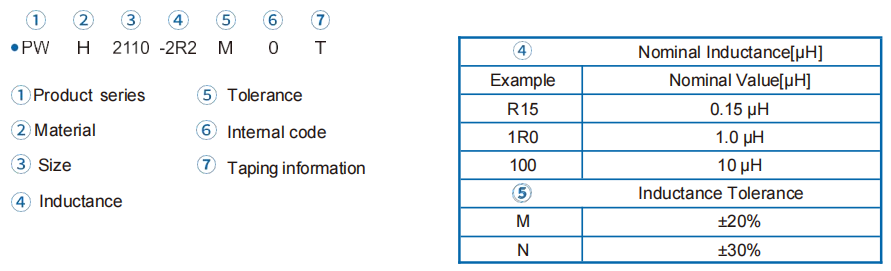

| P/N | Inductance | DC Resistance | Saturation Current | Heating Rating Current | Samples |
| L0 (μH) | DCR (mΩ) | Isat (A) | Irms (A) ΔT≦40℃ | ||
| 1MHz, 1V | Max. | Typ. | Typ. | Request sample | |
| PWH2110-R24N0T | 0.24 | 40 | 4.5 | 3.15 | Request sample |
| PWH2110-R33N0T | 0.33 | 50 | 4.2 | 3.1 | Request sample |
| PWH2110-R47N0T | 0.47 | 55 | 4.0 | 3.0 | Request sample |
| PWH2110-R68N0T | 0.68 | 65 | 3.5 | 2.8 | Request sample |
| PWH2110-1R0M0T | 1.0 | 96 | 3.35 | 2.2 | Request sample |
| PWH2110-1R5M0T | 1.5 | 130 | 1.95 | 1.8 | Request sample |
| PWH2110-2R2M0T | 2.2 | 195 | 1.9 | 1.5 | Request sample |
| PWH2110-3R3M0T | 3.3 | 310 | 1.4 | 1.2 | Request sample |
| PWH2110-4R7M0T | 4.7 | 440 | 1.2 | 1.00 | Request sample |
| PWH2110-6R8M0T | 6.8 | 540 | 0.9 | 0.85 | Request sample |
| PWH2110-100M0T | 10 | 826 | 0.8 | 0.7 | Request sample |
| PWH2H10-R24N0T | 0.24 | 26 | 5.0 | 4.4 | Request sample |
| PWH2H10-R33N0T | 0.33 | 35 | 4.8 | 4 | Request sample |
| PWH2H10-R47N0T | 0.47 | 45 | 4.4 | 3.4 | Request sample |
| PWH2H10-R56N0T | 0.56 | 48 | 3.8 | 3.1 | Request sample |
| PWH2H10-R68N0T | 0.68 | 59 | 3.2 | 3 | Request sample |
| PWH2H10-1R0M0T | 1.0 | 76 | 3.1 | 2.6 | Request sample |
| PWH2H10-1R5M0T | 1.5 | 106 | 2.6 | 2.0 | Request sample |
| PWH2H10-2R2M0T | 2.2 | 155 | 1.9 | 1.8 | Request sample |
| PWH2H10-3R3M0T | 3.3 | 235 | 1.6 | 1.5 | Request sample |
| PWH2H10-4R7M0T | 4.7 | 276 | 1.3 | 1.2 | Request sample |
| PWH2H10-6R8M0T | 6.8 | 430 | 1.1 | 1.0 | Request sample |
| PWH2H10-100M0T | 10 | 520 | 0.9 | 0.85 | Request sample |
| PWH2H12-R24N0T | 0.24 | 30 | 6.5 | 4.5 | Request sample |
| PWH2H12-R33N0T | 0.33 | 36 | 5.3 | 3.2 | Request sample |
| PWH2H12-R47N0T | 0.47 | 40 | 4.9 | 3.1 | Request sample |
| PWH2H12-R68N0T | 0.68 | 50 | 3.85 | 3 | Request sample |
| PWH2H12-1R0M0T | 1.0 | 60 | 3.8 | 2.9 | Request sample |
| PWH2H12-1R5M0T | 1.5 | 86 | 2.9 | 2.1 | Request sample |
| PWH2H12-2R2M0T | 2.2 | 115 | 2.6 | 2 | Request sample |
| PWH2H12-3R3M0T | 3.3 | 190 | 1.9 | 1.7 | Request sample |
| PWH2H12-4R7M0T | 4.7 | 235 | 1.8 | 1.5 | Request sample |
| PWH2H12-6R8M0T | 6.8 | 380 | 1.15 | 1.1 | Request sample |
| PWH2H12-100M0T | 10 | 480 | 1.1 | 1.0 | Request sample |
| PWH2H12-220M0T | 22 | 1080 | 0.7 | 0.65 | Request sample |
| PWH3012-R33N1T | 0.33 | 27 | 7.2 | 4.1 | Request sample |
| PWH3012-R47N1T | 0.47 | 33 | 6.1 | 4.0 | Request sample |
| PWH3012-R68N1T | 0.68 | 40 | 5.8 | 3.8 | Request sample |
| PWH3012-1R0M1T | 1.0 | 54 | 4.0 | 2.8 | Request sample |
| PWH3012-1R5M1T | 1.5 | 74 | 3.2 | 2.0 | Request sample |
| PWH3012-2R2M1T | 2.2 | 108 | 2.2 | 1.9 | Request sample |
| PWH3012-3R3M1T | 3.3 | 150 | 1.7 | 1.6 | Request sample |
| PWH3012-4R7M1T | 4.7 | 230 | 1.5 | 1.4 | Request sample |
Related Application
Notebooks
Motor Control
Tablets
Server
Telecom Base Station
DC-DC power for FPGA
Industrial Control Board
PV inverter
Documents
All
Data sheet
