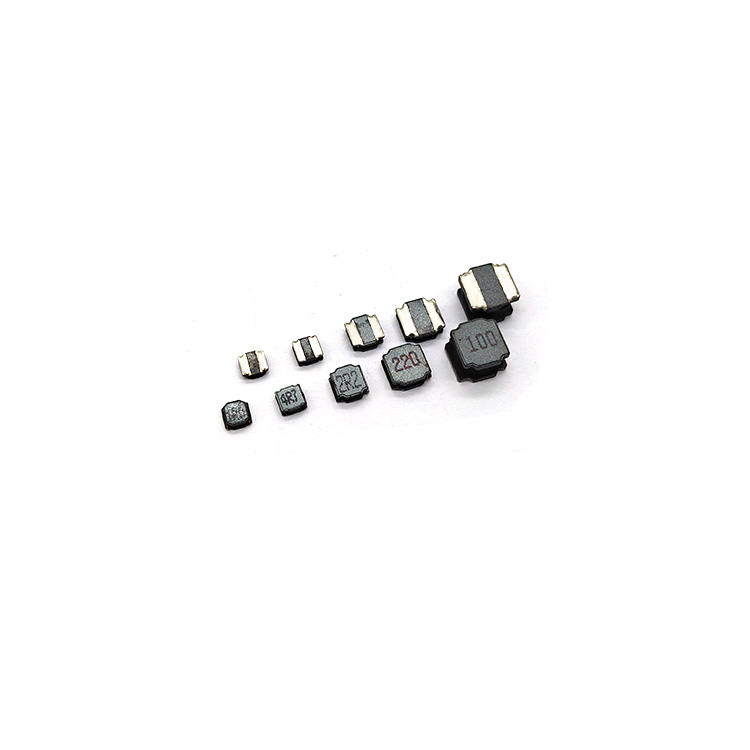

Magnetic Nickel-Zinc Power Inductor
PWR 2016 Series

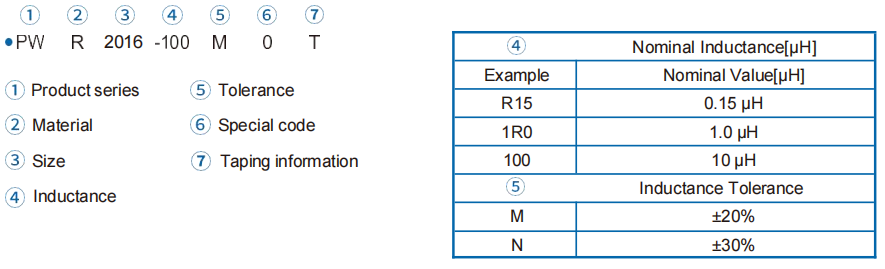

Description
Shape & Dimension
| P/N | Inductance | DC Resistance | Saturation Current | Status | Samples |
| L0 (μH) | DCR (mΩ) | Isat (A) | |||
| 1MHz, 0.1V | Max. | Typ. |  | Request sample | |
| PWR2016-R47N0T | 0.47 | 53 | 2.70 | | Request sample |
| PWR2016-R68N0T | 0.68 | 82 | 2.00 | | Request sample |
| PWR2016-1R0M0T | 1.0 | 115 | 2.00 | | Request sample |
| PWR2016-1R5M0T | 1.5 | 156 | 1.70 | | Request sample |
| PWR2016-2R2M0T | 2.2 | 174 | 1.26 | | Request sample |
| PWR2016-3R3M0T | 3.3 | 294 | 1.05 | | Request sample |
| PWR2016-4R7M0T | 4.7 | 432 | 0.85 | | Request sample |
| PWR2016-6R8M0T | 6.8 | 620 | 0.72 | | Request sample |
| PWR2016-100M0T | 10 | 864 | 0.60 | | Request sample |
| PWR2016-150M0T | 15 | 1680 | 0.55 | | Request sample |
| PWR2016-180M0T | 18 | 1700 | 0.40 | | Request sample |
| PWR2016-220M0T | 22 | 2000 | 0.38 | | Request sample |
Related Application
Notebooks
Motor Control
Tablets
Server
Telecom Base Station
DC-DC power for FPGA
Industrial Control Board
PV inverter
