130V Series PPTC Resettable Fuses

  • RoHS Compliant & Lead-free
  • Radial leaded Devices
  • Cured,flame retardant epoxy polymer insulating material meets UL94V-0 requirements
Availability:
Quantity:

The resistance of PTCs rises as the temperature rises. With this feature, the value change of resistance is not obvious when the safe current passes, the resistance value changes drastically when abnormal current passes, this reaches the purpose of limiting abnormal current, the resistance value will “reset” automatically when the abnormality is eliminated and temperature returns to a safe level. It is an ideal choice for equipment with frequent abnormal over-current flowing area. PPTC often used in consumer electronics, power lines, telecommunications, I/O connectors, process control and medical equipment.



Specifications

● Certification: RoHS, Lead Free

● Packaging: in box

● Radial leaded Devices

● Cured,flame retardant epoxy polymer insulating material meets UL94V-0 requirements


Test

Conditions

Resistance change

Passive aging

+85℃,1000hrs

±8% typical

Humidity aging

+85℃,85%R.H.1000hrs

±8% typical

Thermal shock

+125℃ to -55℃,10times

±12% typical

Resistance to solvent

MIL-STD-202,Method 215

No change

Vibration

MIL-STD-202,Method 201

No change

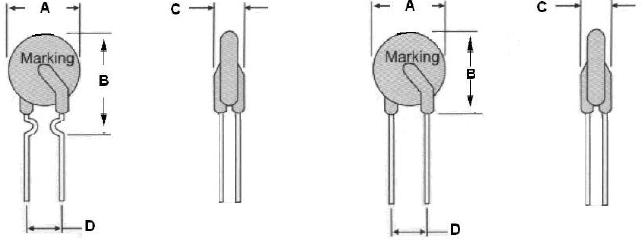

Model

Dimensions(mm)

Lead material

Shape

A(max)

B(max)

C(max)

D(typ)

Tinned matel(mm)

Fig

130V-010

7.4

12.7

3.8

5.1

22AWG/Φ0.6

1

130V-015

7.4

13.0

3.8

5.1

22AWG/Φ0.6

1

130V-017

7.4

13.5

3.8

5.1

22AWG/Φ0.6

1

130V-020

7.6

13.5

3.8

5.1

22AWG/Φ0.6

1

130V-025

7.6

13.5

3.8

5.1

22AWG/Φ0.6

1

130V-030

8.0

14.0

3.8

5.1

22AWG/Φ0.6

1

130V-040

9.4

15.0

3.8

5.1

22AWG/Φ0.6

1

130V-050

10.2

15.2

3.8

5.1

22AWG/Φ0.6

1

130V-065

12.8

18.0

3.8

5.1

22AWG/Φ0.6

1

130V-075

12.8

18.0

3.8

5.1

22AWG/Φ0.6

1

130V-090

14.5

19.6

3.8

5.1

20AWG/Φ0.8

2

130V-110

16.3

21.3

3.8

5.1

20AWG/Φ0.8

2

130V-135

17.0

22.0

3.8

5.1

20AWG/Φ0.8

2

130V-160

20

25

3.8

5.1

20AWG/Φ0.8

2

130V-185

22

23

3.8

5.1

20AWG/Φ0.8

2

130V-200

25

27

3.8

10.2

20AWG/Φ0.8

2

130V-250

27

32

3.8

10.2

20AWG/Φ0.8

2


Name IH (A) IT (A) IMAX (A) VMAX (V) Trip (A) Trip (S) Rmin (Ω) Rmax (Ω) R1max(Ω)
130V-006 0.06 0.12 3 130 0.3 <10s 5 18 36
130V-010 0.1 0.2 3 130 0.5 <6s 2.5 9 20
130V-015 0.15 0.3 3 130 0.75 <5.5s 2.5 7.5 18
130V-017 0.17 0.34 3 130 0.85 <5.2s 1.5 7 16
130V-020 0.2 0.4 3 130 1 <5s 1.9 4 12
130V-025 0.25 0.5 3 130 1.25 <4.8s 1.45 3.5 6
130V-030 0.3 0.6 3 130 1.5 <4.5s 1 3 5
130V-035 0.35 0.7 10 130 1.75 <4.8s 1 2.8 5
130V-040 0.4 0.8 3 130 2 <4.5s 0.75 2 4
130V-045 0.45 0.9 10 130 2.25 <5s 0.6 1.9 3.6
130V-050 0.5 1 3 130 2.5 <5s 0.5 1.5 3.5
130V-065 0.65 1.3 10 130 3.25 <5.2s 0.45 1 2
130V-075 0.75 1.5 10 130 3.75 <5.5s 0.4 0.9 2
130V-090 0.9 1.8 10 130 4.5 <5.8s 0.3 0.7 1.5
130V-110 1.1 2.2 10 130 5.5 <6.3s 0.2 0.65 1.2
130V-135 1.35 2.7 10 130 6.75 <7.5s 0.15 0.6 0.9
130V-160 1.6 3.2 10 130 8 <8s 0.1 0.5 1
130V-185 1.85 3.7 10 130 9.25 <9s 0.1 0.4 0.8
130V-200 2 4 10 130 10 <10s 0.1 0.3 0.5
130V-250 2.5 5 10 130 12.5 <12s 0.05 0.25 0.45
130V-300 3 6 10 130 15 <15s 0.05 0.25 0.4
