Thyristor TA Series

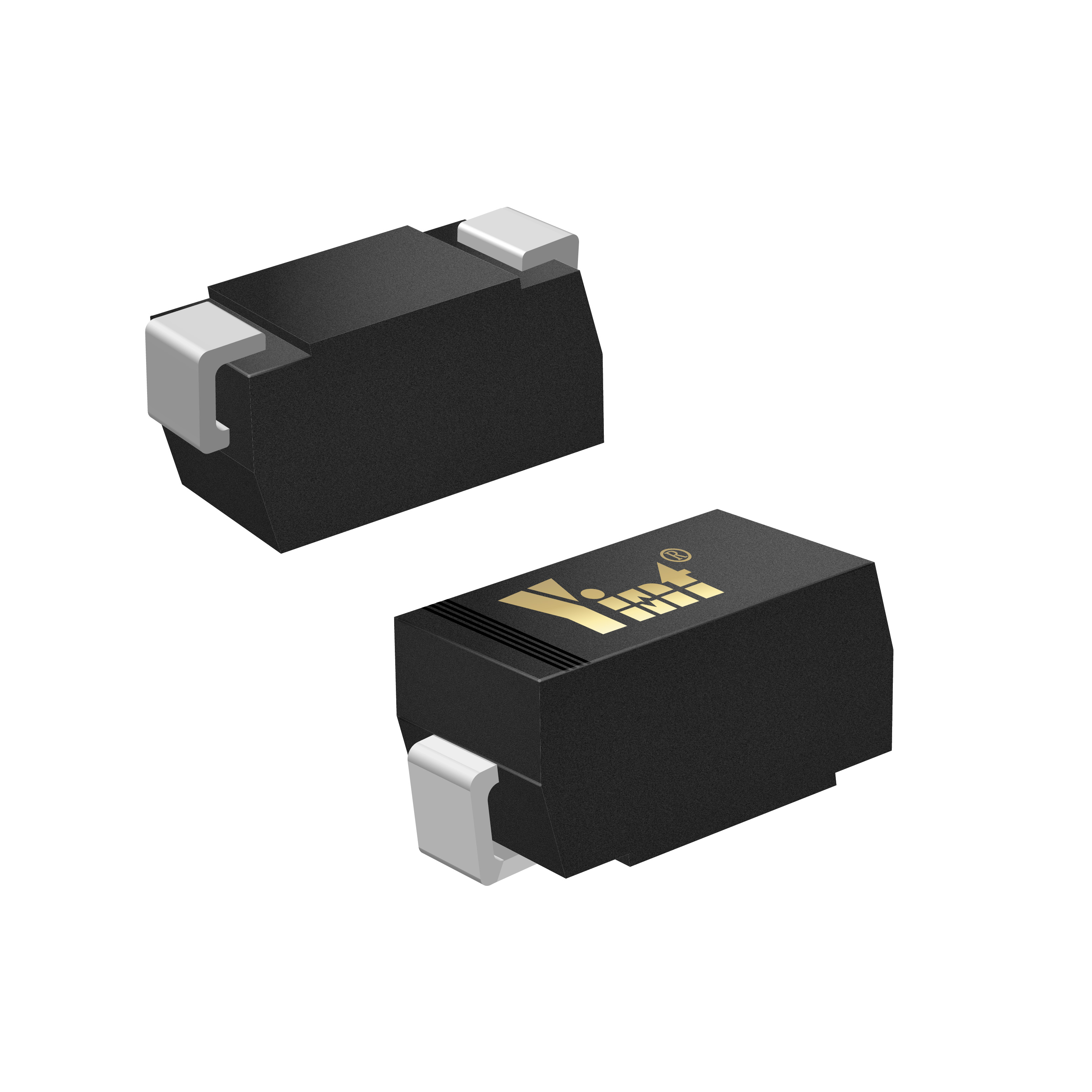

overvoltage protection device in DO-214AC package
Description
Features

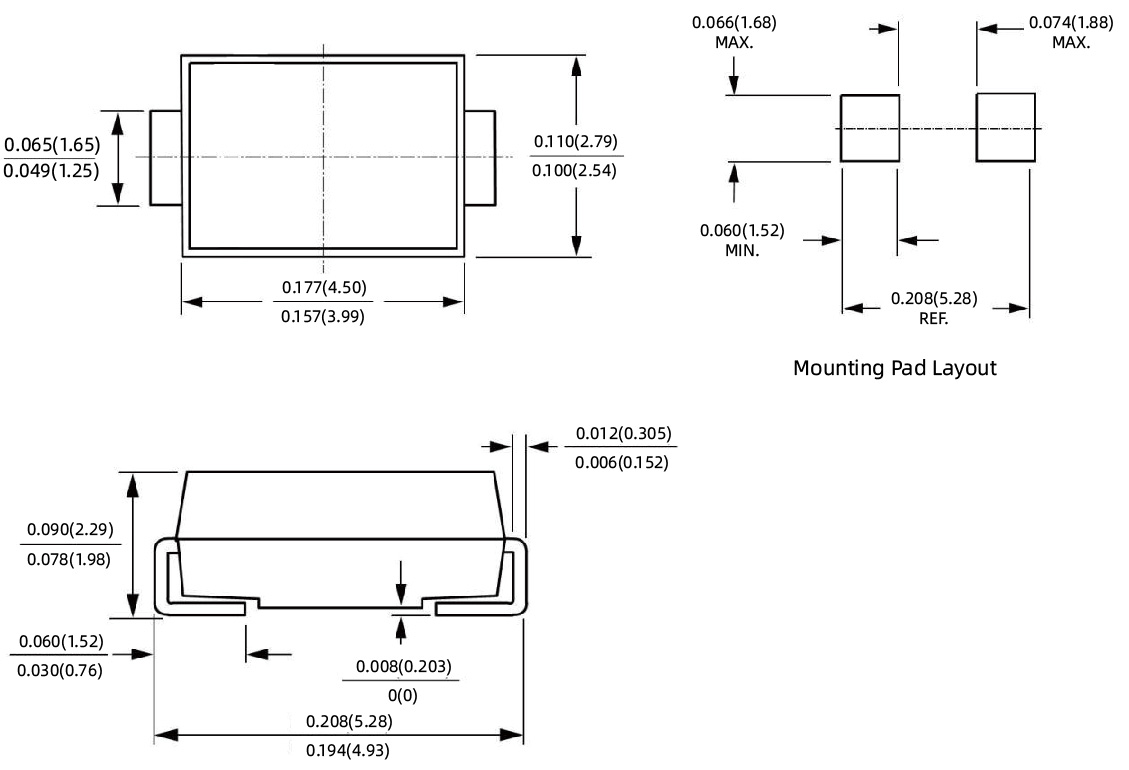

Package
Surge Ratings
| Series | Ipp | Ipp | Ipp | Ipp | Ipp | ITSM | Di/Dt |
| 2/10μS Amps | 8/20μS Amps | 10/160μS Amps | 10/560μS Amps | 10/1000μS Amps | 60HZ Amps | Amps /μS | |
| TA | 150 | 150 | 90 | 50 | 45 | 20 | 500 |
| Parameter Description | IDRM@VDRM | VS @IS | VT@ IT | IH | CO | Status | Samples | ||||||||
| Unit | μA | V | V | mA | V | A | mA | pF | |||||||
| P/N | ENV | max | min | max | max | max | max | min | max |  | Request sample | ||||
| P0080TA | L | 5 | 6 | 25 | 800 | 4 | 2.2 | 50 | 80 | | Request sample | ||||
| P0220TA | L | 5 | 15 | 32 | 800 | 4 | 2.2 | 50 | 60 | | Request sample | ||||
| P0300TA | L | 5 | 25 | 40 | 800 | 4 | 2.2 | 50 | 60 | | Request sample | ||||
| P0640TA | L | 5 | 58 | 77 | 800 | 4 | 2.2 | 150 | 50 | | Request sample | ||||
| P0720TA | L | 5 | 65 | 87 | 800 | 4 | 2.2 | 150 | 50 | | Request sample | ||||
| P0900TA | L | 5 | 75 | 98 | 800 | 4 | 2.2 | 150 | 50 | | Request sample | ||||
| P1100TA | L | 5 | 90 | 130 | 800 | 4 | 2.2 | 150 | 45 | | Request sample | ||||
| P1300TA | L | 5 | 120 | 160 | 800 | 4 | 2.2 | 150 | 45 | | Request sample | ||||
| P1500TA | L | 5 | 140 | 180 | 800 | 4 | 2.2 | 150 | 45 | | Request sample | ||||
| P1800TA | L | 5 | 170 | 220 | 800 | 4 | 2.2 | 150 | 35 | | Request sample | ||||
| P2300TA | L | 5 | 190 | 260 | 800 | 4 | 2.2 | 150 | 35 | | Request sample | ||||
| P2600TA | L | 5 | 220 | 300 | 800 | 4 | 2.2 | 150 | 35 | | Request sample | ||||
| P3100TA | L | 5 | 275 | 350 | 800 | 4 | 2.2 | 150 | 35 | | Request sample | ||||
| P3500TA | L | 5 | 320 | 400 | 800 | 4 | 2.2 | 150 | 35 | | Request sample | ||||
Related Application
USB
RS-485
HDMI
CAN
Ethernet
LIN
RS-232
VCC Bus
