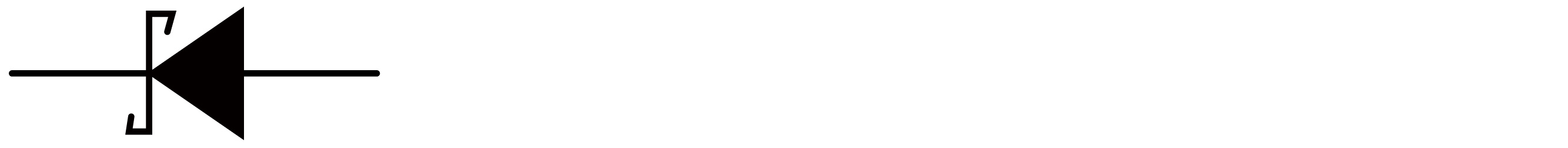

Zener diode Y1ZD series
overvoltage protection device in SOD-123 package
Description
Features

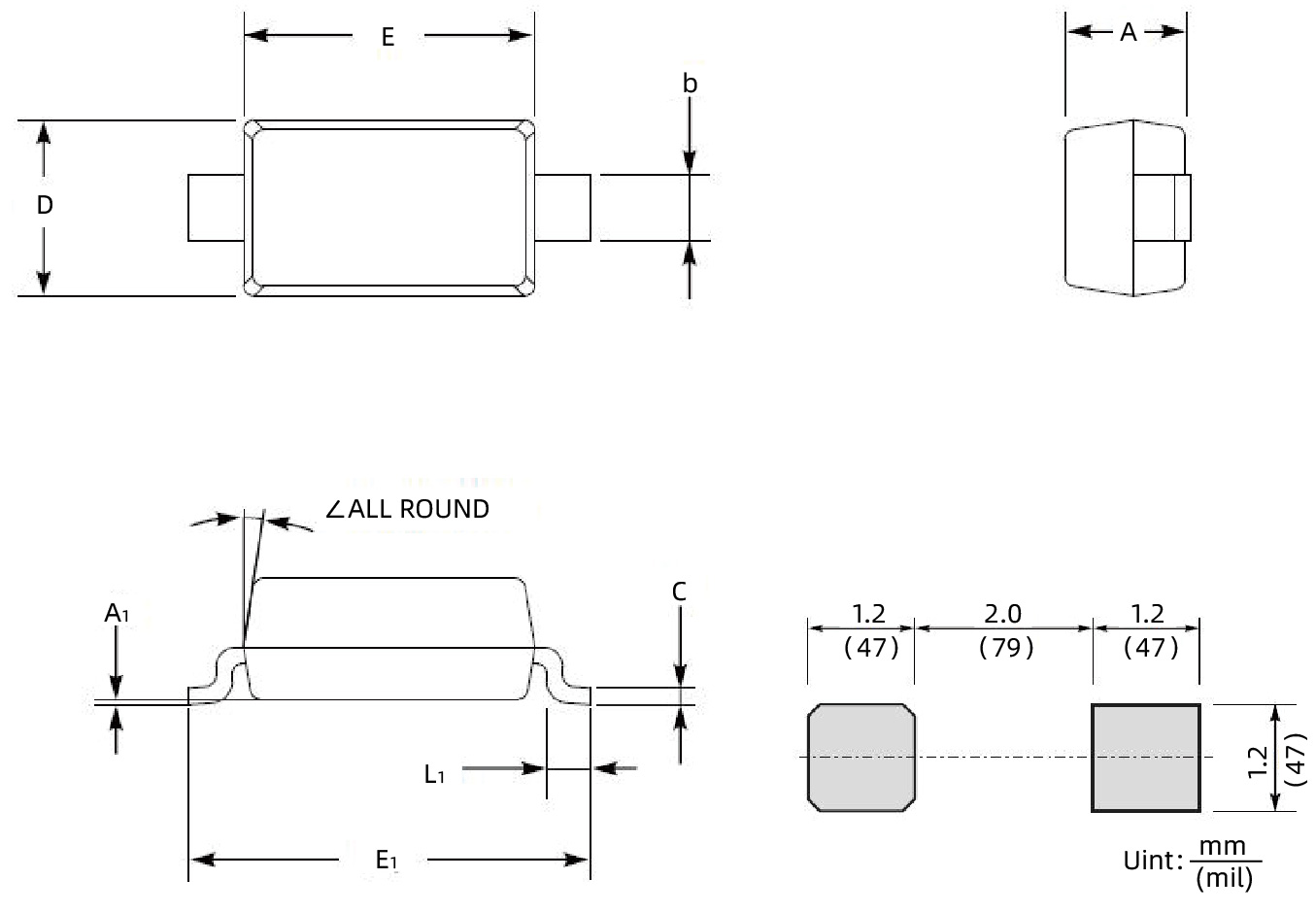

Package
| Parameter | Symbol | Value | Unit |
| Power Dissipation | Ptot | 500 | mW |
| Forward Voltage at IF = 10 mA | VF | 0.9 | V |
| Typical thermal resistance juncting to ambient | RθJA | 340 | ℃/W |
| Operating and Storage Temperature Range | Tj, Tstg | -55～+150 | ℃ |
| P/N | Zener Voltage Range | IZT | Dynamic Impedance | Reverse Current | Power Dissipation | Status | Samples | ||||||
| VZT(at IZT) | ZZT@IZT | IR | at VR | Ptot | |||||||||
| Min (V) | Nom (V) | Max (V) | (mA) | Max (Ω) | Max (μA) | (V) | W | ||||||
| Y1ZD2V0 | 1.8 | 2 | 2.15 | 5 | 100 | 120 | 0.5 | 0.5 |  | Request sample | |||
| Y1ZD2V2 | 2.08 | 2.2 | 2.33 | 5 | 100 | 120 | 0.7 | 0.5 | | Request sample | |||
| Y1ZD2V4 | 2.28 | 2.4 | 2.56 | 5 | 100 | 120 | 1 | 0.5 | | Request sample | |||
| Y1ZD2V7 | 2.5 | 2.7 | 2.9 | 5 | 110 | 120 | 1 | 0.5 | | Request sample | |||
| Y1ZD3V0 | 2.8 | 3 | 3.2 | 5 | 120 | 50 | 1 | 0.5 | | Request sample | |||
| Y1ZD3V3 | 3.1 | 3.3 | 3.5 | 5 | 130 | 20 | 1 | 0.5 | | Request sample | |||
| Y1ZD3V6 | 3.4 | 3.6 | 3.8 | 5 | 130 | 10 | 1 | 0.5 | | Request sample | |||
| Y1ZD3V9 | 3.7 | 3.9 | 4.1 | 5 | 130 | 5 | 1 | 0.5 | | Request sample | |||
| Y1ZD4V3 | 4 | 4.3 | 4.6 | 5 | 130 | 5 | 1 | 0.5 | | Request sample | |||
| Y1ZD4V7 | 4.4 | 4.7 | 5 | 5 | 130 | 2 | 1 | 0.5 | | Request sample | |||
| Y1ZD5V1 | 4.8 | 5.1 | 5.4 | 5 | 130 | 2 | 1.5 | 0.5 | | Request sample | |||
| Y1ZD5V6 | 5.2 | 5.6 | 6 | 5 | 80 | 1 | 2.5 | 0.5 | | Request sample | |||
| Y1ZD6V2 | 5.8 | 6.2 | 6.6 | 5 | 50 | 1 | 3 | 0.5 | | Request sample | |||
| Y1ZD6V8 | 6.4 | 6.8 | 7.2 | 5 | 30 | 0.5 | 3.5 | 0.5 | | Request sample | |||
| Y1ZD7V5 | 7 | 7.5 | 7.9 | 5 | 30 | 0.5 | 4 | 0.5 | | Request sample | |||
| Y1ZD8V2 | 7.7 | 8.2 | 8.7 | 5 | 30 | 0.5 | 5 | 0.5 | | Request sample | |||
| Y1ZD9V1 | 8.5 | 9.1 | 9.6 | 5 | 30 | 0.5 | 6 | 0.5 | | Request sample | |||
| Y1ZD10 | 9.4 | 10 | 10.6 | 5 | 30 | 0.1 | 7 | 0.5 | | Request sample | |||
| Y1ZD11 | 10.4 | 11 | 11.6 | 5 | 30 | 0.1 | 8 | 0.5 | | Request sample | |||
| Y1ZD12 | 11.4 | 12 | 12.7 | 5 | 35 | 0.1 | 9 | 0.5 | | Request sample | |||
| Y1ZD13 | 12.4 | 13 | 14.1 | 5 | 35 | 0.1 | 10 | 0.5 | | Request sample | |||
| Y1ZD15 | 13.8 | 15 | 15.6 | 5 | 40 | 0.1 | 11 | 0.5 | | Request sample | |||
| Y1ZD16 | 15.3 | 16 | 17.1 | 5 | 40 | 0.1 | 12 | 0.5 | | Request sample | |||
| Y1ZD18 | 16.8 | 18 | 19.1 | 5 | 45 | 0.1 | 13 | 0.5 | | Request sample | |||
| Y1ZD20 | 18.8 | 20 | 21.2 | 5 | 50 | 0.1 | 15 | 0.5 | | Request sample | |||
| Y1ZD22 | 20.8 | 22 | 23.3 | 5 | 55 | 0.1 | 17 | 0.5 | | Request sample | |||
| Y1ZD24 | 22.8 | 24 | 25.6 | 5 | 60 | 0.1 | 19 | 0.5 | | Request sample | |||
| Y1ZD27 | 25.1 | 27 | 28.9 | 5 | 70 | 0.1 | 21 | 0.5 | | Request sample | |||
| Y1ZD30 | 28 | 30 | 32 | 5 | 80 | 0.1 | 23 | 0.5 | | Request sample | |||
| Y1ZD33 | 31 | 33 | 35 | 5 | 80 | 0.1 | 25 | 0.5 | | Request sample | |||
| Y1ZD36 | 34 | 36 | 38 | 5 | 90 | 0.1 | 27 | 0.5 | | Request sample | |||
| Y1ZD39 | 37 | 39 | 41 | 2.5 | 100 | 2 | 30 | 0.5 | | Request sample | |||
| Y1ZD43 | 40 | 43 | 46 | 2.5 | 130 | 2 | 33 | 0.5 | | Request sample | |||
| Y1ZD47 | 44 | 47 | 50 | 2.5 | 150 | 2 | 36 | 0.5 | | Request sample | |||
| Y1ZD51 | 48 | 51 | 54 | 2.5 | 180 | 1 | 39 | 0.5 | | Request sample | |||
| Y1ZD56 | 52 | 56 | 60 | 2.5 | 180 | 1 | 43 | 0.5 | | Request sample | |||
| Y1ZD62 | 58 | 62 | 66 | 2.5 | 200 | 0.2 | 47 | 0.5 | | Request sample | |||
| Y1ZD68 | 64 | 68 | 72 | 2.5 | 250 | 0.2 | 52 | 0.5 | | Request sample | |||
| Y1ZD75 | 70 | 75 | 79 | 2.5 | 300 | 0.2 | 57 | 0.5 | | Request sample | |||
Related Application
USB
RS-485
HDMI
CAN
Ethernet
LIN
RS-232
VCC Bus
