Zener diode Y5ZP2D Series
overvoltage protection device in SOD-523 package
Description
Features

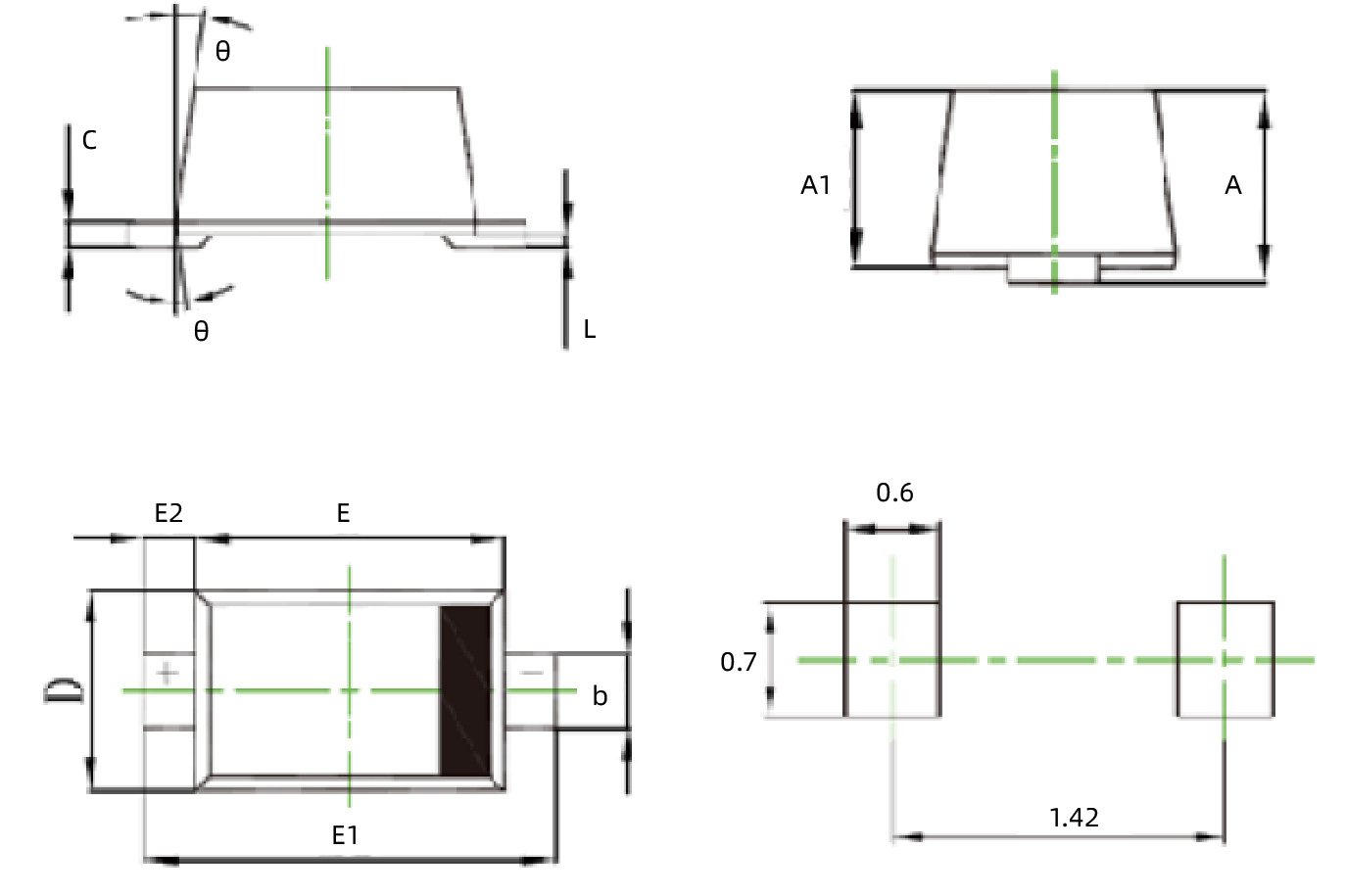

Package
| Parameter | Symbol | Value | Unit |
| Power Dissipation | Pd | 200 | mW |
| Maximum Regulator Current | IZM | PV/VZ | mA |
| Junction Temperature | Tj, | 150 | ℃ |
| Storage Temperature Range | Tstg | -55～+150 | ℃ |
| P/N | Zener Voltage Range | IZT | Dynamic Impedance | Reverse Current | Power Dissipation | Status | Samples | ||||||
| VZT(at IZT) | ZZT@IZT | IR | at VR | Ptot | |||||||||
| Min (V) | Nom (V) | Max (V) | (mA) | Max (Ω) | Max (μA) | (V) | W | ||||||
| Y5ZP2D2V4 | 2.2 | 2.4 | 2.6 | 5 | 100 | 50 | 1 | 0.2 |  | Request sample | |||
| Y5ZP2D2V7 | 2.5 | 2.7 | 2.9 | 5 | 100 | 20 | 1 | 0.2 | | Request sample | |||
| Y5ZP2D3V0 | 2.8 | 3 | 3.2 | 5 | 95 | 10 | 1 | 0.2 | | Request sample | |||
| Y5ZP2D3V3 | 3.1 | 3.3 | 3.5 | 5 | 95 | 5 | 1 | 0.2 | | Request sample | |||
| Y5ZP2D3V6 | 3.4 | 3.6 | 3.8 | 5 | 90 | 5 | 1 | 0.2 | | Request sample | |||
| Y5ZP2D3V9 | 3.7 | 3.9 | 4.1 | 5 | 90 | 3 | 1 | 0.2 | | Request sample | |||
| Y5ZP2D4V3 | 4 | 4.3 | 4.6 | 5 | 90 | 3 | 1 | 0.2 | | Request sample | |||
| Y5ZP2D4V7 | 4.4 | 4.7 | 5 | 5 | 80 | 3 | 2 | 0.2 | | Request sample | |||
| Y5ZP2D5V1 | 4.8 | 5.1 | 5.4 | 5 | 60 | 2 | 2 | 0.2 | | Request sample | |||
| Y5ZP2D5V6 | 5.2 | 5.6 | 6 | 5 | 40 | 1 | 2 | 0.2 | | Request sample | |||
| Y5ZP2D6V2 | 5.8 | 6.2 | 6.6 | 5 | 10 | 3 | 4 | 0.2 | | Request sample | |||
| Y5ZP2D6V8 | 6.4 | 6.8 | 7.2 | 5 | 15 | 2 | 4 | 0.2 | | Request sample | |||
| Y5ZP2D7V5 | 7 | 7.5 | 7.9 | 5 | 15 | 1 | 5 | 0.2 | | Request sample | |||
| Y5ZP2D8V2 | 7.7 | 8.2 | 8.7 | 5 | 15 | 0.7 | 5 | 0.2 | | Request sample | |||
| Y5ZP2D9V1 | 8.5 | 9.1 | 9.6 | 5 | 15 | 0.5 | 6 | 0.2 | | Request sample | |||
| Y5ZP2D10 | 9.4 | 10 | 10.6 | 5 | 20 | 0.2 | 7 | 0.2 | | Request sample | |||
| Y5ZP2D11 | 10.4 | 11 | 11.6 | 5 | 20 | 0.1 | 8 | 0.2 | | Request sample | |||
| Y5ZP2D12 | 11.4 | 12 | 12.7 | 5 | 25 | 0.1 | 8 | 0.2 | | Request sample | |||
| Y5ZP2D13 | 12.4 | 13 | 14.1 | 5 | 30 | 0.1 | 8 | 0.2 | | Request sample | |||
| Y5ZP2D15 | 13.8 | 15 | 15.6 | 5 | 30 | 0.1 | 10.5 | 0.2 | | Request sample | |||
| Y5ZP2D16 | 15.3 | 16 | 17.1 | 5 | 40 | 0.1 | 11.2 | 0.2 | | Request sample | |||
| Y5ZP2D18 | 16.8 | 18 | 19.1 | 5 | 45 | 0.1 | 12.6 | 0.2 | | Request sample | |||
| Y5ZP2D20 | 18.8 | 20 | 21.2 | 5 | 55 | 0.1 | 14 | 0.2 | | Request sample | |||
| Y5ZP2D22 | 20.8 | 22 | 23.3 | 5 | 55 | 0.1 | 15.4 | 0.2 | | Request sample | |||
| Y5ZP2D24 | 22.8 | 24 | 25.6 | 5 | 70 | 0.1 | 16.8 | 0.2 | | Request sample | |||
| Y5ZP2D27 | 25.1 | 27 | 28.9 | 2 | 80 | 0.1 | 18.9 | 0.2 | | Request sample | |||
| Y5ZP2D30 | 28 | 30 | 32 | 2 | 80 | 0.1 | 21 | 0.2 | | Request sample | |||
| Y5ZP2D33 | 31 | 33 | 35 | 2 | 80 | 0.1 | 23.1 | 0.2 | | Request sample | |||
| Y5ZP2D36 | 34 | 36 | 38 | 2 | 90 | 0.1 | 25.2 | 0.2 | | Request sample | |||
| Y5ZP2D39 | 37 | 39 | 41 | 2 | 130 | 0.1 | 27.3 | 0.2 | | Request sample | |||
| Y5ZP2D43 | 40 | 43 | 46 | 2 | 130 | 0.1 | 29.4 | 0.2 | | Request sample | |||
| Y5ZP2D47 | 44.65 | 47 | 49.35 | 2 | 170 | 0.1 | 36 | 0.2 | | Request sample | |||
| Y5ZP2D51 | 48.45 | 51 | 53.55 | 2 | 180 | 0.1 | 39 | 0.2 | | Request sample | |||
| Y5ZP2D56 | 53.2 | 56 | 58.8 | 2 | 200 | 0.1 | 43 | 0.2 | | Request sample | |||
| Y5ZP2D62 | 58.9 | 62 | 65.1 | 2 | 225 | 0.1 | 47 | 0.2 | | Request sample | |||
| Y5ZP2D68 | 64.6 | 68 | 71.4 | 2 | 240 | 0.1 | 52 | 0.2 | | Request sample | |||
| Y5ZP2D75 | 71.25 | 75 | 78.75 | 2 | 265 | 0.1 | 56 | 0.2 | | Request sample | |||
