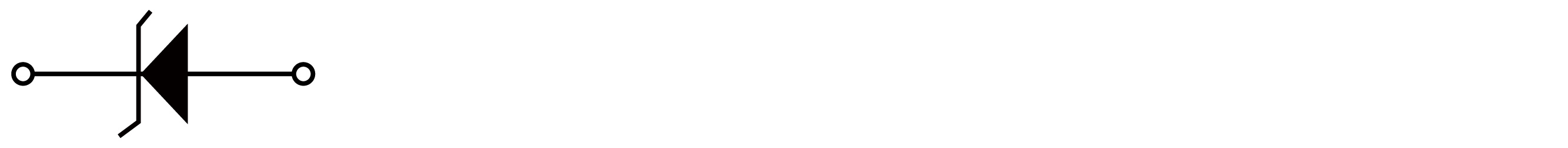

Zener diode YAZ1D Series

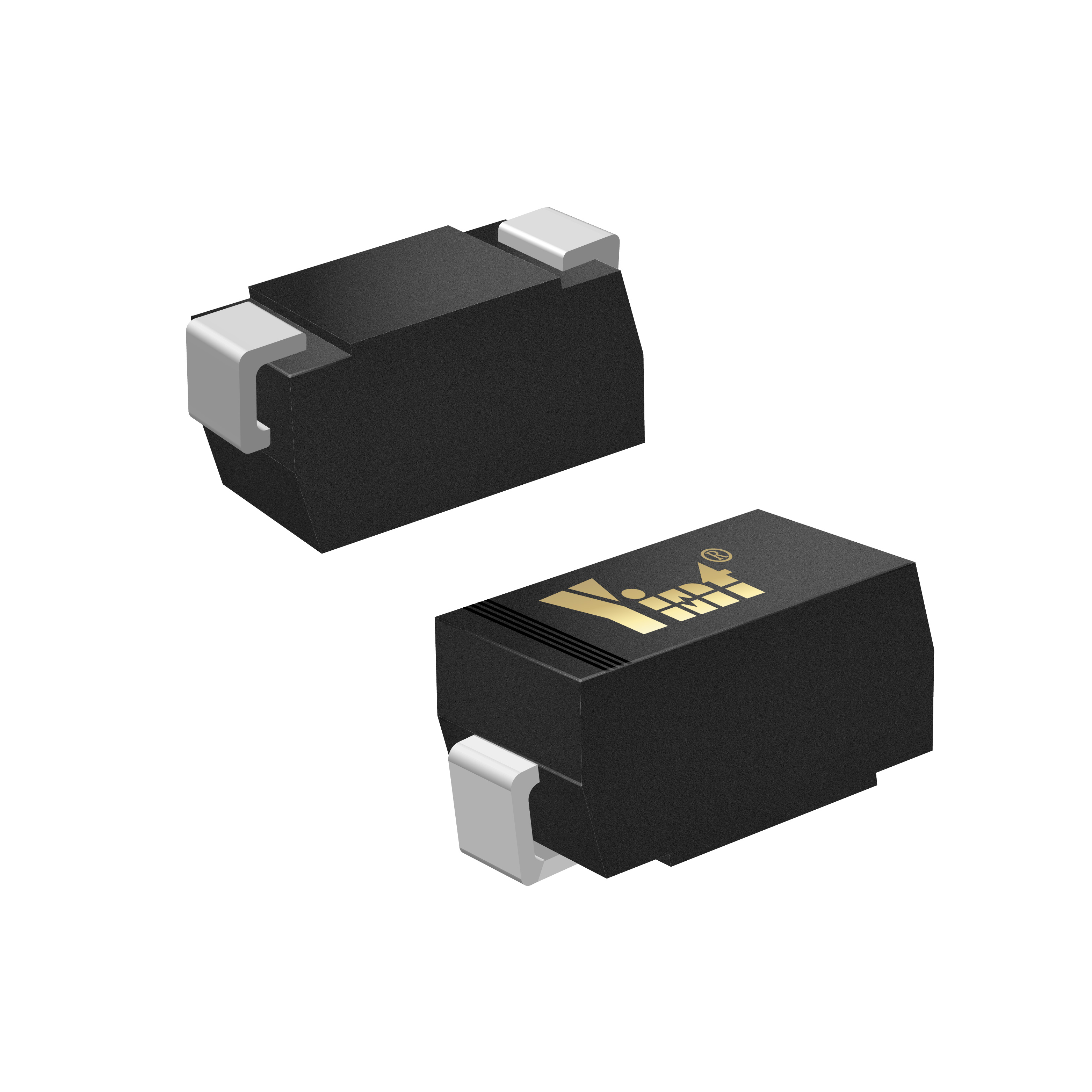

overvoltage protection device in SMA/DO-214AC package
Description
Features

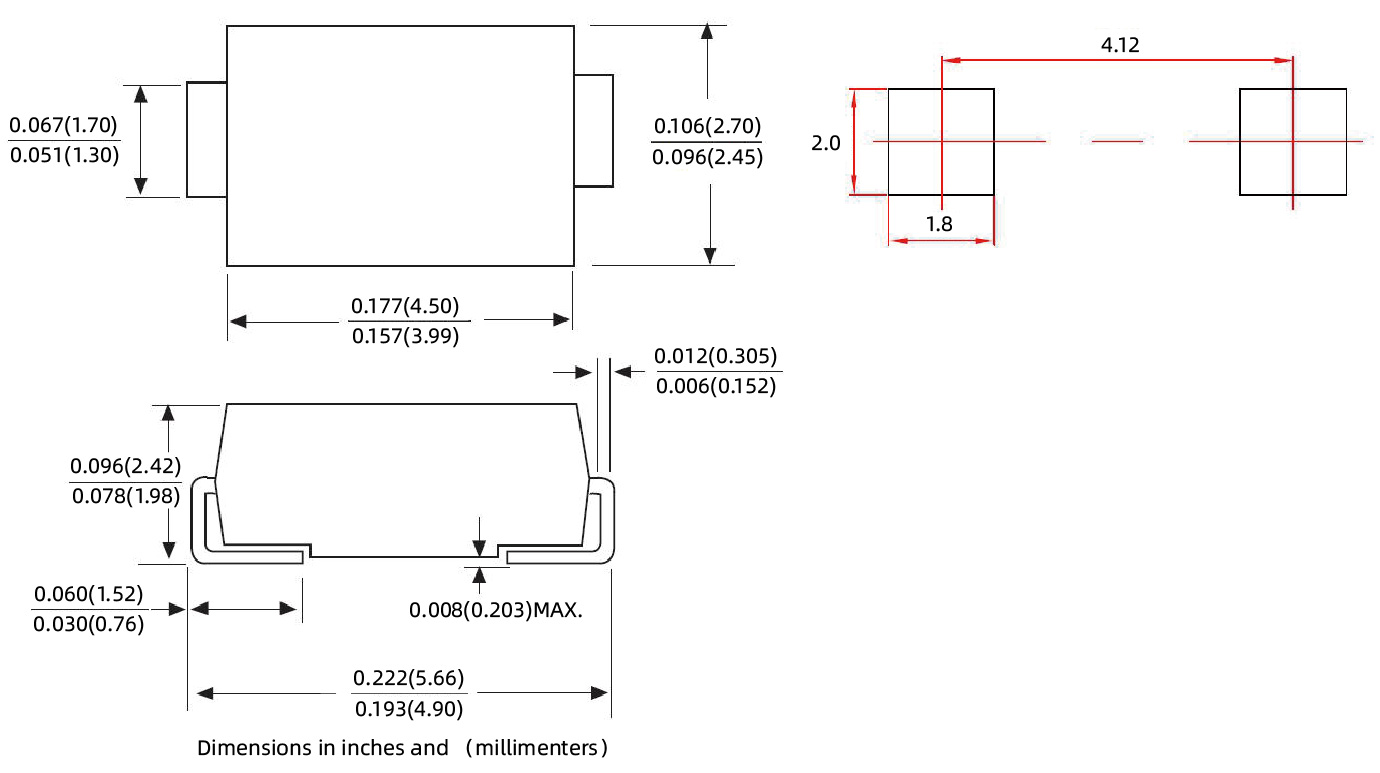

Package
| Parameter | Symbol | Value | Unit |
| Power Dissipation | Pd(TL=75℃) | 1 | W |
| Zener current | IZ | PV/VZ | mA |
| Forwardvoltage | VF(IF=200mA) | 1.2 | V |
| Junction Temperature | Tj, | -55～+150 | ℃ |
| Storage Temperature Range | Tstg | -55～+150 | ℃ |
| P/N | Zener Voltage Range | IZT | Dynamic Impedance | Reverse Current | Power Dissipation | Status | Samples | ||||||
| VZT(at IZT) | ZZT@IZT | IR | at VR | Ptot | |||||||||
| Min (V) | Nom (V) | Max (V) | (mA) | Max (Ω) | Max (μA) | (V) | W | ||||||
| YAZ1D3V3 | 3.1 | 3.3 | 3.5 | 75 | 10 | 100 | 1 | 1 |  | Request sample | |||
| YAZ1D3V6 | 3.4 | 3.6 | 3.8 | 69 | 10 | 100 | 1 | 1 | | Request sample | |||
| YAZ1D3V9 | 3.7 | 3.9 | 4.1 | 64 | 9 | 50 | 1 | 1 | | Request sample | |||
| YAZ1D4V3 | 4.06 | 4.3 | 4.56 | 58 | 9 | 25 | 1 | 1 | | Request sample | |||
| YAZ1D4V7 | 4.5 | 4.7 | 4.93 | 53 | 8 | 10 | 1 | 1 | | Request sample | |||
| YAZ1D5V1 | 4.84 | 5.1 | 5.36 | 49 | 7 | 10 | 1 | 1 | | Request sample | |||
| YAZ1D5V6 | 5.32 | 5.6 | 5.92 | 45 | 5 | 10 | 1 | 1 | | Request sample | |||
| YAZ1D6V2 | 5.86 | 6.2 | 6.51 | 41 | 2 | 10 | 1 | 1 | | Request sample | |||
| YAZ1D6V8 | 6.46 | 6.8 | 7.18 | 37 | 3.5 | 10 | 4 | 1 | | Request sample | |||
| YAZ1D7V5 | 7.12 | 7.5 | 7.88 | 34 | 4 | 10 | 5 | 1 | | Request sample | |||
| YAZ1D8V2 | 7.79 | 8.2 | 8.67 | 31 | 4.5 | 10 | 6 | 1 | | Request sample | |||
| YAZ1D9V1 | 8.6 | 9.1 | 9.59 | 28 | 5 | 10 | 7 | 1 | | Request sample | |||
| YAZ1D10 | 9.5 | 10 | 10.5 | 25 | 7 | 10 | 7 | 1 | | Request sample | |||
| YAZ1D11 | 10.4 | 11 | 11.6 | 23 | 8 | 5 | 8 | 1 | | Request sample | |||
| YAZ1D12 | 11.4 | 12 | 12.6 | 21 | 9 | 5 | 9 | 1 | | Request sample | |||
| YAZ1D13 | 12.4 | 13 | 14.1 | 19 | 10 | 5 | 10 | 1 | | Request sample | |||
| YAZ1D15 | 13.8 | 15 | 15.8 | 17 | 14 | 5 | 11 | 1 | | Request sample | |||
| YAZ1D16 | 15.2 | 16 | 17.1 | 16 | 16 | 5 | 12 | 1 | | Request sample | |||
| YAZ1D18 | 16.8 | 18 | 19.2 | 14 | 20 | 5 | 13 | 1 | | Request sample | |||
| YAZ1D20 | 19 | 20 | 21.2 | 13 | 22 | 5 | 15 | 1 | | Request sample | |||
| YAZ1D22 | 20.8 | 22 | 23.3 | 12 | 23 | 5 | 17 | 1 | | Request sample | |||
| YAZ1D24 | 22.8 | 24 | 26 | 11 | 25 | 5 | 18 | 1 | | Request sample | |||
| YAZ1D27 | 25.3 | 27 | 28.9 | 9.5 | 35 | 5 | 21 | 1 | | Request sample | |||
| YAZ1D30 | 28.2 | 30 | 32 | 8.5 | 40 | 5 | 23 | 1 | | Request sample | |||
| YAZ1D33 | 31.3 | 33 | 34.9 | 7.5 | 45 | 5 | 25 | 1 | | Request sample | |||
| YAZ1D36 | 34.2 | 36 | 37.9 | 7 | 50 | 5 | 27 | 1 | | Request sample | |||
| YAZ1D39 | 37.2 | 39 | 41.5 | 6.5 | 60 | 5 | 30 | 1 | | Request sample | |||
| YAZ1D43 | 40.9 | 43 | 45.6 | 6 | 70 | 1 | 32 | 1 | | Request sample | |||
| YAZ1D47 | 44.9 | 47 | 49.8 | 5.5 | 80 | 1 | 35 | 1 | | Request sample | |||
| YAZ1D51 | 48.6 | 51 | 54 | 5 | 95 | 1 | 38 | 1 | | Request sample | |||
| YAZ1D56 | 53.6 | 56 | 58.8 | 4.5 | 110 | 1 | 42 | 1 | | Request sample | |||
| YAZ1D62 | 58.9 | 62 | 65.6 | 4 | 125 | 1 | 47 | 1 | | Request sample | |||
| YAZ1D68 | 64.6 | 68 | 71.7 | 3.7 | 150 | 1 | 52 | 1 | | Request sample | |||
| YAZ1D75 | 71.2 | 75 | 78.8 | 3.3 | 175 | 1 | 56 | 1 | | Request sample | |||
| YAZ1D82 | 77.9 | 82 | 87 | 3 | 200 | 1 | 62 | 1 | | Request sample | |||
| YAZ1D92 | 86 | 91 | 96 | 2.8 | 250 | 1 | 69 | 1 | | Request sample | |||
| YAZ1D100 | 95 | 100 | 105 | 2.5 | 350 | 1 | 76 | 1 | | Request sample | |||
| YAZ1D110 | 104 | 110 | 116 | 2.3 | 450 | 1 | 84 | 1 | | Request sample | |||
| YAZ1D120 | 114 | 120 | 127 | 2 | 550 | 1 | 91 | 1 | | Request sample | |||
| YAZ1D135 | 125 | 135 | 142 | 1.9 | 700 | 1 | 100 | 1 | | Request sample | |||
| YAZ1D150 | 140 | 150 | 157 | 1.7 | 900 | 1 | 110 | 1 | | Request sample | |||
| YAZ1D165 | 155 | 165 | 172 | 1.6 | 1100 | 1 | 120 | 1 | | Request sample | |||
| YAZ1D180 | 170 | 180 | 191 | 1.4 | 1200 | 1 | 135 | 1 | | Request sample | |||
| YAZ1D200 | 189 | 200 | 211 | 1.2 | 1400 | 1 | 150 | 1 | | Request sample | |||
| YAZ1D220 | 209 | 220 | 231 | 1 | 1600 | 1 | 165 | 1 | | Request sample | |||
| YAZ1D240 | 229 | 240 | 251 | 1 | 1800 | 1 | 180 | 1 | | Request sample | |||
| YAZ1D260 | 249 | 260 | 271 | 1 | 2000 | 1 | 190 | 1 | | Request sample | |||
| YAZ1D280 | 269 | 280 | 291 | 1 | 2100 | 1 | 205 | 1 | | Request sample | |||
| YAZ1D300 | 289 | 300 | 315 | 1 | 2300 | 1 | 230 | 1 | | Request sample | |||
| YAZ1D330 | 313 | 330 | 346 | 1 | 2500 | 1 | 250 | 1 | | Request sample | |||
