2R***L-5.5×6 Series 2 Electrodes Gas Discharge Tube

Gas discharge tubes eliminate the surge voltage by the principle of gas ionization discharge. They have high insulation resistance, low capacitance and low leakage current to ensure minimal effect on normal operation of equipment.
Availability:
Quantity:

YINT provides high-performance and small size packaging (DIP/SMD) gas discharge tubes with fast response speed and surge suppression capability, which reduces the risk of equipment damage, this is also a good choice for protecting devices from damaging by surge current caused by lightning, especially suitable for outdoor telecommunications equipment.


Specifications

Brand: YINT

Min. Order: 1 piece

Packaging: in case

Certification: UL No: E511538, RoHS

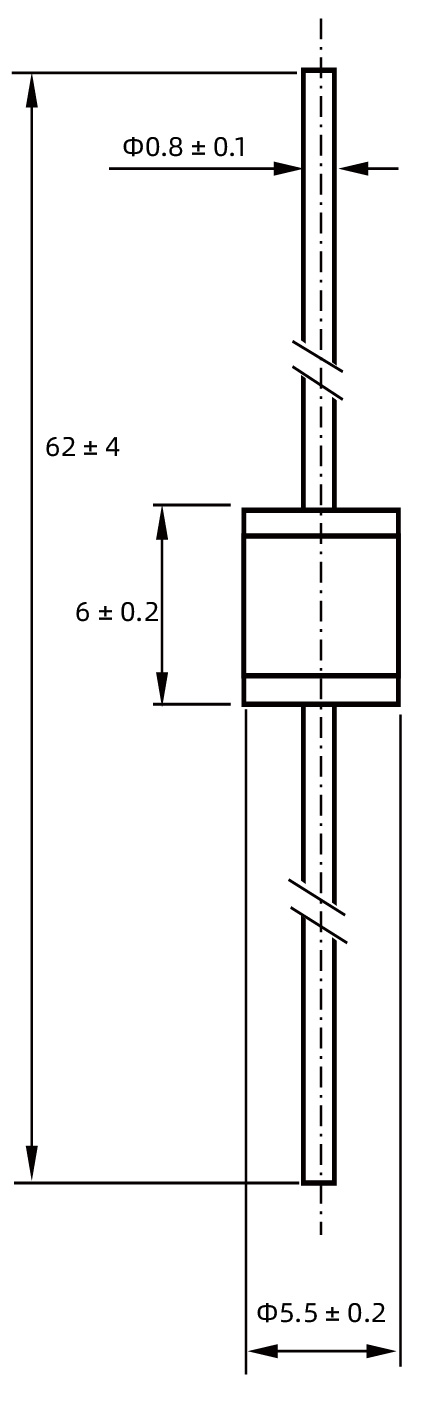

Size: 5.5mm*6mm

Stable breakdown voltage.

High insulation resistance.

Low capacitance (≤1pF)

High holdover voltage

Storage and operational temperature: -40℃ ~ +90℃


1) At delivery AQL 0.65 leave Ⅱ Military Standard 105 E.

2) In ionized mode

3) Test according to ITU-T Rec.k.12


Hot Tags: 2r***l-5.5×6 series 2 electrodes gas discharge tube, China, manufacturers, factory, price, 2 pole Gas Discharge Tube, GDT Gas Discharge Tube, Surge Arrester SMD, Gas Discharge Tube SMD, GDT Surge Arresters, 2 electrode gas discharge tube

Part Number DC
 Breakdown Voltage
Tolerance Impulse Spark-over Voltage Impulse Discharge Current 10hits(5hits
each polarity)
AC Discharge Current 5 hits Insulation Resistance* Capacitance
100V/s of Vs 1kv/μs 8/20μs 50Hz 1MHz
2R075L-5.5×6 75V ±20% ≤600V 5KA 5A ≥10 ≤1pF
2R090L-5.5×6 90V ±20% ≤600V 5KA 5A ≥10 ≤1pF
2R150L-5.5×6 150V ±20% ≤600V 5KA 5A ≥10 ≤1pF
2R200L-5.5×6 200V ±20% ≤700V 5KA 5A ≥10 ≤1pF
2R230L-5.5×6 230V ±20% ≤700V 5KA 5A ≥10 ≤1pF
2R300L-5.5×6 300V ±20% ≤900V 5KA 5A ≥10 ≤1pF
2R350L-5.5×6 350V ±20% ≤1000V 5KA 5A ≥10 ≤1pF
2R400L-5.5×6 400V ±20% ≤1000V 5KA 5A ≥10 ≤1pF
2R470L-5.5×6 470V ±20% ≤1200V 5KA 5A ≥10 ≤1pF
2R600L-5.5×6 600V ±20% ≤1400V 5KA 5A ≥10 ≤1pF
