Gas Discharge Tubes 2RL 8×6 Series
overvoltage protection device in 8×6 dimension
Description
Features

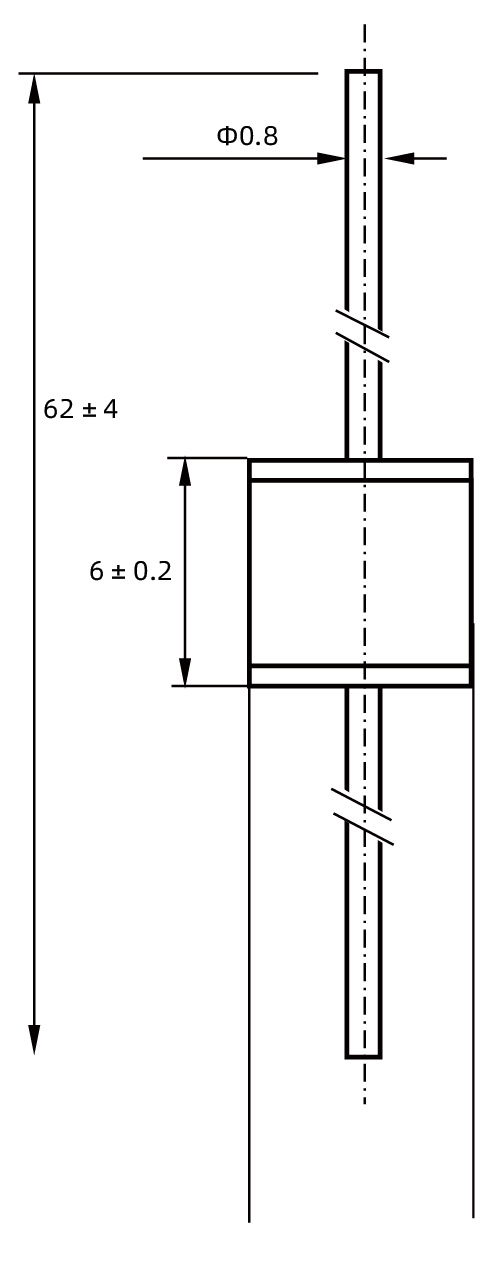

Package
| Part Number | DC Breakdown Voltage | Tolerance | Impulse Spark-over Voltage | Impulse Discharge Current 10hits (5hits each polarity) | AC Discharge Current 5 hits | Insulation Resistance* | Capacitance | Status | Samples |
| 100V/s (V) | of Vs | 1KV/μs (V) | 8/20μs | 50Hz | GΩ | 1MHz | |||
| 2R075L-8×6 | 75V | ±20% | ≤600V | 10KA | 10A | ≥10 | ≤1pF |  | Request sample |
| 2R090L-8×6 | 90V | ±20% | ≤600V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 2R150L-8×6 | 150V | ±20% | ≤600V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 2R200L-8×6 | 200V | ±20% | ≤700V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 2R230L-8×6 | 230V | ±20% | ≤700V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 2R300L-8×6 | 300V | ±20% | ≤900V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 2R350L-8×6 | 350V | ±20% | ≤1000V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 2R400L-8×6 | 400V | ±20% | ≤1000V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 2R470L-8×6 | 470V | ±20% | ≤1200V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 2R600L-8×6 | 600V | ±20% | ≤1400V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
Related Application
DC 12V
RS-485
DC 48V
POE
CAN
RJ45
LIN
HD Analog
