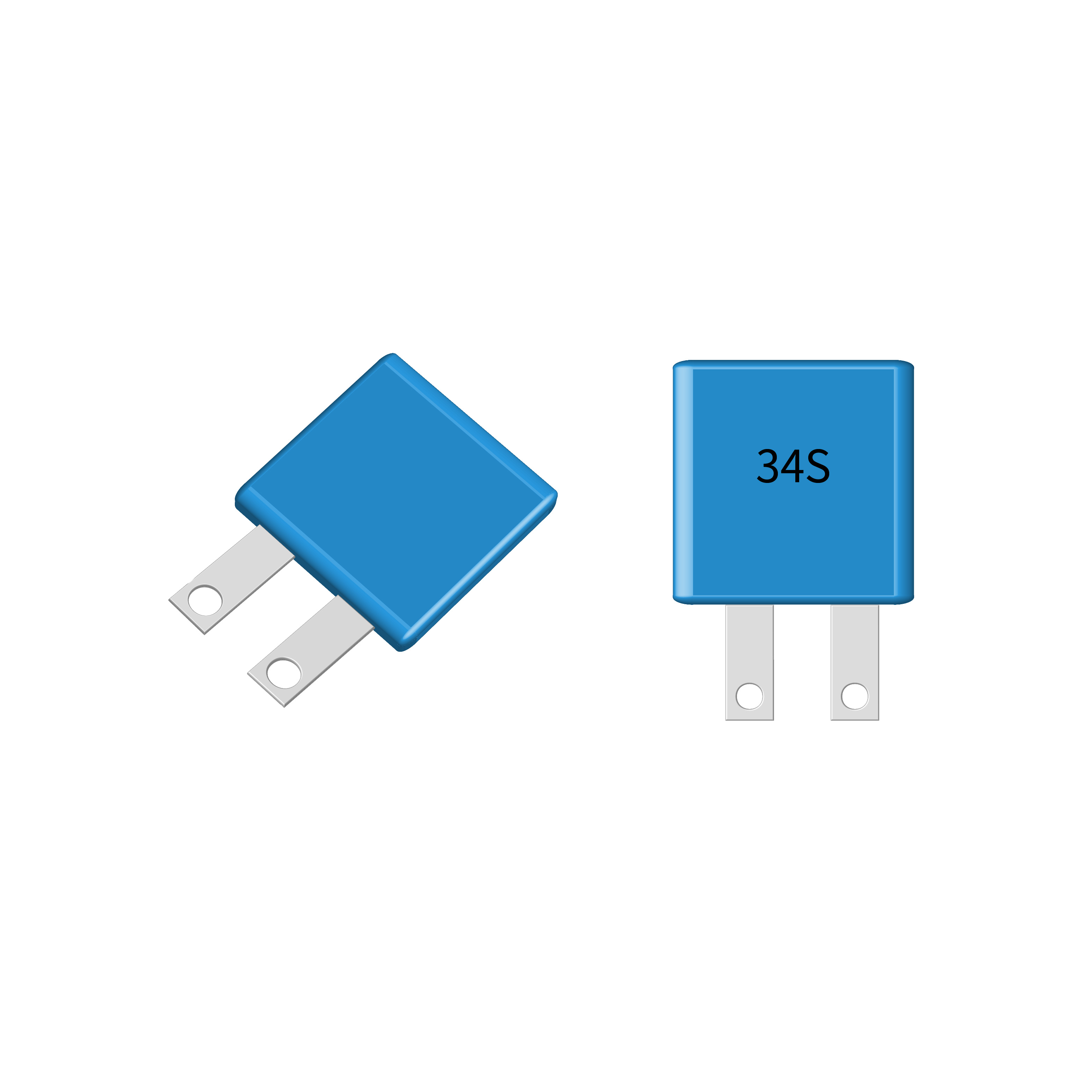

34S Series High Energy Metal Oxide Varistor

The body of the varistor is a matrix structure composed of oxide particles. The grain boundary between the particles is similar to the electrical features of the bidirectional PN junction. When the voltage is low, these grain boundaries are in a high impedance state, when the voltage is high, they turn into the breakdown state. MOV is a nonlinear device.
Availability:
Quantity:


Specifications

Brand: YINT

Min. Order: 1 piece

Certification: RoHS

Diameters: 5mm-34mm

High surge absorption capability

Voltage range from 18V to 1800V

Surge current up to 70kA

Excellent clamping performance

Fast response time

Application: Consumer Electronic, telecommunication, Lighting, etc.


※ Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.


Hot Tags: 34s series high energy metal oxide varistor, China, manufacturers, factory, price, Metal Oxide Varistor MOV, Varistor 10D471K, 7D471K Varistor, Metal Oxide Varistors, ZOV Varistor, 10D MOV

Part NO Varistor Voltage Maximum allowable voltage Maximum Limited Voltage Withstanding Surge current (8/20μs)times Rated Wattage Energy(2ms) Typical Capacitance
1mA AC DC (V) I max In (W) J 1KHz
(V) (V) 300A (A) (PF)
34S201K 200 185-225 130 170 340 40K 20K 1.4 260 5980
34S221K 220 198-242 140 180 360 40K 20K 1.4 280 5520
34S241K 240 216-264 150 200 395 40K 20K 1.4 300 5050
34S271K 270 243-297 175 225 455 40K 20K 1.4 340 4600
34S301K 300 270-330 190 250 500 40K 20K 1.4 360 4230
34S331K 330 297-363 210 275 550 40K 20K 1.4 380 3950
34S361K 360 324-396 230 300 595 40K 20K 1.4 405 3680
34S391K 390 351-429 250 320 650 40K 20K 1.4 435 3300
34S431K 430 387-473 275 350 710 40K 20K 1.4 500 2900
34S471K 470 423-517 300 385 775 40K 20K 1.4 505 2660
34S511K 510 459-561 320 415 845 40K 20K 1.4 505 2500
34S561K 560 504-616 350 460 925 40K 20K 1.4 510 2300
34S621K 620 558-682 385 505 1025 40K 20K 1.4 515 1840
34S681K 680 612-748 420 560 1120 40K 20K 1.4 560 1750
34S821K 820 738-902 510 670 1355 40K 20K 1.4 680 1500
34S911K 910 819-1001 550 745 1500 40K 20K 1.4 750 1380
34S102K 1.0K 900-1000 625 825 1815 40K 20K 1.4 780 1190
34S122K 1.2K 1080-1320 750 980 2000 40K 20K 1.4 800 1100

Note: Voltage-sensitive voltage test current DC1Ma working environment temperature: - 45 ~85, intensified temperature: - 45 +125, temperature change rate of voltage-sensitive voltage: < 0.05/.
