SA Series 500W Transient Voltage Suppressors

  • Package name: DO-15
  • Plastic package
  • Polarity: Color band denoted positive end (cathode) except Bidirectional.
  • Typical failure mode is short from over-specified voltage or current
  • Fast response time: typically less than 1.0ps from 0 Volts to BV min.
  • High Temperature soldering: 260°C/10 seconds at terminals
  • Solder dip 275 °C max. 10 s, per JESD 22-B106
Availability:
Quantity:
Inquire Add to Basket

TVS SA series products are high-performance, highly reliable electrostatic protection devices. Features include fast response times and high energy absorption capabilities, effectively protecting electronic equipment from static electricity and voltage surges.

Through careful design and rigorous testing, TVS SA series products have stable and reliable performance, can operate stably for a long time, and ensure the safe operation of electronic equipment. TVS SA series products adopt low-power design, which can effectively reduce energy consumption and improve the energy efficiency of equipment.

The TVS  SA SERIES is offered in the industry standard, DO-15 package to enable easy solderability.


Application

  • IC

  • MOSFET

  • Signal lines of sensorunits


Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.



Hot Tags: sa series 500w transient voltage suppressors, China, manufacturers, factory, price, 800W TVS Diode, SMDJ TVS, 1500W Transient Voltage Suppressor, SM8S Q TVS Diode, 5000W TVS Diode, Transient Voltage Suppressor Diode


Peak pulse power dissipation with a 10/1000 μs waveform 500 Watts
Peak pulse current with a 10/1000 μs waveform See next table
Power dissipation on infinite heat sink at TL= 75 °C 3 Watts

Peak forward surge current 8.3 ms single half sine-wave

 70 Amps
Instantaneous forward voltage at 100 A for Unidirectional only 3.5/5.0 V
Operating junction and storage temperature range -55 to + 175 ℃


Note:

  1. Non-repetitive current pulse, per fig. 6 and derated above TA = 25 °C per fig.

  2. Measured 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum

  3. VF<3.5V for devices of VBR< 200V and VF < 5.0V for devices of VBR> 201V

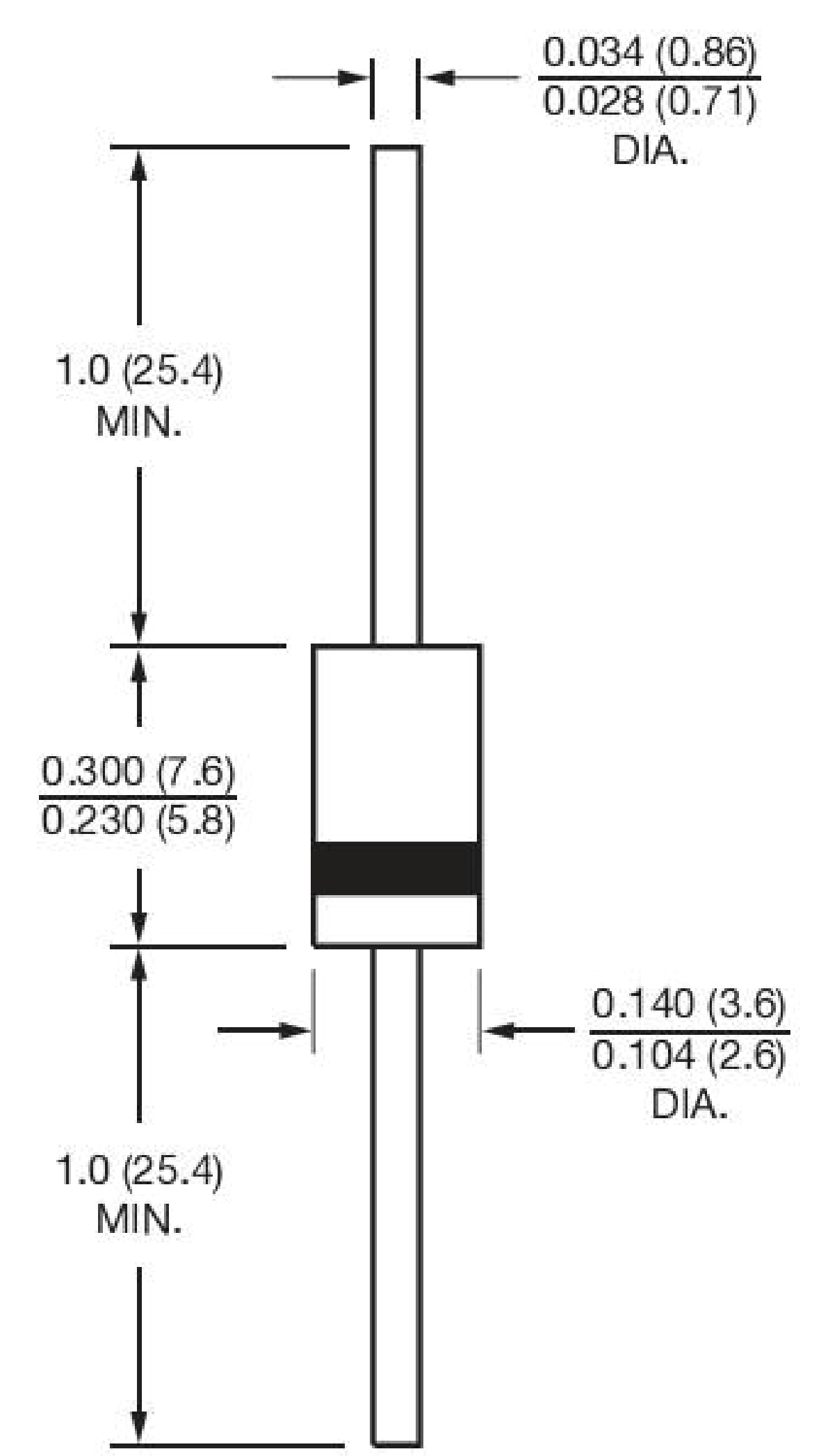

DO-15

Part Number (Bi) Part Number (Uni) Reverse Stand off Voltage VR
(Volts)		 Breakdown
Voltage VBR (Volts)@IT		 Test Current IT(mA) Maximum Reverse Leakage IR
@VR(μA)		 Maximum Peak Pulse Current Ipp
(A)		 Maximum Clamping Voltage VC
@Ipp(V)
Min .V Max .V
SA5.0CA SA5.0A 5.0 6.40 7.00 10 120 55.4 9.2
SA6.0CA SA6.0A 6.0 6.67 7.37 10 120 49.5 10.3
SA6.5CA SA6.5A 6.5 7.22 7.90 10 100 45.5 11.2
SA7.0CA SA7.0A 7.0 7.78 8.60 10 100 42.5 12.0
SA7.5CA SA7.5A 7.5 8.33 9.21 1 20 39.5 12.9
SA8.0CA SA8.0A 8.0 8.89 9.83 1 15 37.5 13.6
SA8.5CA SA8.5A 8.5 9.44 10.40 1 10 35.4 14.4
SA9.0CA SA9.0A 9.0 10.00 11.10 1 5 33.1 15.4
SA10CA SA10A 10 11.10 12.30 1 1 30.0 17.0
SA11CA SA11A 11 12.20 13.50 1 1 28.0 18.2
SA12CA SA12A 12 13.30 14.70 1 1 25.6 19.9
SA13CA SA13A 13 14.40 15.90 1 1 23.7 21.5
SA14CA SA14A 14 15.60 17.20 1 1 22.0 23.2
SA15CA SA15A 15 16.70 18.50 1 1 20.9 24.4
SA16CA SA16A 16 17.80 19.70 1 1 19.6 26.0
SA17CA SA17A 17 18.90 20.90 1 1 18.5 27.6
SA18CA SA18A 18 20.00 22.10 1 1 17.5 29.2
SA20CA SA20A 20 22.20 24.50 1 1 15.7 32.4
SA22CA SA22A 22 24.40 26.90 1 1 14.4 35.5
SA24CA SA24A 24 26.70 29.50 1 1 13.1 38.9
SA26CA SA26A 26 28.90 31.90 1 1 12.1 42.1
SA28CA SA28A 28 31.10 34.40 1 1 11.2 45.4
SA30CA SA30A 30 33.30 36.80 1 1 10.5 48.4
SA33CA SA33A 33 36.70 40.60 1 1 9.6 53.3
SA36CA SA36A 36 40.00 44.20 1 1 8.8 58.1
SA40CA SA40A 40 44.40 49.10 1 1 7.9 64.5
SA43CA SA43A 43 47.80 52.80 1 1 7.3 69.4
SA45CA SA45A 45 50.00 55.30 1 1 7.0 72.7
SA48CA SA48A 48 53.30 58.90 1 1 6.6 77.4
SA51CA SA51A 51 56.70 62.70 1 1 6.2 82.4
SA54CA SA54A 54 60.00 66.30 1 1 5.9 87.1
SA58CA SA58A 58 64.40 71.20 1 1 5.4 93.6
SA60CA SA60A 60 66.70 73.70 1 1 5.3 96.8
SA64CA SA64A 64 71.10 78.60 1 1 5.0 103.0
SA70CA SA70A 70 77.80 86.00 1 1 4.5 113.0
SA75CA SA75A 75 83.30 92.10 1 1 4.2 121.0
SA78CA SA78A 78 86.70 95.80 1 1 4.0 126.0
SA85CA SA85A 85 94.4 104.0 1 1 3.7 137.0
SA090CA SA90A 90 100.0 111.0 1 1 3.5 146.0
SA100CA SA100A 100 111.0 123.0 1 1 3.1 162.0
SA110CA SA110A 110 122.0 135.0 1 1 2.9 177.0
SA120CA SA120A 120 133.0 147.0 1 1 2.6 193.0
SA130CA SA130A 130 144.0 159.0 1 1 2.4 209.0
SA150CA SA150A 150 167.0 185.0 1 1 2.1 243.0
SA160CA SA160A 160 178.0 197.0 1 1 2.0 259.0
SA170CA SA170A 170 189.0 209.0 1 1 1.9 275.0
SA180CA SA180A 180 201.0 222.0 1 1 1.7 292.0
SA190CA SA190A 190 211.0 233.0 1 1 1.6 308.0
