Thyristor L Series

LA/LB/LC overvoltage protection device in DO-15/DO-27 package

DATA SHEET Thyristor L Series LA/LB/LC in DO-15/DO-27 package datasheet

Order now

Product profile

Parameter table

Application

Document

DO-15 DO-27

Find other TSS products

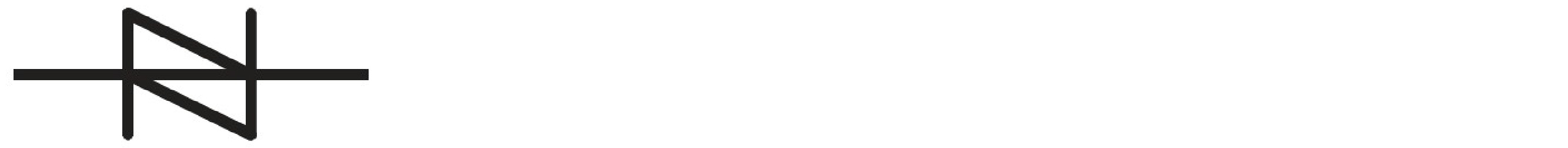

Description

Features

Package

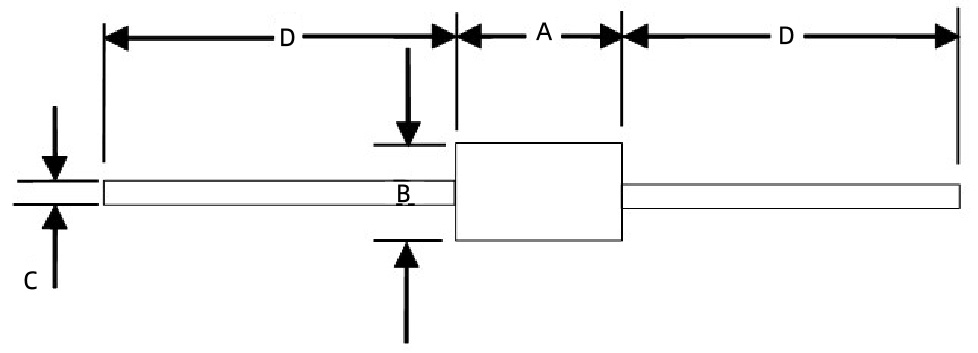

PXXXL-DO-15&DO-27

DO-15 LA&LB Series
Dimensions	Inches			Millimeters
Dimensions		Min	Max	Min	Max
A	0.230	0.300	5.80	7.60
B	0.104	0.140	2.60	3.60
C	0.026	0.034	0.70	0.90
D	1.000	-	25.40	-

DO-27 LC Series
Dimensions	Inches			Millimeters
Dimensions		Min	Max	Min	Max
A	-	0.370	-	9.50
B	-	0.250	-	6.40
C	0.048	0.052	1.20	1.30
D	1.000	-	25.40	-

Surge Ratings

Series	Ipp	Ipp	Ipp	Ipp	Ipp	ITSM	Di/Dt
Series		2/10μS Amps	8/20μS Amps	10/160μS Amps	10/560μS Amps	10/1000μS Amps	60HZ Amps	Amps /μS
A	150	150	90	50	45	20	500
B	250	250	150	100	80	30	500
C	500	400	200	150	100	50	500

Parameter Description			IDRM@VDRM			VS @IS			VT@ IT			IH	CO	Status	Samples
Unit			μA	V	V	mA	V	A	mA	pF
P/N	ENV	max	min	max	max	max	max	min	max		Request sample
P0080L	L	5	6	25	800	4	2.2	50	80		Request sample
P0080L	L	5	6	25	800	4	2.2	50	130		Request sample
P0080L	L	5	6	25	800	4	2.2	50	130		Request sample
P0220L	L	5	18	30	800	4	2.2	50	60		Request sample
P0220L	L	5	18	30	800	4	2.2	50	120		Request sample
P0220L	L	5	18	30	800	4	2.2	50	120		Request sample
P0300L	L	5	25	40	800	4	2.2	50	60		Request sample
P0300L	L	5	25	40	800	4	2.2	50	120		Request sample
P0300L	L	5	25	40	800	4	2.2	50	100		Request sample
P0640L	L	5	58	77	800	4	2.2	150	50		Request sample
P0640L	L	5	58	77	800	4	2.2	150	80		Request sample
P0640L	L	5	58	77	800	4	2.2	150	200		Request sample
P0720L	L	5	66	87	800	4	2.2	150	50		Request sample
P0720L	L	5	66	87	800	4	2.2	150	75		Request sample
P0720L	L	5	66	87	800	4	2.2	150	150		Request sample
P0900L	L	5	75	98	800	4	2.2	150	50		Request sample
P0900L	L	5	75	98	800	4	2.2	150	70		Request sample
P0900L	L	5	75	98	800	4	2.2	150	140		Request sample
P1100L	L	5	90	130	800	4	2.2	150	45		Request sample
P1100L	L	5	90	130	800	4	2.2	150	70		Request sample
P1100L	L	5	90	130	800	4	2.2	150	110		Request sample
P1300L	L	5	120	160	800	4	2.2	150	45		Request sample
P1300L	L	5	120	160	800	4	2.2	150	60		Request sample
P1300L	L	5	120	160	800	4	2.2	150	100		Request sample
P1500L	L	5	140	180	800	4	2.2	150	45		Request sample
P1500L	L	5	140	180	800	4	2.2	150	55		Request sample
P1500L	L	5	140	180	800	4	2.2	150	90		Request sample
P1800L	L	5	170	220	800	4	2.2	150	35		Request sample
P1800L	L	5	170	220	800	4	2.2	150	50		Request sample
P1800L	L	5	170	220	800	4	2.2	150	90		Request sample
P2300L	L	5	190	260	800	4	2.2	150	35		Request sample
P2300L	L	5	190	260	800	4	2.2	150	50		Request sample
P2300L	L	5	190	260	800	4	2.2	150	80		Request sample
P2600L	L	5	220	300	800	4	2.2	150	35		Request sample
P2600L	L	5	220	300	800	4	2.2	150	45		Request sample
P2600L	L	5	220	300	800	4	2.2	150	80		Request sample
P3100L	L	5	275	350	800	4	2.2	150	35		Request sample
P3100L	L	5	275	350	800	4	2.2	150	45		Request sample
P3100L	L	5	275	350	800	4	2.2	150	75		Request sample
P3500L	L	5	320	400	800	4	2.2	150	35		Request sample
P3500L	L	5	320	400	800	4	2.2	150	40		Request sample
P3500L	L	5	320	400	800	4	2.2	150	60		Request sample
