ESD Protection Diode ESD12VD3B

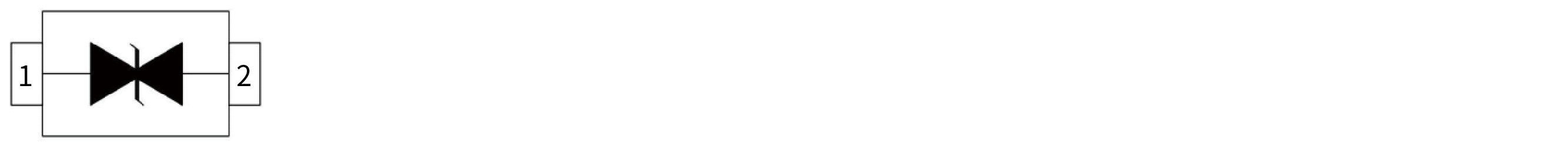

Single Channel 12V Bidirectional ESD Diode in SOD323 Package
Description
Features

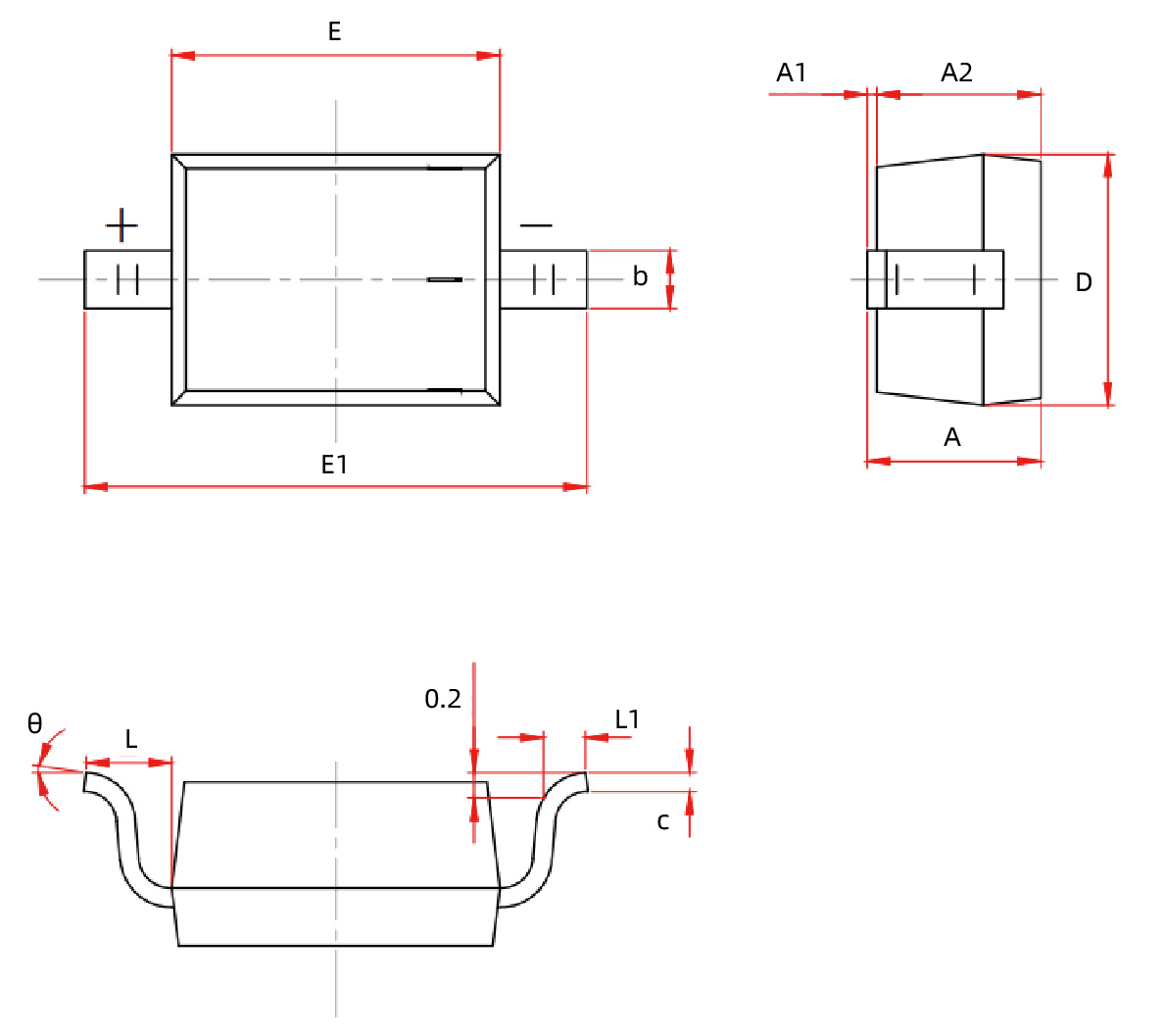

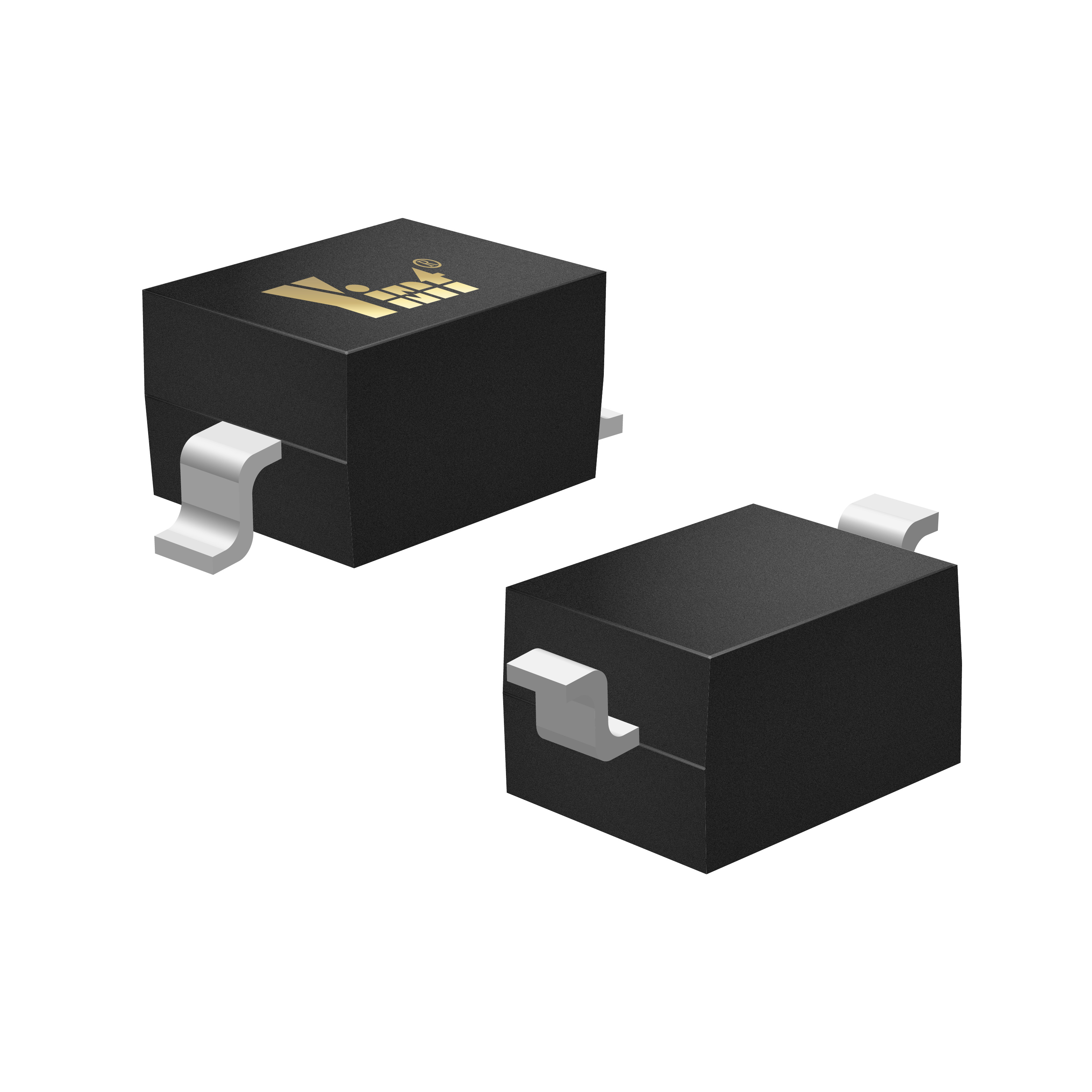

Package
| Parameter | Symbol | Value | Unit |
| Peak pulse power (tp = 8/20μs) | PPK | 350 | W |
| Maximum Reverse Peak Pulse Current(8/20μS) | Ipp | 15 | A |
| ESD per IEC 61000−4−2 (Air) | VESD | ±30 | KV |
| ESD per IEC 61000−4−2 (Contact) | VESD | ±30 | KV |
| Storage Temperature Range | TSTJ | -55 to +150 | ℃ |
| Operating Temperature Range | TJ | -55 to +125 | ℃ |
| P/N | Bi/Uni | Channel | VRWM | VBR | Reverse Current @VRWM | Clamping Voltage | Diode Capacitance VR = 0V, f = 1MHz | IPP | ESD per IEC 61000−4−2 | Status | Samples | ||||
| Max(V) | Min(V) | Max(V) | Min(μA) | Max(V) | Max(pF) | A | VESD(Air) | VESD(Contact) | |||||||
| ESD12VD3B | Bi | 1 | 12 | 13.5 | 15.5 | 0.1 | 24 | 100 | 15 | 30 | 30 |  | Request sample | ||
