ESD Protection Diode ESD36VAPB

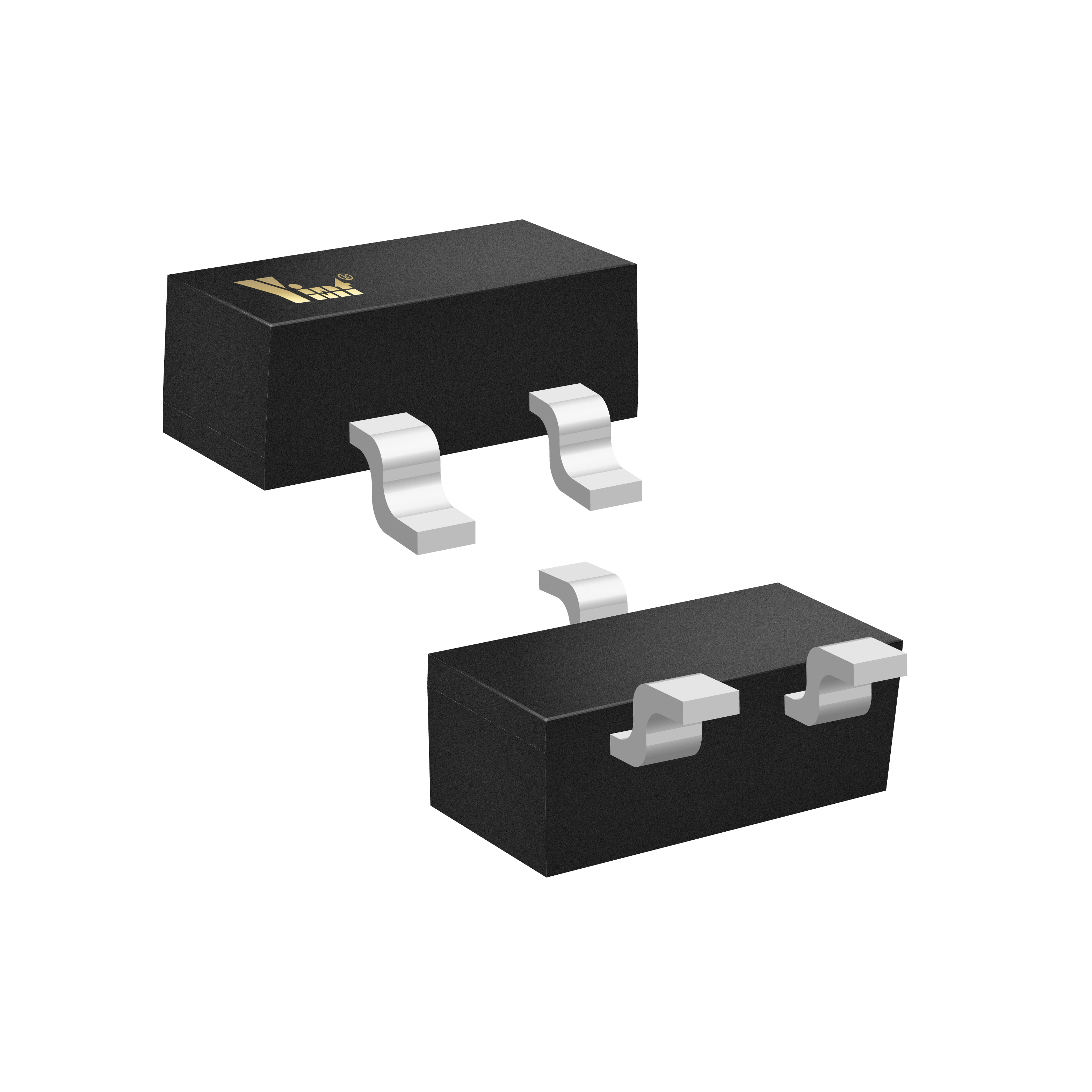

Two Channel 36V Bidirectional ESD Diode in SOT23 Package
Description
Features

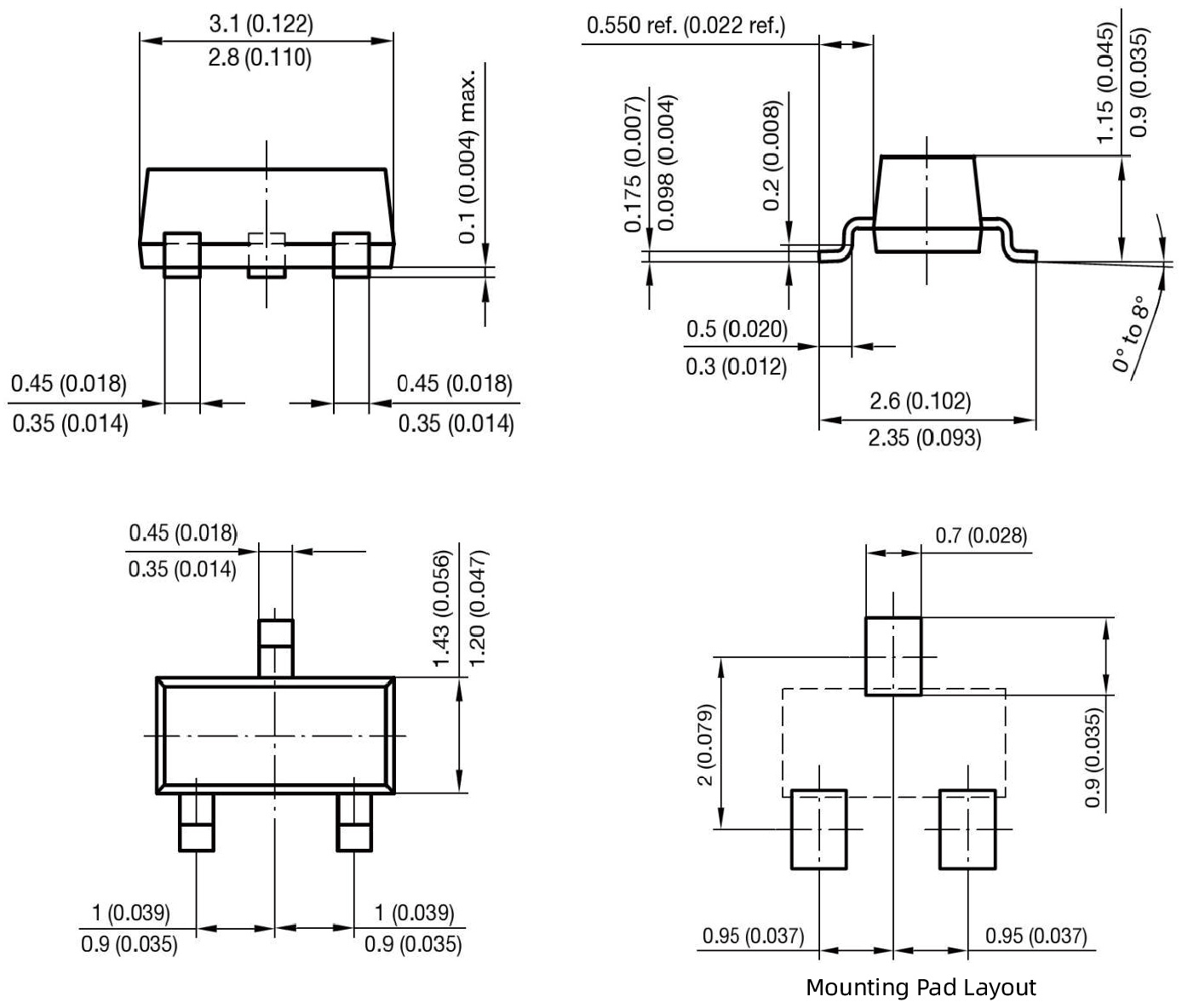

Package
| Parameter | Symbol | Value | Unit |
| Peak pulse power (tp = 8/20μs) | PPP | 350 | W |
| Maximum Reverse Peak Pulse Current(8/20μS) | IPP *1 | 4 | A |
| ESD per IEC 61000−4−2 (Air) | VESD | ±30 | KV |
| ESD per IEC 61000−4−2 (Contact) | VESD | ±30 | KV |
| Storage Temperature Range | TSTJ | -55 to +150 | ℃ |
| Operating Temperature Range | TJ | -55 to +125 | ℃ |
| P/N | Bi/Uni | Channel | VRWM | VBR | Reverse Current @VRWM | Clamping Voltage | Diode Capacitance VR = 0V, f = 1MHz | IPP | ESD per IEC 61000−4−2 | Status | Samples | ||||
| Max(V) | Min(V) | Max(V) | Min(μA) | Max(V) | Max(pF) | A | VESD(Air) | VESD(Contact) | |||||||
| ESD36VAPB | Bi | 2 | 36 | 38 | 45 | 0.5 | 70 | 45 | 4 | 30 | 30 |  | Request sample | ||
Related Application
AC 36V
RS-485
DC 24V
POE
DC 48V
LNB
AC 110V
CAN
