ESD Protection Diode ESDLLC5V0D06BH
Single Channel 5V Bidirectional ESD Diode in DFN0603 Package
Description
Features

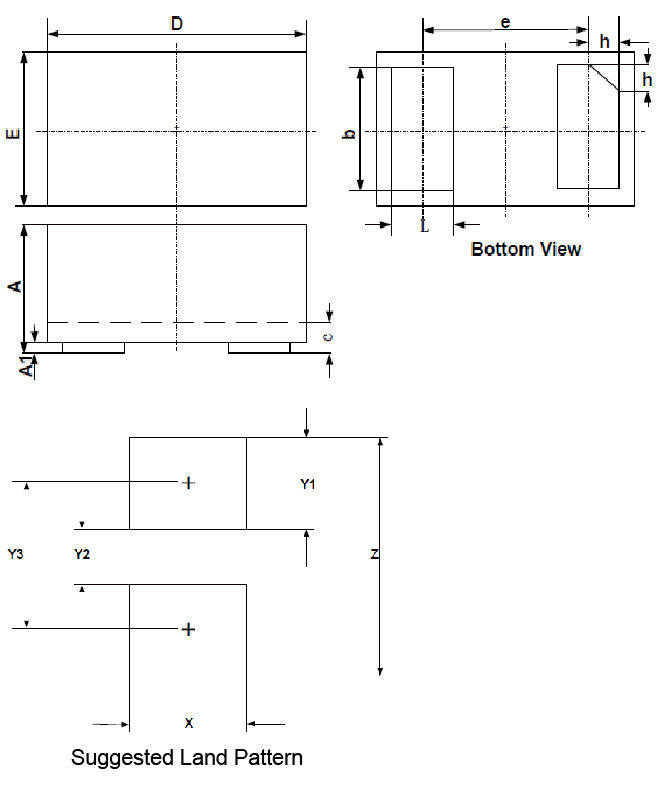

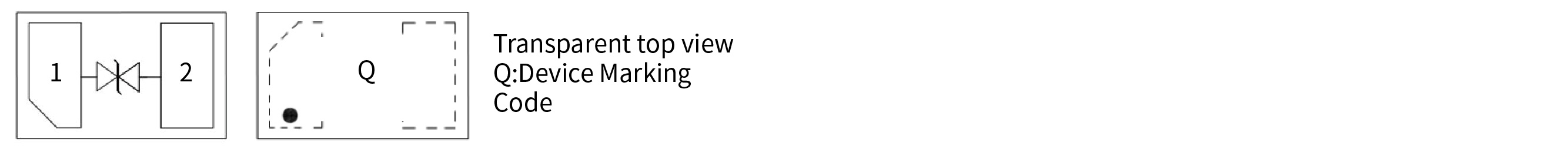

Package
| Parameter | Symbol | Value | Unit |
| Peak pulse power (tp = 8/20μs) | PPP | 80 | W |
| Maximum Reverse Peak Pulse Current(8/20μS) | IPP *1 | 4 | A |
| ESD per IEC 61000−4−2 (Air) | VESD | ±20 | KV |
| ESD per IEC 61000−4−2 (Contact) | VESD | ±15 | KV |
| Storage Temperature Range | TSTJ | -55 to +150 | ℃ |
| Operating Temperature Range | TJ | -55 to +125 | ℃ |
| P/N | Bi/Uni | Channel | VRWM | VBR | Reverse Current @VRWM | Clamping Voltage | Diode Capacitance VR = 0V, f = 1MHz | IPP | ESD per IEC 61000−4−2 | Status | Samples | ||||
| Max(V) | Min(V) | Max(V) | Min(μA) | Max(V) | Max(pF) | A | VESD(Air) | VESD(Contact) | |||||||
| ESDLLC5V0D06BH | Bi | 1 | 5 | 6 | 8.5 | 0.5 | 20 | 0.4 | 4 | 20 | 15 |  | Request sample | ||
