High voltage rectifier diode
HD513 THRU HD528 in SMA package
Description
Features

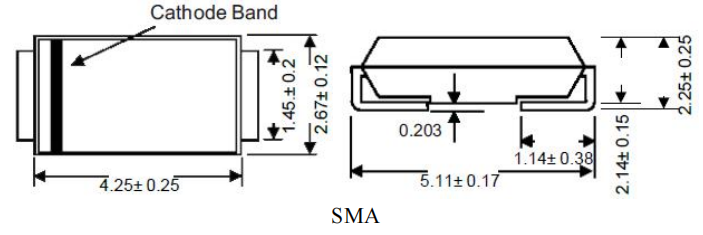

Package
| P/N | Maximum Repetitive Peak Reverse Voltage | Maximum RMS voltage | Maximum DC Blocking Voltage | Maximum Average Forward Rectified Current at Tc = 125 °C | Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load | Maximum Forward Voltage at 1 A | IR | Status | Samples | ||
| VRRM | VRMS | VDC | IF(AV) | IFSM | VF | μA | VR（V） | ||||
| HD513 | 1600 | 1120 | 1600 | 1 | 30 | <2 | 5 | 100 |  | Request sample | |
| HD516 | 1800 | 1260 | 1800 | 1 | 30 | <2 | 5 | 100 | | Request sample | |
| HD520 | 2000 | 1400 | 2000 | 1 | 30 | <2 | 5 | 100 | | Request sample | |
| HD528 | 2800 | 1960 | 2800 | 1 | 30 | <2 | 5 | 100 | | Request sample | |
