Rectifier diode Fast recovery series
trr150~500ns power diode in SMB package
Description
Features

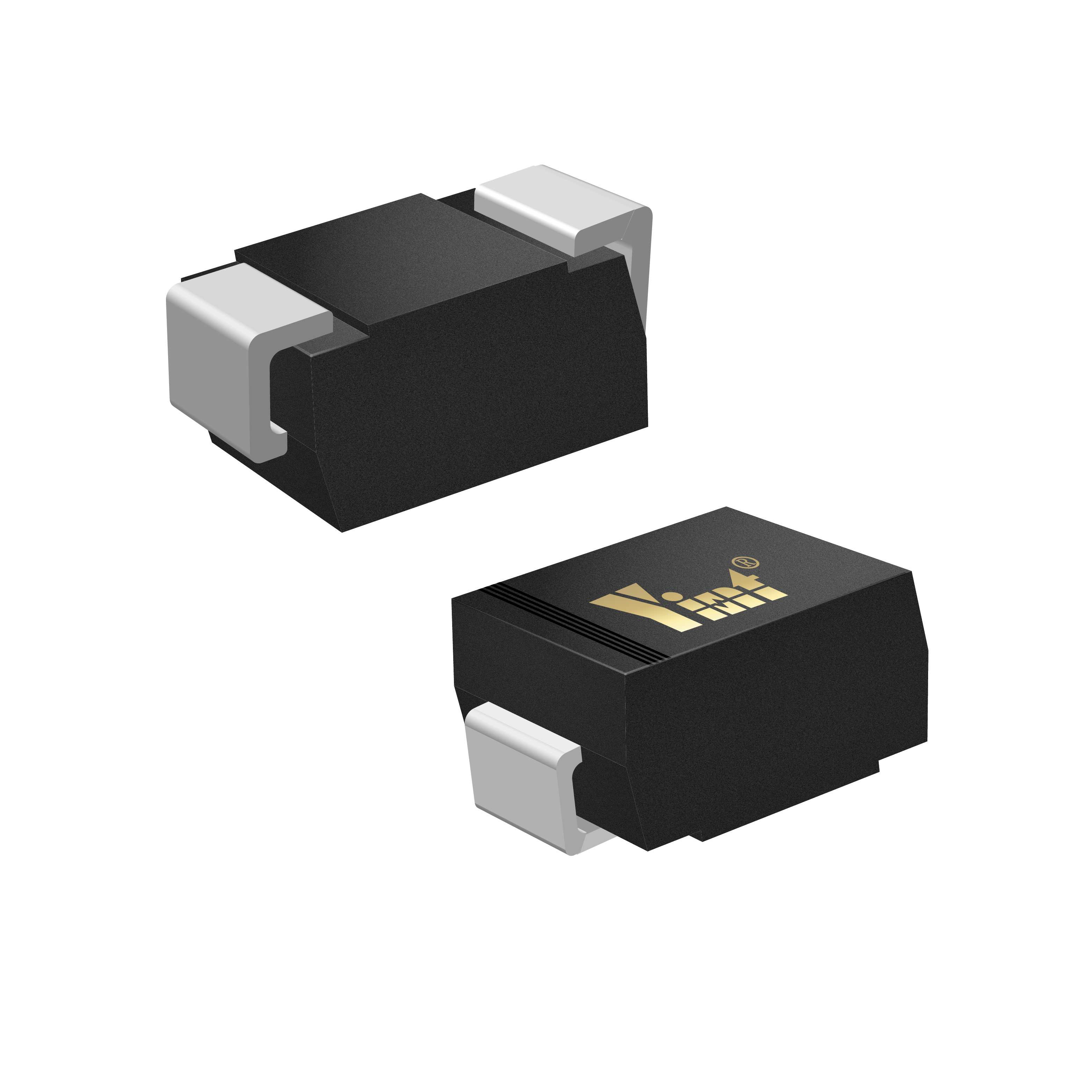

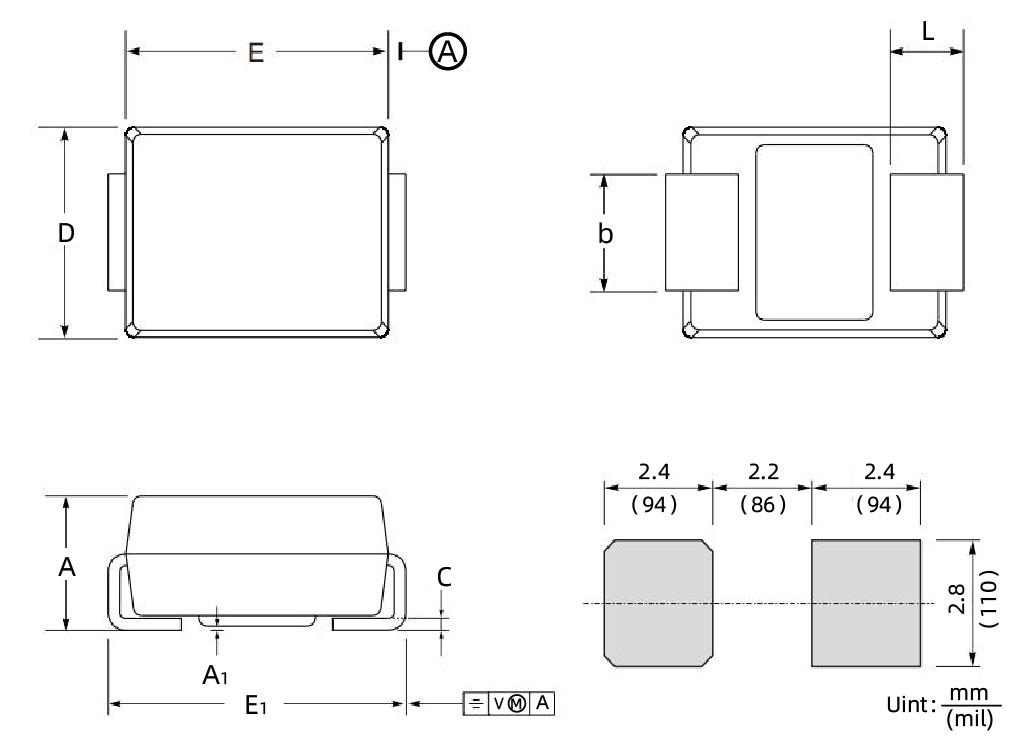

Package
| P/N | Maximum Repetitive Peak Reverse Voltage | Maximum RMS voltage | Maximum DC Blocking Voltage | Maximum Average Forward Rectified Current at Tc = 125 °C | Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load | Maximum Forward Voltage at 1 A | IR | Status | Samples | ||
| VRRM | VRMS | VDC | IF(AV) | IFSM | VF | μA | VR（V） | ||||
| RS2AB | 50 | 35 | 50 | 2 | 60 | 1.3 | 5 | 100 |  | Request sample | |
| RS2BB | 100 | 70 | 100 | 2 | 60 | 1.3 | 5 | 100 | | Request sample | |
| RS2DB | 200 | 140 | 200 | 2 | 60 | 1.3 | 5 | 100 | | Request sample | |
| RS2GB | 400 | 280 | 400 | 2 | 60 | 1.3 | 5 | 100 | | Request sample | |
| RS2JB | 600 | 420 | 600 | 2 | 60 | 1.3 | 5 | 100 | | Request sample | |
| RS2KB | 800 | 560 | 800 | 2 | 60 | 1.3 | 5 | 100 | | Request sample | |
| RS2MB | 1000 | 700 | 1000 | 2 | 60 | 1.3 | 5 | 100 | | Request sample | |
| RS3AB | 50 | 35 | 50 | 3 | 90 | 1.3 | 5 | 100 | | Request sample | |
| RS3BB | 100 | 70 | 100 | 3 | 90 | 1.3 | 5 | 100 | | Request sample | |
| RS3DB | 200 | 140 | 200 | 3 | 90 | 1.3 | 5 | 100 | | Request sample | |
| RS3GB | 400 | 280 | 400 | 3 | 90 | 1.3 | 5 | 100 | | Request sample | |
| RS3JB | 600 | 420 | 600 | 3 | 90 | 1.3 | 5 | 100 | | Request sample | |
| RS3KB | 800 | 560 | 800 | 3 | 90 | 1.3 | 5 | 100 | | Request sample | |
| RS3MB | 1000 | 700 | 1000 | 3 | 90 | 1.3 | 5 | 100 | | Request sample | |
