Rectifier diode Fast recovery series

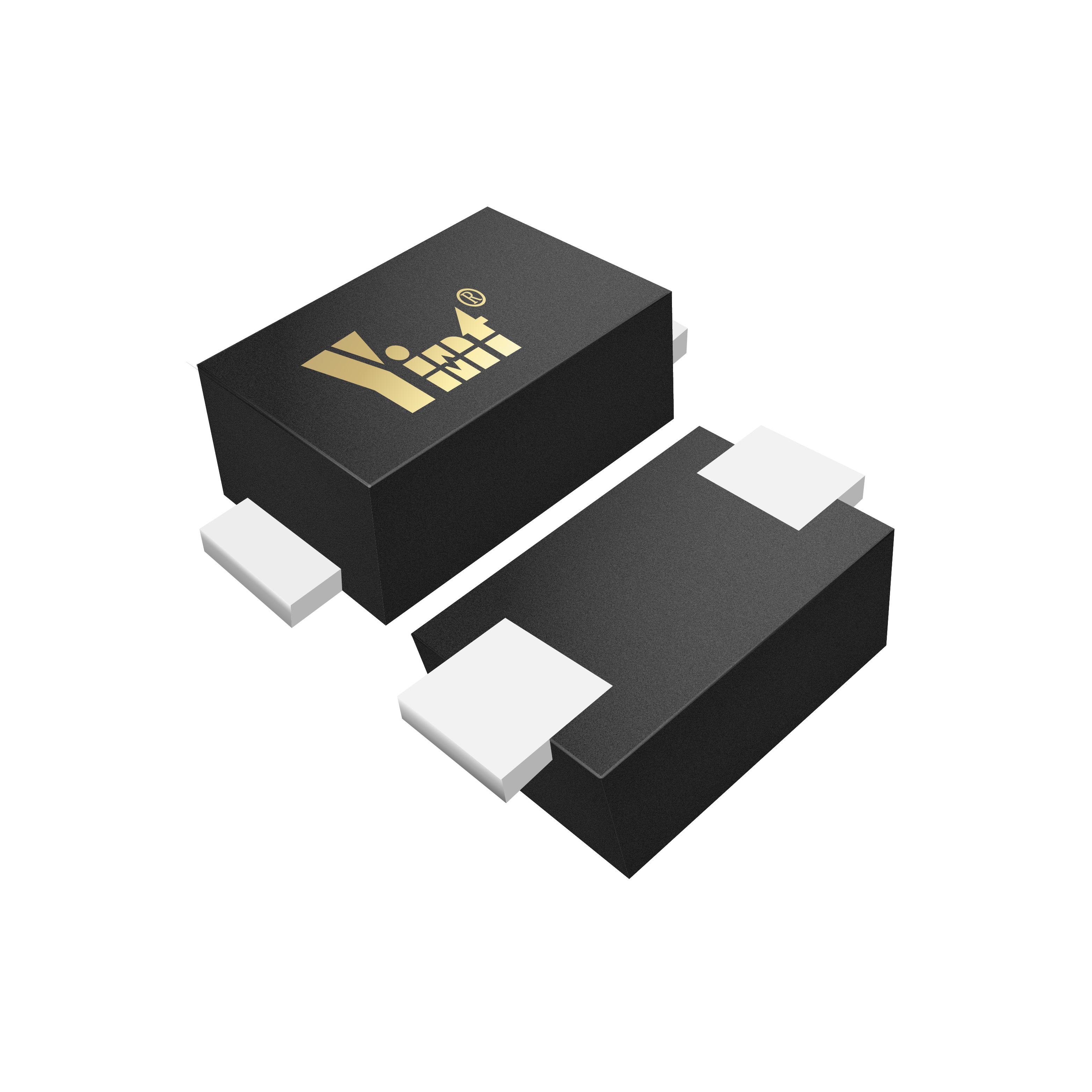

trr150~500ns power diode in SOD-123FL package
Description
Features

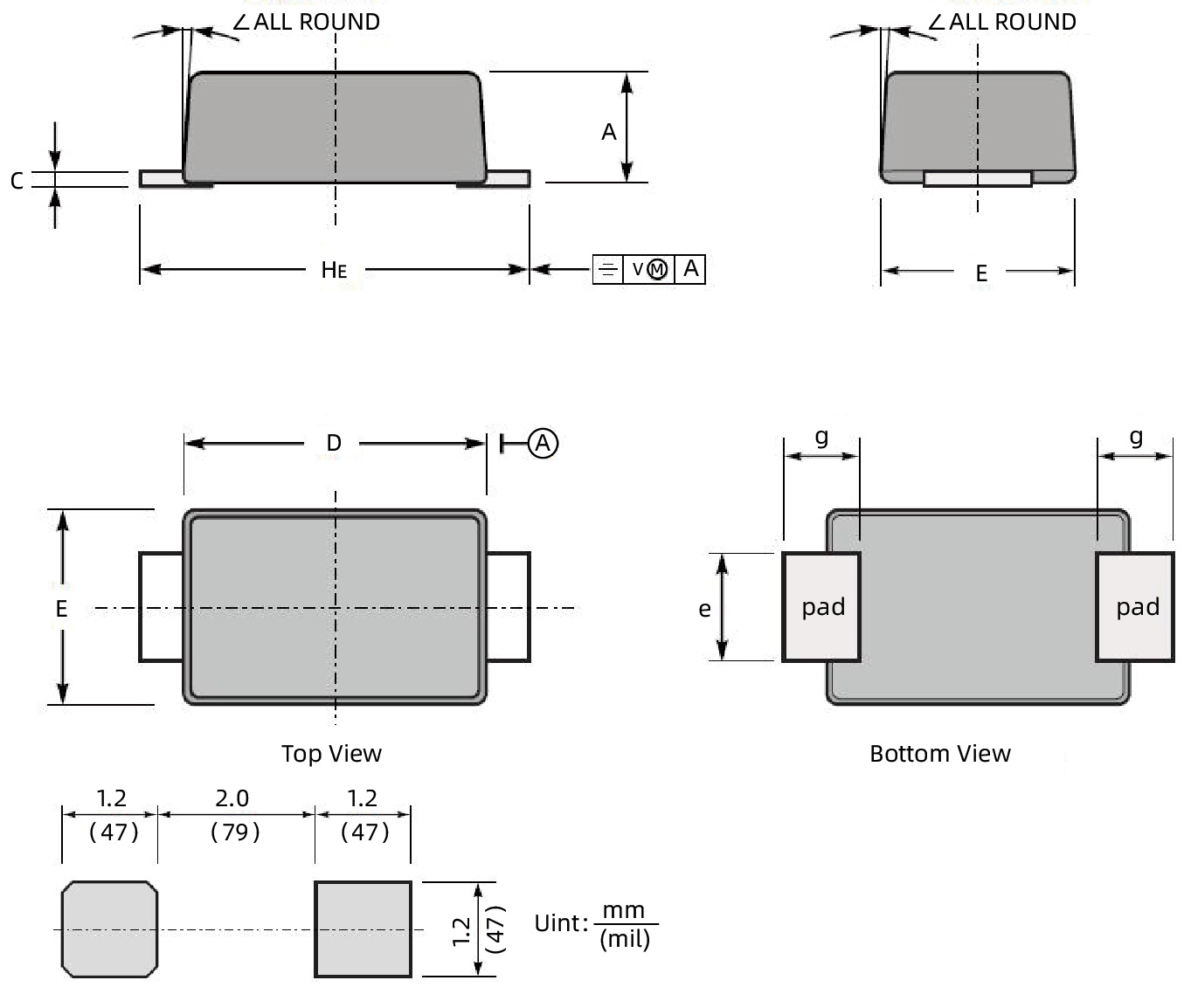

Package
| P/N | Maximum Repetitive Peak Reverse Voltage | Maximum RMS voltage | Maximum DC Blocking Voltage | Maximum Average Forward Rectified Current at Tc = 125 °C | Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load | Maximum Forward Voltage at 1 A | IR | Status | Samples | ||
| VRRM | VRMS | VDC | IF(AV) | IFSM | VF | μA | VR（V） | ||||
| FR101W | 50 | 35 | 50 | 1 | 30 | 1.3 | 5 | 100 |  | Request sample | |
| FR102W | 100 | 70 | 100 | 1 | 30 | 1.3 | 5 | 100 | | Request sample | |
| FR103W | 200 | 140 | 200 | 1 | 30 | 1.3 | 5 | 100 | | Request sample | |
| FR104W | 400 | 280 | 400 | 1 | 30 | 1.3 | 5 | 100 | | Request sample | |
| FR105W | 600 | 420 | 600 | 1 | 30 | 1.3 | 5 | 100 | | Request sample | |
| FR106W | 800 | 560 | 800 | 1 | 30 | 1.3 | 5 | 100 | | Request sample | |
| FR107W | 1000 | 700 | 1000 | 1 | 30 | 1.3 | 5 | 100 | | Request sample | |
