Rectifier diode High efficiency series

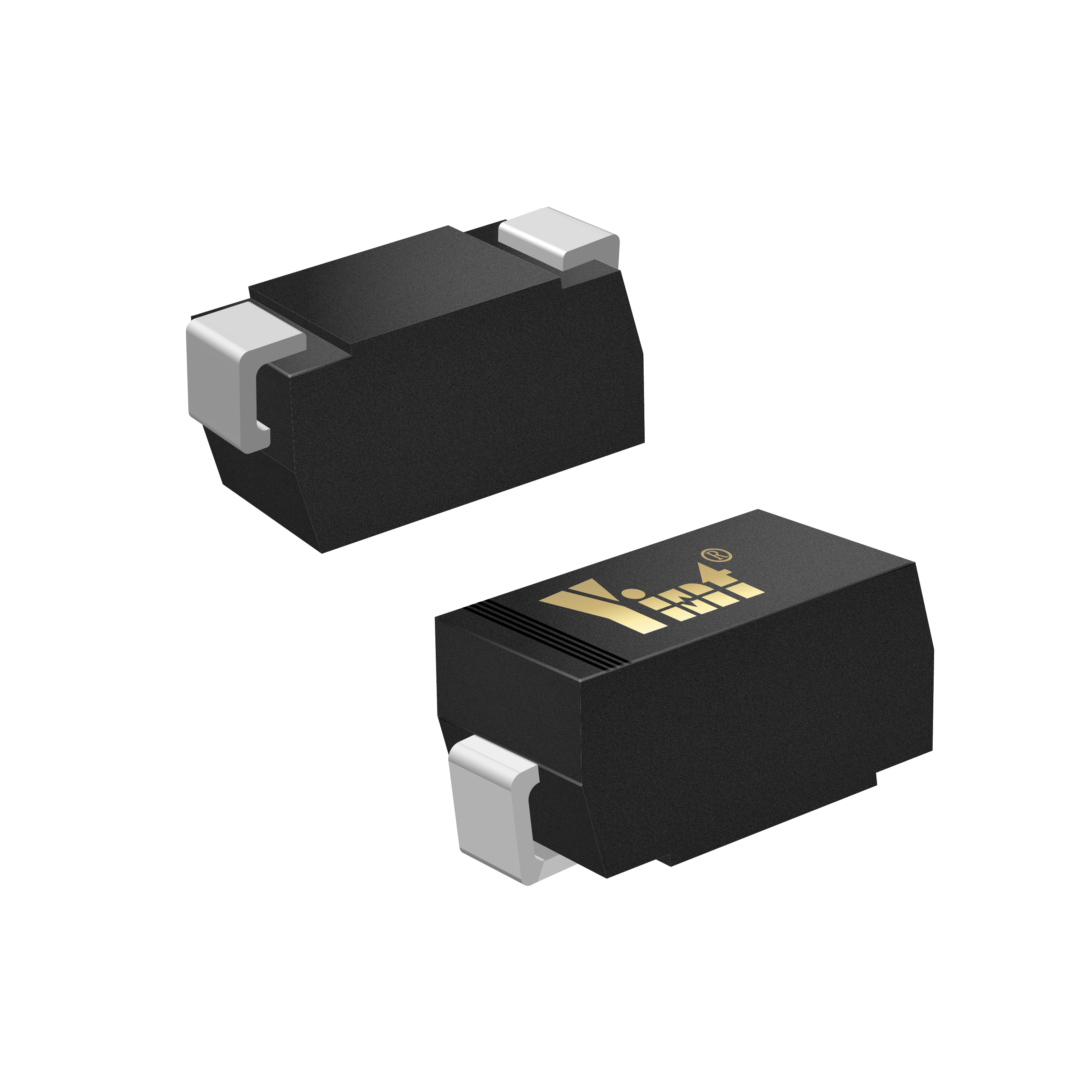

trr50~100ns power diode in SMA package
Description
Features

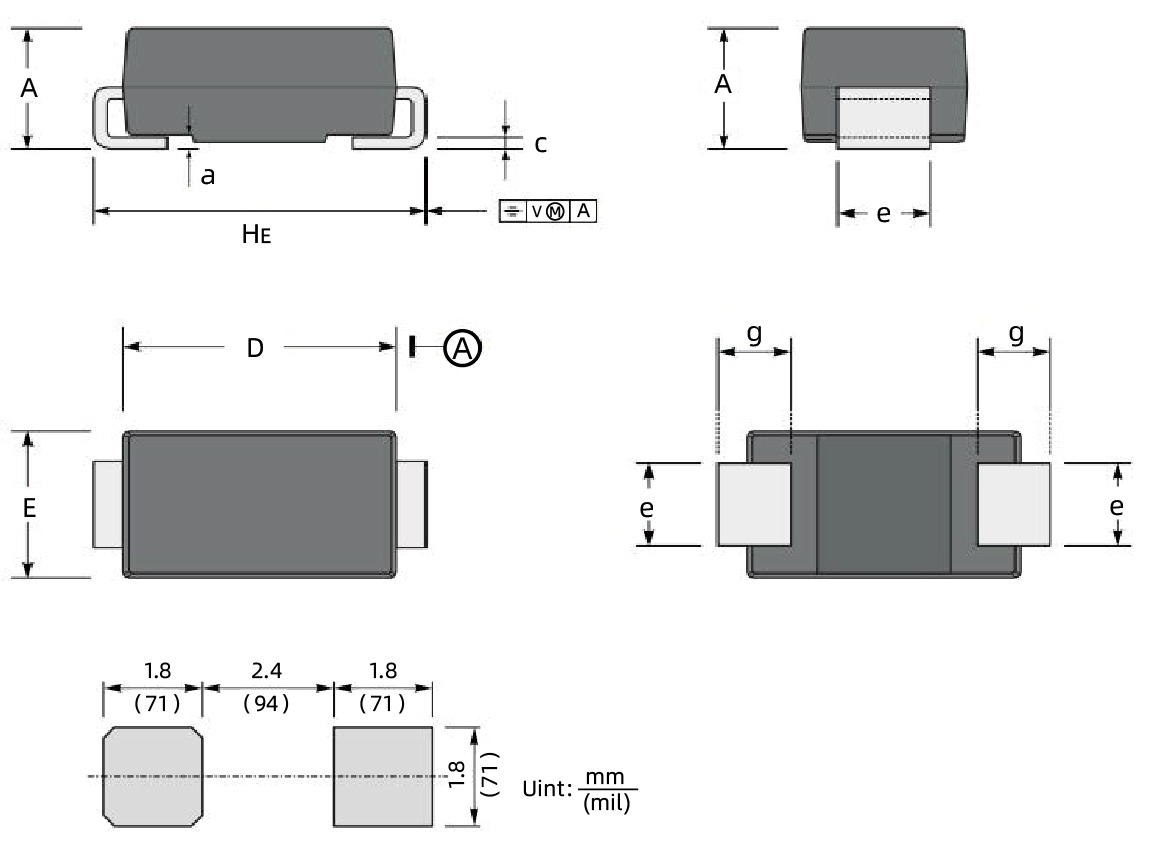

Package
| P/N | Maximum Repetitive Peak Reverse Voltage | Maximum RMS voltage | Maximum DC Blocking Voltage | Maximum Average Forward Rectified Current at Tc = 125 °C | Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load | Maximum Forward Voltage at 1 A | IR | Status | Samples | ||
| VRRM | VRMS | VDC | IF(AV) | IFSM | VF | μA | VR（V） | ||||
| US1A | 50 | 35 | 50 | 1 | 30 | 1.0 | 5 | 100 |  | Request sample | |
| US1B | 100 | 70 | 100 | 1 | 30 | 1.0 | 5 | 100 | | Request sample | |
| US1D | 200 | 140 | 200 | 1 | 30 | 1.0 | 5 | 100 | | Request sample | |
| US1G | 400 | 280 | 400 | 1 | 30 | 1.3 | 5 | 100 | | Request sample | |
| US1J | 600 | 420 | 600 | 1 | 30 | 1.65 | 5 | 100 | | Request sample | |
| US1K | 800 | 560 | 800 | 1 | 30 | 1.65 | 5 | 100 | | Request sample | |
| US1M | 1000 | 700 | 1000 | 1 | 30 | 1.65 | 5 | 100 | | Request sample | |
| US2A | 50 | 35 | 50 | 2 | 50 | 1.0 | 5 | 100 | | Request sample | |
| US2B | 100 | 70 | 100 | 2 | 50 | 1.0 | 5 | 100 | | Request sample | |
| US2D | 200 | 140 | 200 | 2 | 50 | 1.0 | 5 | 100 | | Request sample | |
| US2G | 400 | 280 | 400 | 2 | 50 | 1.3 | 5 | 100 | | Request sample | |
| US2J | 600 | 420 | 600 | 2 | 50 | 1.65 | 5 | 100 | | Request sample | |
| US2K | 800 | 560 | 800 | 2 | 50 | 1.65 | 5 | 100 | | Request sample | |
| US2M | 1000 | 700 | 1000 | 2 | 50 | 1.65 | 5 | 100 | | Request sample | |
