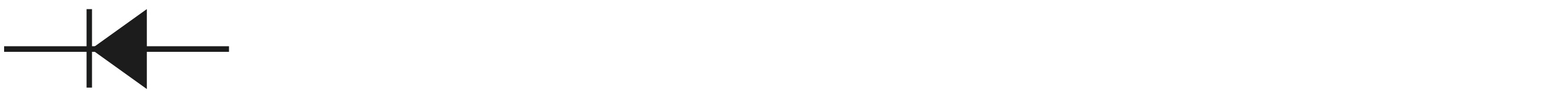

Rectifier diode Standard series
trr＞500ns power diode in SMBF package
Description
Features
Package
| P/N | Maximum Repetitive Peak Reverse Voltage | Maximum RMS voltage | Maximum DC Blocking Voltage | Maximum Average Forward Rectified Current at Tc = 125 °C | Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load | Maximum Forward Voltage at 1 A | IR | Status | Samples | ||
| VRRM | VRMS | VDC | IF(AV) | IFSM | VF | μA | VR（V） | ||||
| S2ABF | 50 | 35 | 50 | 2 | 50 | 1.1 | 5 | 100 |  | Request sample | |
| S2BBF | 100 | 70 | 100 | 2 | 50 | 1.1 | 5 | 100 | | Request sample | |
| S2DBF | 200 | 140 | 200 | 2 | 50 | 1.1 | 5 | 100 | | Request sample | |
| S2GBF | 400 | 280 | 400 | 2 | 50 | 1.1 | 5 | 100 | | Request sample | |
| S2JBF | 600 | 420 | 600 | 2 | 50 | 1.1 | 5 | 100 | | Request sample | |
| S2KBF | 800 | 560 | 800 | 2 | 50 | 1.1 | 5 | 100 | | Request sample | |
| S2MBF | 1000 | 700 | 1000 | 2 | 50 | 1.1 | 5 | 100 | | Request sample | |
| S3ABF | 50 | 35 | 50 | 3 | 80 | 1.1 | 5 | 150 | | Request sample | |
| S3BBF | 100 | 70 | 100 | 3 | 80 | 1.1 | 5 | 150 | | Request sample | |
| S3DBF | 200 | 140 | 200 | 3 | 80 | 1.1 | 5 | 150 | | Request sample | |
| S3GBF | 400 | 280 | 400 | 3 | 80 | 1.1 | 5 | 150 | | Request sample | |
| S3JBF | 600 | 420 | 600 | 3 | 80 | 1.1 | 5 | 150 | | Request sample | |
| S3KBF | 800 | 560 | 800 | 3 | 80 | 1.1 | 5 | 150 | | Request sample | |
| S3MBF | 1000 | 700 | 1000 | 3 | 80 | 1.1 | 5 | 150 | | Request sample | |
| S5ABF | 50 | 35 | 50 | 5 | 150 | 1.1 | 5 | 150 | | Request sample | |
| S5BBF | 100 | 70 | 100 | 5 | 150 | 1.1 | 5 | 150 | | Request sample | |
| S5DBF | 200 | 140 | 200 | 5 | 150 | 1.1 | 5 | 150 | | Request sample | |
| S5GBF | 400 | 280 | 400 | 5 | 150 | 1.1 | 5 | 150 | | Request sample | |
| S5JBF | 600 | 420 | 600 | 5 | 150 | 1.1 | 5 | 150 | | Request sample | |
| S5KBF | 800 | 560 | 800 | 5 | 150 | 1.1 | 5 | 150 | | Request sample | |
| S5MBF | 1000 | 700 | 1000 | 5 | 150 | 1.1 | 5 | 150 | | Request sample | |
