Rectifier diode Super fast recovery series
trr15~35ns power diode in SMBF package
Description
Features

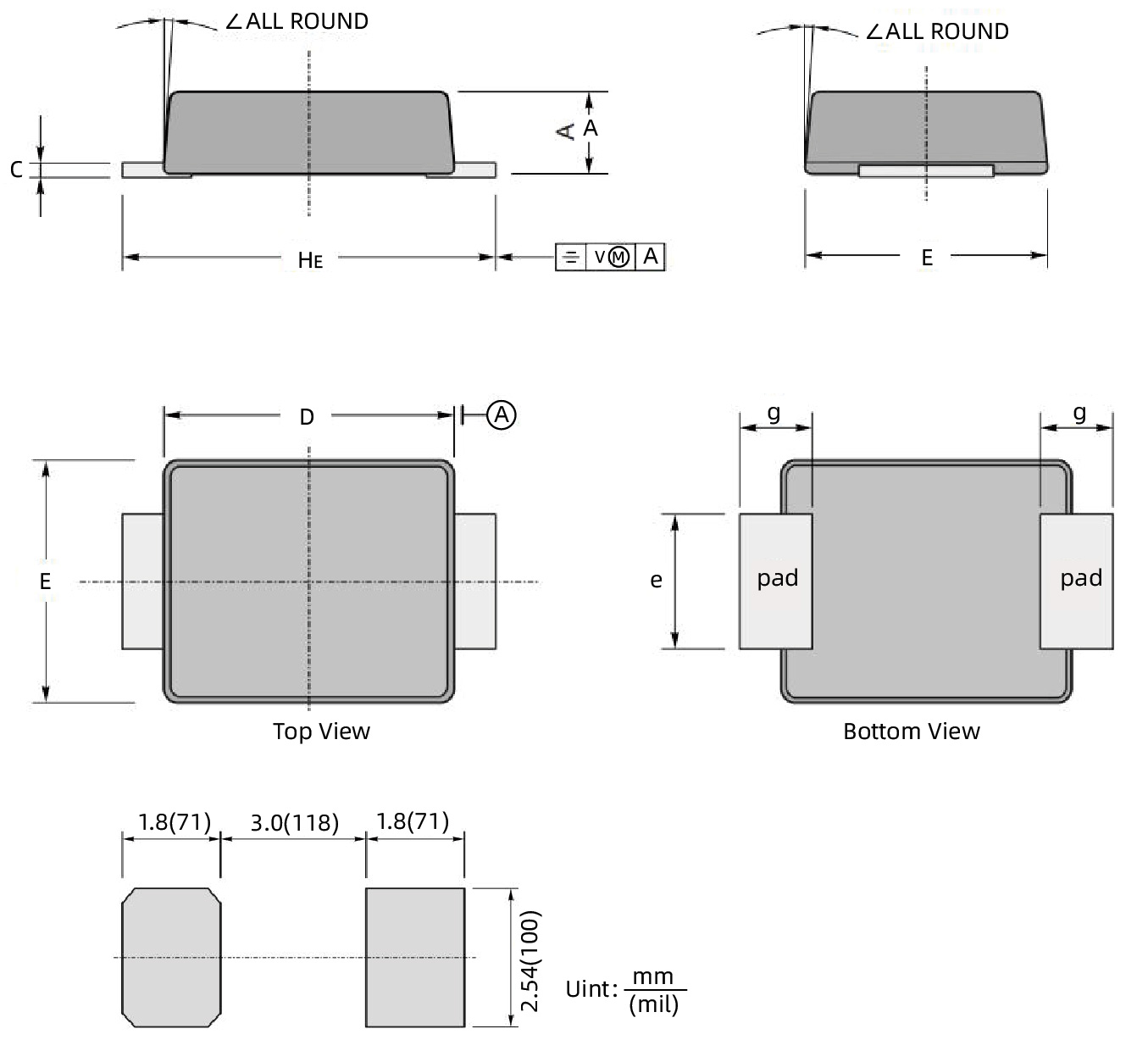

Package
| P/N | Maximum Repetitive Peak Reverse Voltage | Maximum RMS voltage | Maximum DC Blocking Voltage | Maximum Average Forward Rectified Current at Tc = 125 °C | Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load | Maximum Forward Voltage at 1 A | IR | Status | Samples | ||
| VRRM | VRMS | VDC | IF(AV) | IFSM | VF | μA | VR（V） | ||||
| ES2ABF | 50 | 35 | 50 | 2 | 50 | 1.0 | 5 | 100 |  | Request sample | |
| ES2BBF | 100 | 70 | 100 | 2 | 50 | 1.0 | 5 | 100 | | Request sample | |
| ES2CBF | 150 | 105 | 150 | 2 | 50 | 1.0 | 5 | 100 | | Request sample | |
| ES2DBF | 200 | 140 | 200 | 2 | 50 | 1.0 | 5 | 100 | | Request sample | |
| ES2EBF | 300 | 210 | 300 | 2 | 50 | 1.25 | 5 | 100 | | Request sample | |
| ES2GBF | 400 | 280 | 400 | 2 | 50 | 1.25 | 5 | 100 | | Request sample | |
| ES2JBF | 600 | 420 | 600 | 2 | 50 | 1.68 | 5 | 100 | | Request sample | |
| ES3ABF | 50 | 35 | 50 | 3 | 80 | 1.0 | 5 | 100 | | Request sample | |
| ES3BBF | 100 | 70 | 100 | 3 | 80 | 1.0 | 5 | 100 | | Request sample | |
| ES3CBF | 150 | 105 | 150 | 3 | 80 | 1.0 | 5 | 100 | | Request sample | |
| ES3DBF | 200 | 140 | 200 | 3 | 80 | 1.0 | 5 | 100 | | Request sample | |
| ES3EBF | 300 | 210 | 300 | 3 | 80 | 1.25 | 5 | 100 | | Request sample | |
| ES3GBF | 400 | 280 | 400 | 3 | 80 | 1.25 | 5 | 100 | | Request sample | |
| ES3JBF | 600 | 420 | 600 | 3 | 80 | 1.68 | 5 | 100 | | Request sample | |
Related Application
USB
RS-485
HDMI
CAN
Ethernet
LIN
RS-232
VCC Bus
Documents
All
Data sheet
