Rectifier diode Super fast recovery series
trr15~35ns power diode in SMC package
Description
Features

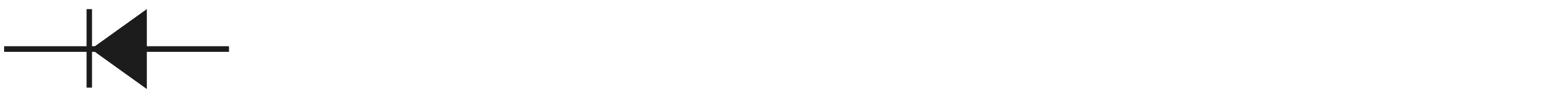

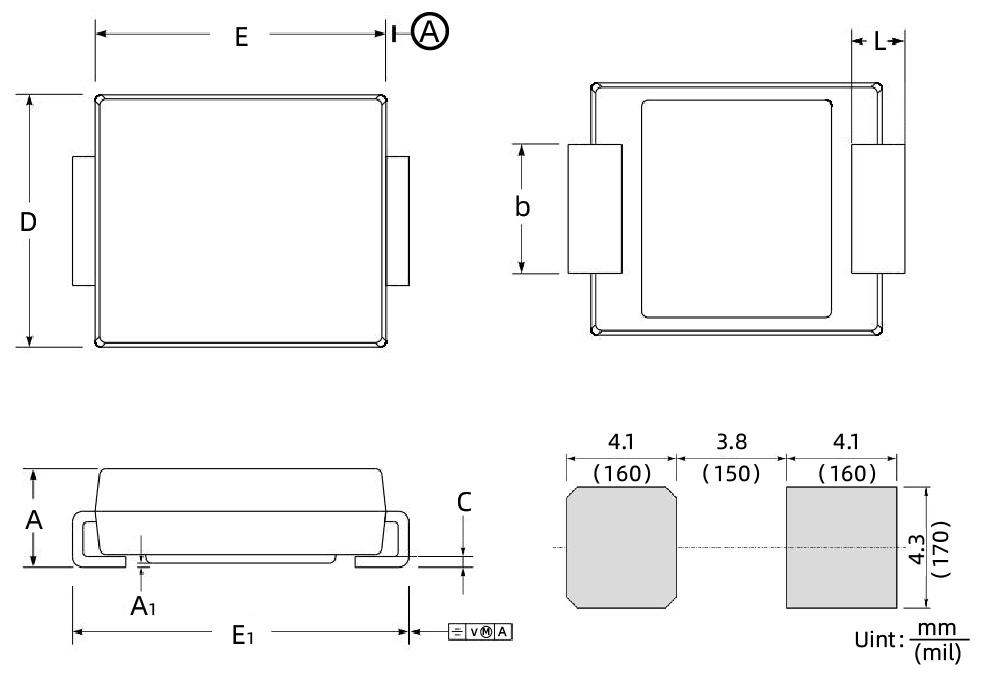

Package
| P/N | Maximum Repetitive Peak Reverse Voltage | Maximum RMS voltage | Maximum DC Blocking Voltage | Maximum Average Forward Rectified Current at Tc = 125 °C | Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load | Maximum Forward Voltage at 1 A | IR | Status | Samples | ||
| VRRM | VRMS | VDC | IF(AV) | IFSM | VF | μA | VR（V） | ||||
| ES3AC | 50 | 35 | 50 | 3 | 90 | 1.0 | 5 | 100 |  | Request sample | |
| ES3BC | 100 | 70 | 100 | 3 | 90 | 1.0 | 5 | 100 | | Request sample | |
| ES3CC | 150 | 105 | 150 | 3 | 90 | 1.0 | 5 | 100 | | Request sample | |
| ES3DC | 200 | 140 | 200 | 3 | 90 | 1.0 | 5 | 100 | | Request sample | |
| ES3EC | 300 | 210 | 300 | 3 | 90 | 1.25 | 5 | 100 | | Request sample | |
| ES3GC | 400 | 280 | 400 | 3 | 90 | 1.25 | 5 | 100 | | Request sample | |
| ES3JC | 600 | 420 | 600 | 3 | 90 | 1.68 | 5 | 100 | | Request sample | |
| ES5AC | 50 | 35 | 50 | 5 | 120 | 1.0 | 5 | 100 | | Request sample | |
| ES5BC | 100 | 70 | 100 | 5 | 120 | 1.0 | 5 | 100 | | Request sample | |
| ES5CC | 150 | 105 | 150 | 5 | 120 | 1.0 | 5 | 100 | | Request sample | |
| ES5DC | 200 | 140 | 200 | 5 | 120 | 1.0 | 5 | 100 | | Request sample | |
| ES5EC | 300 | 210 | 300 | 5 | 120 | 1.25 | 5 | 100 | | Request sample | |
| ES5GC | 400 | 280 | 400 | 5 | 120 | 1.25 | 5 | 100 | | Request sample | |
| ES5JC | 600 | 420 | 600 | 5 | 120 | 1.68 | 5 | 100 | | Request sample | |
