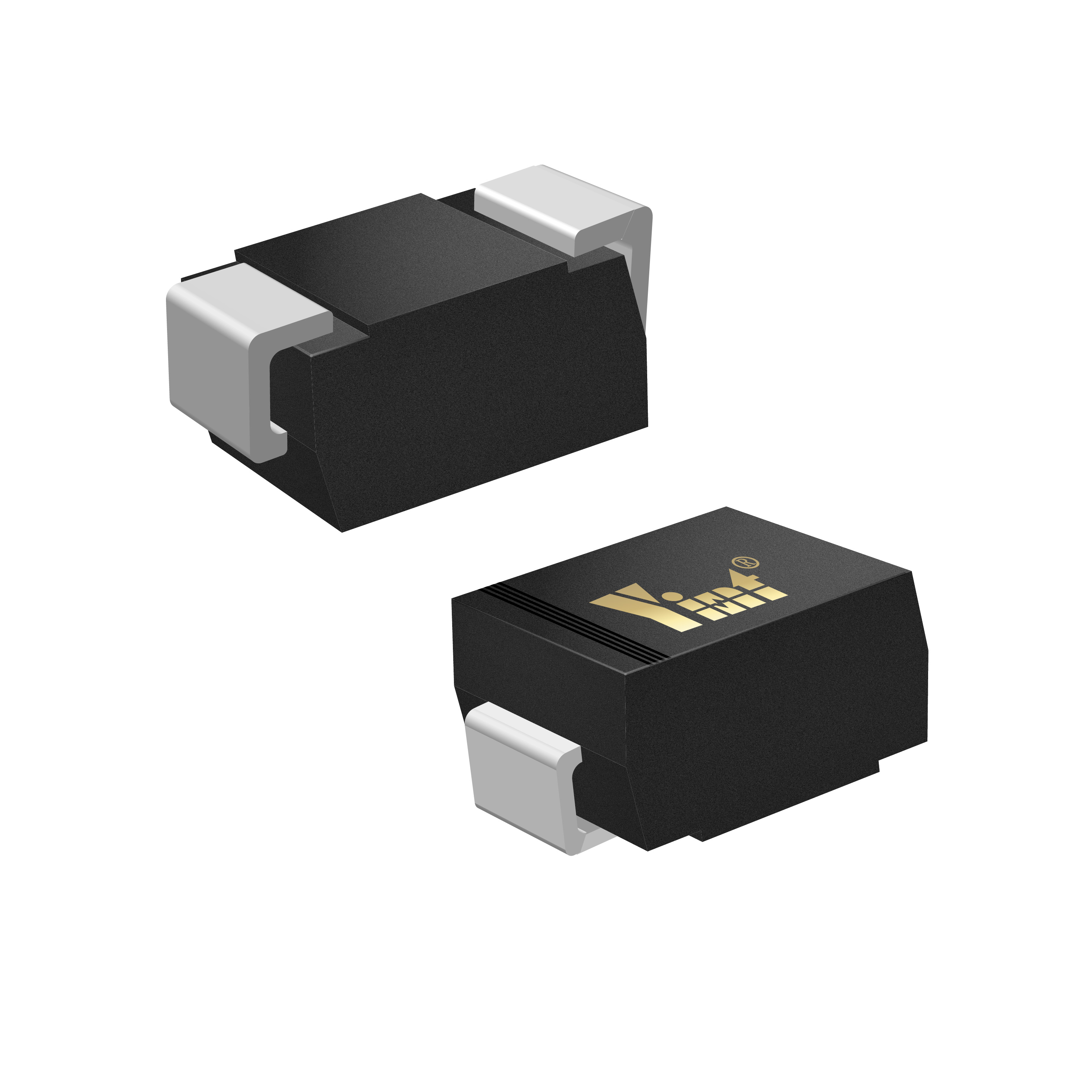

Schottky Diodes 3A series in SMB package
SS32 Thur SS320
Description
Features
Package
| P/N | VRRM | VRRS | VDC | IF(AV) | IFSM | VF | IR(25℃) | IR(100℃) | CJ | RθJA | TJ | Status | Samples |
| V | V | V | A | A | V | mA | mA | pF | ℃/W | ℃ | |||
| SS32 | 20 | 14 | 20 | 3.0 | 80 | 0.50 | 0.2 | 20 | 20 | 75 | -55to+125 |  | Request sample |
| SS33 | 30 | 21 | 30 | 3.0 | 80 | 0.55 | 0.2 | 20 | 20 | 75 | -55to+125 | | Request sample |
| SS34 | 40 | 28 | 40 | 3.0 | 80 | 0.55 | 0.05 | 20 | 20 | 75 | -55to+150 | | Request sample |
| SS35 | 50 | 35 | 50 | 3.0 | 80 | 0.70 | 0.05 | 20 | 20 | 75 | -65to+175 | | Request sample |
| SS36 | 60 | 42 | 60 | 3.0 | 80 | 0.70 | 0.05 | 20 | 20 | 75 | -65to+175 | | Request sample |
| SS38 | 80 | 56 | 80 | 3.0 | 80 | 0.85 | 0.05 | 20 | 20 | 75 | -65to+175 | | Request sample |
| SS39 | 90 | 63 | 90 | 3.0 | 80 | 0.85 | 0.05 | 20 | 20 | 75 | -65to+175 | | Request sample |
| SS310 | 100 | 70 | 100 | 3.0 | 80 | 0.85 | 0.05 | 20 | 20 | 75 | -65to+175 | | Request sample |
| SS315 | 150 | 105 | 150 | 3.0 | 80 | 0.95 | 0.02 | 20 | 20 | 75 | -65to+175 | | Request sample |
| SS320 | 200 | 140 | 200 | 3.0 | 80 | 0.95 | 0.02 | 20 | 20 | 75 | -65to+175 | | Request sample |
