TVS Diode SMCJ Series
1500W overvoltage protection device in DO-214AB package
Description
Features

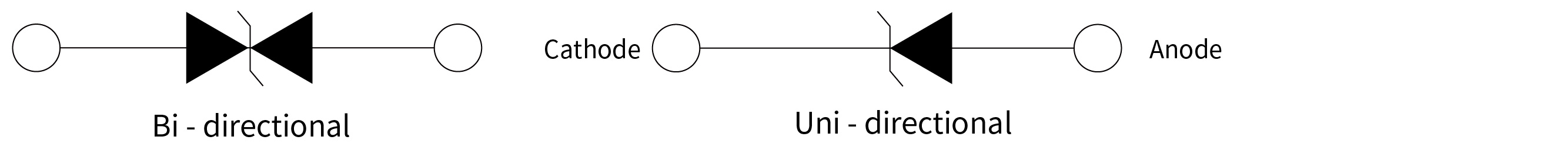

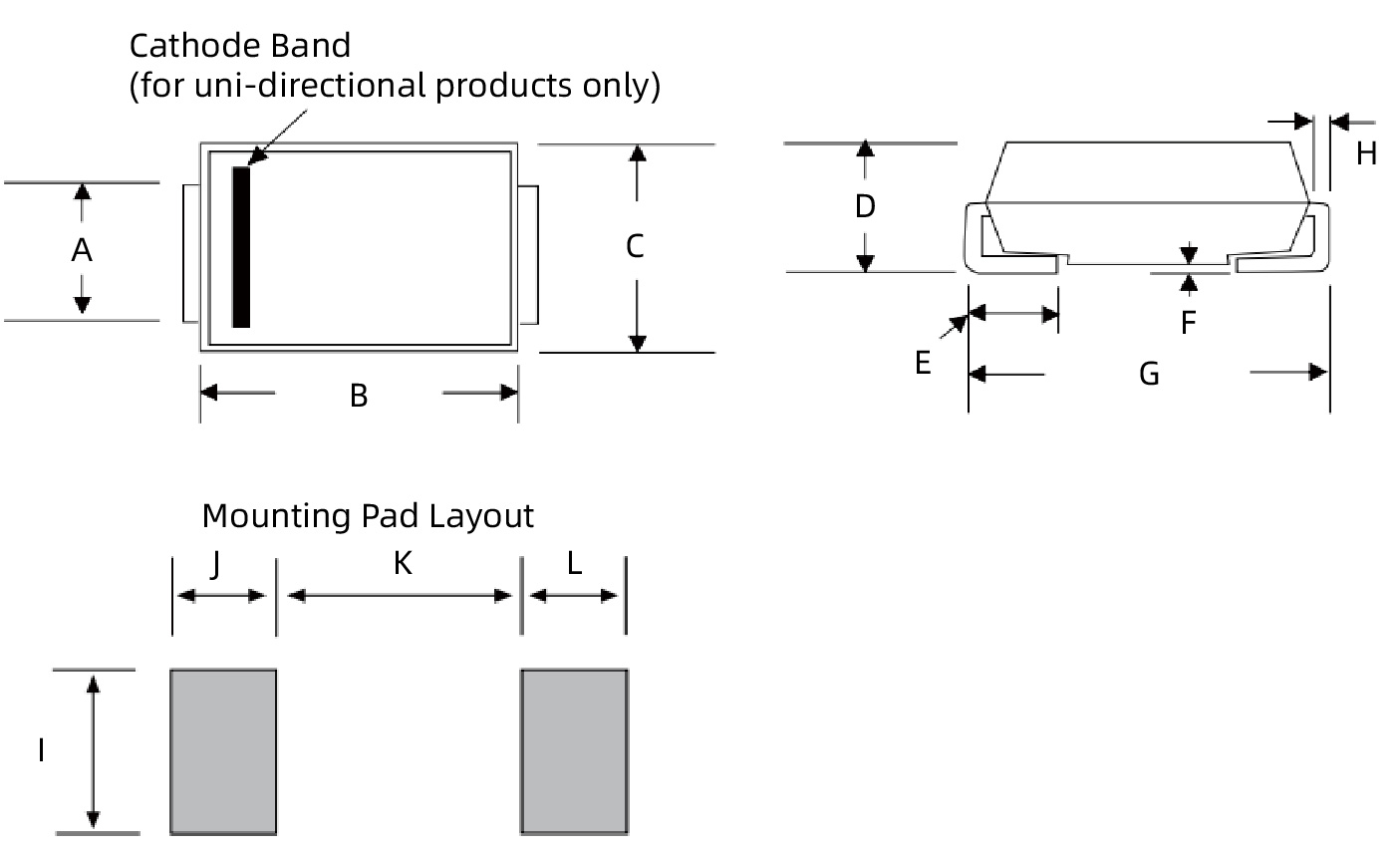

Package
| P/N | Marking | Reverse Stand off Voltage VR(Volts) | VBR | Test Current Ir(mA) | Maximum Reverse Leakage IR @VR(uA) | Maximum Peak Pulse Current Ipp (A) | Maximum Clamping Voltage Vo Ipp(V) | Status | Samples | ||||||
| Bi | Uni | BI | UNI | MIN | MAX | 25℃ | |||||||||
| SMCJ5.0CA | SMCJ5.0A | BDE | GDE | 5 | 6.4 | 7 | 10 | 500 | 163 | 9.2 |  | Request sample | |||
| SMCJ6.0CA | SMCJ6.0A | BDG | GDG | 6 | 6.67 | 7.37 | 10 | 500 | 145.6 | 10.3 | | Request sample | |||
| SMCJ 6.5CA | SMCJ 6.5A | BDK | GDK | 6.5 | 7.22 | 7.9 | 10 | 300 | 134 | 11.2 | | Request sample | |||
| SMCJ7.0 CA | SMCJ7.0 A | BDM | GDM | 7 | 7.78 | 8.6 | 10 | 200 | 125 | 12 | | Request sample | |||
| SMCJ 7.5CA | SMCJ 7.5A | BDP | GDP | 7.5 | 8.33 | 9.21 | 1 | 100 | 116.3 | 12.9 | | Request sample | |||
| SMCJ 8.0CA | SMCJ 8.0A | BDR | GDR | 8 | 8.89 | 9.83 | 1 | 50 | 110.3 | 13.6 | | Request sample | |||
| SMCJ8.5 CA | SMCJ8.5 A | BDT | GDT | 8.5 | 9.44 | 10.4 | 1 | 20 | 104.2 | 14.4 | | Request sample | |||
| SMCJ9.0 CA | SMCJ9.0 A | BDV | GDV | 9 | 10 | 11.1 | 1 | 10 | 97.4 | 15.4 | | Request sample | |||
| SMCJ10CA | SMCJ10A | BDX | GDX | 10 | 11.1 | 12.3 | 1 | 1 | 88.3 | 17 | | Request sample | |||
| SMCJ11CA | SMCJ11A | BDZ | GDZ | 11 | 12.2 | 13.5 | 1 | 1 | 82.5 | 18.2 | | Request sample | |||
| SMCJ12CA | SMCJ12A | BEE | GEE | 12 | 13.3 | 14.7 | 1 | 1 | 75.4 | 19.9 | | Request sample | |||
| SMCJ13CA | SMCJ13A | BEG | GEG | 13 | 14.4 | 15.9 | 1 | 1 | 69.8 | 21.5 | | Request sample | |||
| SMCJ14CA | SMCJ14A | BEK | GEK | 14 | 15.6 | 17.2 | 1 | 1 | 64.7 | 23.2 | | Request sample | |||
| SMCJ15CA | SMCJ15A | BEM | GEM | 15 | 16.7 | 18.5 | 1 | 1 | 61.5 | 24.4 | | Request sample | |||
| SMCJ16CA | SMCJ16A | BEP | GEP | 16 | 17.8 | 19.7 | 1 | 1 | 57.7 | 26 | | Request sample | |||
| SMCJ17CA | SMCJ17A | BER | GER | 17 | 18.9 | 20.9 | 1 | 1 | 54.4 | 27.6 | | Request sample | |||
| SMCJ18CA | SMCJ18A | BET | GET | 18 | 20 | 22.1 | 1 | 1 | 51.4 | 29.2 | | Request sample | |||
| SMCJ20CA | SMCJ20A | BEV | GEV | 20 | 22.2 | 24.5 | 1 | 1 | 46.3 | 32.4 | | Request sample | |||
| SMCJ22CA | SMCJ22A | BEX | GEX | 22 | 24.4 | 26.9 | 1 | 1 | 42.3 | 35.5 | | Request sample | |||
| SMCJ24CA | SMCJ24A | BEZ | GEZ | 24 | 26.7 | 29.5 | 1 | 1 | 38.6 | 38.9 | | Request sample | |||
| SMCJ26CA | SMCJ26A | BFE | GFE | 26 | 28.9 | 31.9 | 1 | 1 | 35.7 | 42.1 | | Request sample | |||
| SMCJ28CA | SMCJ28A | BFG | GFG | 28 | 31.1 | 34.4 | 1 | 1 | 33.1 | 45.4 | | Request sample | |||
| SMCJ30CA | SMCJ30A | BFK | GFK | 30 | 33.3 | 36.8 | 1 | 1 | 31 | 48.4 | | Request sample | |||
| SMCJ33CA | SMCJ33A | BFM | GFM | 33 | 36.7 | 40.6 | 1 | 1 | 28.2 | 53.3 | | Request sample | |||
| SMCJ36CA | SMCJ36A | BFP | GFP | 36 | 40 | 44.2 | 1 | 1 | 25.9 | 58.1 | | Request sample | |||
| SMCJ40CA | SMCJ40A | BFR | GFR | 40 | 44.4 | 49.1 | 1 | 1 | 23.3 | 64.5 | | Request sample | |||
| SMCJ43CA | SMCJ43A | BFT | GFT | 43 | 47.8 | 52.8 | 1 | 1 | 21.7 | 69.4 | | Request sample | |||
| SMCJ45CA | SMCJ45A | BFV | GFV | 45 | 50 | 55.3 | 1 | 1 | 20.6 | 72.7 | | Request sample | |||
| SMCJ48CA | SMCJ48A | BFX | GFX | 48 | 53.3 | 58.9 | 1 | 1 | 19.4 | 77.4 | | Request sample | |||
| SMCJ51CA | SMCJ51A | BFZ | GFZ | 51 | 56.7 | 62.7 | 1 | 1 | 18.2 | 82.4 | | Request sample | |||
| SMCJ54CA | SMCJ54A | BGE | GGE | 54 | 60 | 66.3 | 1 | 1 | 17.3 | 87.1 | | Request sample | |||
| SMCJ58CA | SMCJ58A | BGG | GGG | 58 | 64.4 | 71.2 | 1 | 1 | 16.1 | 93.6 | | Request sample | |||
| SMCJ60CA | SMCJ60A | BGK | GGK | 60 | 66.7 | 73.7 | 1 | 1 | 15.5 | 96.8 | | Request sample | |||
| SMCJ64CA | SMCJ64A | BGM | GGM | 64 | 71.1 | 78.6 | 1 | 1 | 14.6 | 103 | | Request sample | |||
| SMCJ70CA | SMCJ70A | BGP | GGP | 70 | 77.8 | 86 | 1 | 1 | 13.3 | 113 | | Request sample | |||
| SMCJ75CA | SMCJ75A | BGR | GGR | 75 | 83.3 | 92.1 | 1 | 1 | 12.4 | 121 | | Request sample | |||
| SMCJ78CA | SMCJ78A | BGT | GGT | 78 | 86.7 | 95.8 | 1 | 1 | 11.9 | 126 | | Request sample | |||
| SMCJ85CA | SMCJ85A | BGV | GGV | 85 | 94.4 | 104 | 1 | 1 | 11 | 137 | | Request sample | |||
| SMCJ90CA | SMCJ90A | BGX | GGX | 90 | 100 | 111 | 1 | 1 | 10.3 | 146 | | Request sample | |||
| SMCJ100CA | SMCJ100A | BGZ | GGZ | 100 | 111 | 123 | 1 | 1 | 9.3 | 162 | | Request sample | |||
| SMCJ110CA | SMCJ110A | BHE | GHE | 110 | 122 | 135 | 1 | 1 | 8.5 | 177 | | Request sample | |||
| SMCJ120CA | SMCJ120A | BHG | GHG | 120 | 133 | 147 | 1 | 1 | 7.8 | 193 | | Request sample | |||
| SMCJ130CA | SMCJ130A | BHK | GHK | 130 | 144 | 159 | 1 | 1 | 7.2 | 209 | | Request sample | |||
| SMCJ150CA | SMCJ150A | BHM | GHM | 150 | 167 | 185 | 1 | 1 | 6.2 | 243 | | Request sample | |||
| SMCJ160CA | SMCJ160A | BHP | GHP | 160 | 178 | 197 | 1 | 1 | 5.8 | 259 | | Request sample | |||
| SMCJ170CA | SMCJ170A | BHR | GHR | 170 | 189 | 209 | 1 | 1 | 5.5 | 275 | | Request sample | |||
| SMCJ180CA | SMCJ180A | BHT | GHT | 180 | 201 | 222 | 1 | 1 | 5.1 | 292 | | Request sample | |||
| SMCJ190CA | SMCJ190A | BHU | GHU | 190 | 211 | 233 | 1 | 1 | 4.8 | 308 | | Request sample | |||
| SMCJ200CA | SMCJ200A | BHV | GHV | 200 | 224 | 247 | 1 | 1 | 4.6 | 324 | | Request sample | |||
| SMCJ210CA | SMCJ210A | BHW | GHW | 210 | 237 | 263 | 1 | 1 | 4.4 | 340 | | Request sample | |||
| SMCJ220CA | SMCJ220A | BHX | GHX | 220 | 246 | 272 | 1 | 1 | 4.2 | 356 | | Request sample | |||
| SMCJ250CA | SMCJ250A | BHZ | GHZ | 250 | 279 | 309 | 1 | 1 | 3.7 | 405 | | Request sample | |||
| SMCJ300CA | SMCJ300A | BJE | GJE | 300 | 335 | 371 | 1 | 1 | 3.1 | 486 | | Request sample | |||
| SMCJ350CA | SMCJ350A | BJG | GJG | 350 | 391 | 432 | 1 | 1 | 2.6 | 567 | | Request sample | |||
| SMCJ400CA | SMCJ400A | BJK | GJK | 400 | 447 | 494 | 1 | 1 | 2.3 | 648 | | Request sample | |||
| SMCJ440CA | SMCJ440A | BJM | GJM | 440 | 492 | 543 | 1 | 1 | 2.1 | 713 | | Request sample | |||
