TVS Diode SMF Series
200W overvoltage protection device in SOD-123FL package
Description
Features

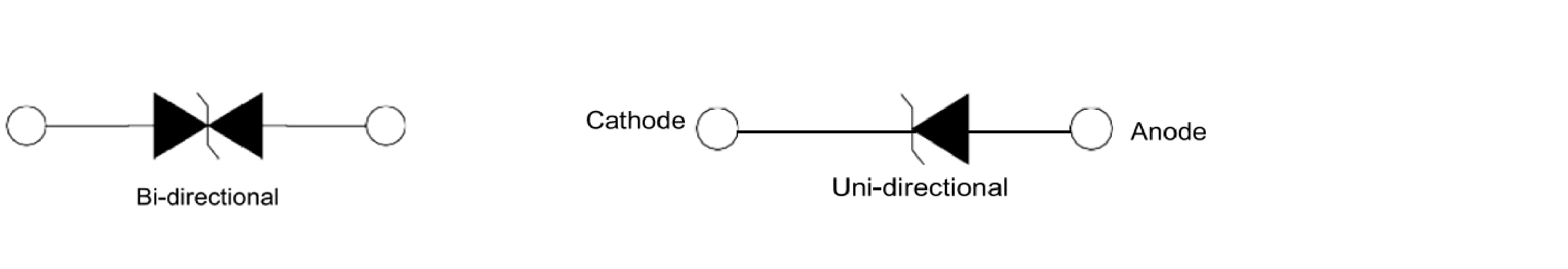

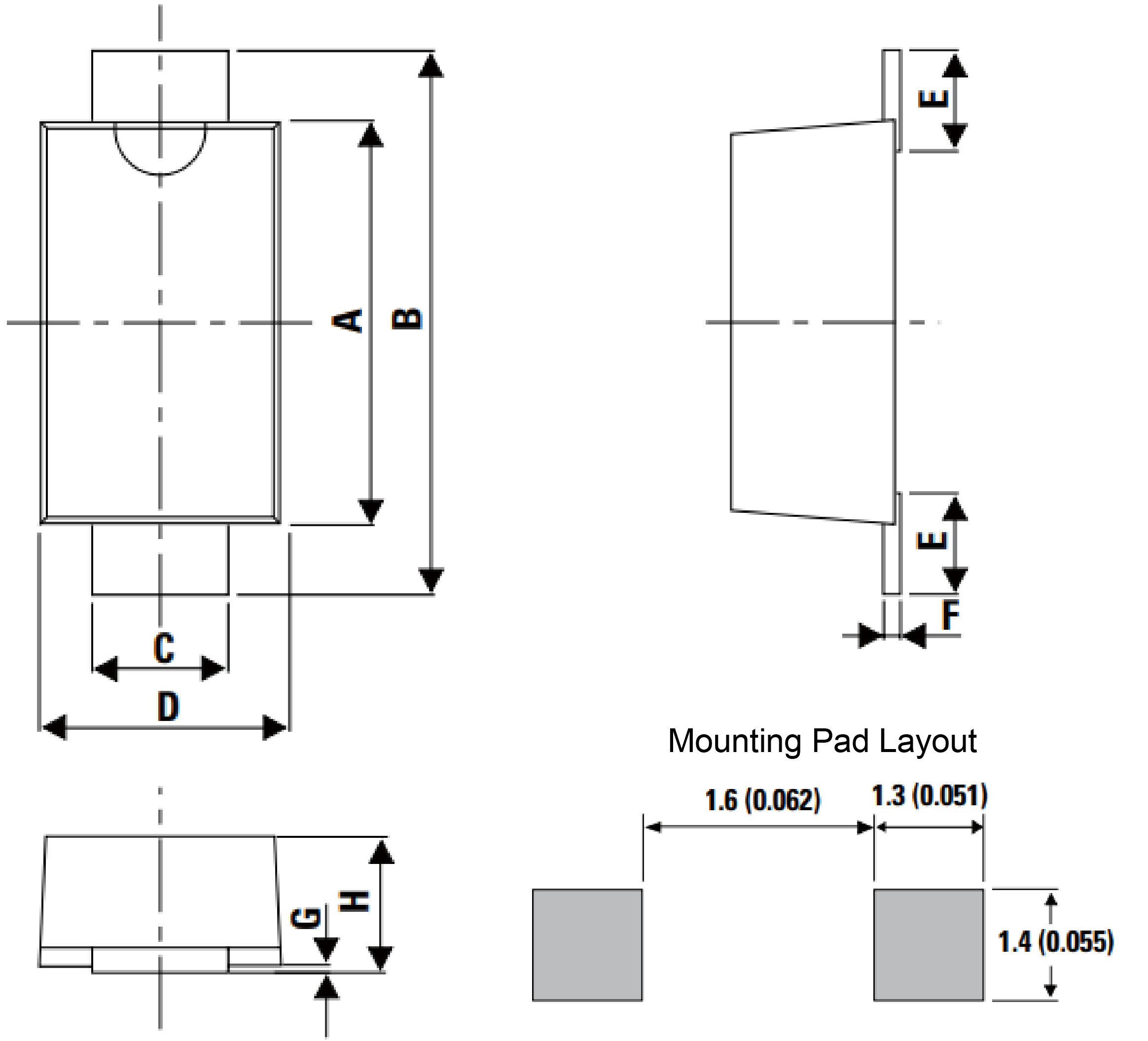

Package
| P/N | Marking | Reverse Stand off Voltage VR(Volts) | VBR | Test Current Ir(mA) | Maximum Reverse Leakage IR @VR(uA) | Maximum Peak Pulse Current Ipp (A) | Maximum Clamping Voltage Vo Ipp(V) | Status | Samples | ||||||
| Bi | Uni | BI | UNI | MIN | MAX | 25℃ | |||||||||
| SMF3.3CA | SMF3.3A | 3.3CA | 3.3CA | 3.3 | 4.1 | 6 | 10 | 150 | 27.4 | 7.3 |  | Request sample | |||
| SMF5.0CA | SMF5.0A | 5.0CA | 5.0A | 5 | 6.4 | 7 | 10 | 400 | 21.7 | 9.2 | | Request sample | |||
| SMF6.0CA | SMF6.0A | 6.0CA | 6.0A | 6 | 6.67 | 7.37 | 10 | 400 | 19.4 | 10.3 | | Request sample | |||
| SMF6.5CA | SMF6.5A | 6.5CA | 6.5A | 6.5 | 7.22 | 7.98 | 10 | 250 | 17.9 | 11.2 | | Request sample | |||
| SMF7.0CA | SMF7.0A | 7.0CA | 7.0A | 7 | 7.78 | 8.6 | 10 | 100 | 16.7 | 12 | | Request sample | |||
| SMF7.5CA | SMF7.5A | 7.5CA | 7.5A | 7.5 | 8.33 | 9.21 | 1 | 50 | 15.5 | 12.9 | | Request sample | |||
| SMF8.0CA | SMF8.0A | 8.0CA | 8.0A | 8 | 8.89 | 9.83 | 1 | 25 | 14.7 | 13.6 | | Request sample | |||
| SMF8.5CA | SMF8.5 A | 8.5CA | 8.5A | 8.5 | 9.44 | 10.4 | 1 | 10 | 13.9 | 14.4 | | Request sample | |||
| SMF9.0CA | SMF9.0 A | 9.0CA | 9.0A | 9 | 10 | 11.1 | 1 | 5 | 13 | 15.4 | | Request sample | |||
| SMF10CA | SMF10A | 10CA | 10A | 10 | 11.1 | 12.3 | 1 | 2 | 11.8 | 17 | | Request sample | |||
| SMF11CA | SMF11A | 11CA | 11A | 11 | 12.2 | 13.5 | 1 | 2 | 11 | 18.2 | | Request sample | |||
| SMF12CA | SMF12A | 12CA | 12A | 12 | 13.3 | 14.7 | 1 | 2 | 10.1 | 19.9 | | Request sample | |||
| SMF13CA | SMF13A | 13CA | 13A | 13 | 14.4 | 15.9 | 1 | 1 | 9.3 | 21.5 | | Request sample | |||
| SMF14CA | SMF14A | 14CA | 14A | 14 | 15.6 | 17.2 | 1 | 1 | 8.62 | 23.2 | | Request sample | |||
| SMF15CA | SMF15A | 15CA | 15A | 15 | 16.7 | 18.5 | 1 | 1 | 8.2 | 24.4 | | Request sample | |||
| SMF16CA | SMF16A | 16CA | 16A | 16 | 17.8 | 19.7 | 1 | 1 | 7.69 | 26 | | Request sample | |||
| SMF17CA | SMF17A | 17CA | 17A | 17 | 18.9 | 20.9 | 1 | 1 | 7.25 | 27.6 | | Request sample | |||
| SMF18CA | SMF18A | 18CA | 18A | 18 | 20 | 22.1 | 1 | 1 | 6.85 | 29.2 | | Request sample | |||
| SMF19CA | SMF19A | 19CA | 19A | 19 | 21 | 23.3 | 1 | 1 | 6.54 | 30.6 | | Request sample | |||
| SMF20CA | SMF20A | 20CA | 20A | 20 | 22.2 | 24.5 | 1 | 1 | 6.17 | 32.4 | | Request sample | |||
| SMF22CA | SMF22A | 22CA | 22A | 22 | 24.4 | 26.9 | 1 | 1 | 5.63 | 35.5 | | Request sample | |||
| SMF24CA | SMF24A | 24CA | 24A | 24 | 26.7 | 29.5 | 1 | 1 | 5.14 | 38.9 | | Request sample | |||
| SMF26CA | SMF26A | 26CA | 26A | 26 | 28.9 | 31.9 | 1 | 1 | 4.75 | 42.1 | | Request sample | |||
| SMF28CA | SMF28A | 28CA | 28A | 28 | 31.1 | 34.4 | 1 | 1 | 4.41 | 45.4 | | Request sample | |||
| SMF30CA | SMF30A | 30CA | 30A | 30 | 33.3 | 36.8 | 1 | 1 | 4.13 | 48.4 | | Request sample | |||
| SMF33CA | SMF33A | 33CA | 33A | 33 | 36.7 | 40.6 | 1 | 1 | 3.75 | 53.3 | | Request sample | |||
| SMF36CA | SMF36A | 36CA | 36A | 36 | 40 | 44.2 | 1 | 1 | 3.44 | 58.1 | | Request sample | |||
| SMF40CA | SMF40A | 40CA | 40A | 40 | 44.4 | 49.1 | 1 | 1 | 3.1 | 64.5 | | Request sample | |||
| SMF43CA | SMF43A | 43CA | 43A | 43 | 47.8 | 52.8 | 1 | 1 | 2.88 | 69.4 | | Request sample | |||
| SMF45CA | SMF45A | 45CA | 45A | 45 | 50 | 55.3 | 1 | 1 | 2.75 | 72.7 | | Request sample | |||
| SMF48CA | SMF48A | 48CA | 48A | 48 | 53.3 | 58.9 | 1 | 1 | 2.58 | 77.4 | | Request sample | |||
| SMF51CA | SMF51A | 51CA | 51A | 51 | 56.7 | 62.7 | 1 | 1 | 2.43 | 82.4 | | Request sample | |||
| SMF54CA | SMF54A | 54CA | 54A | 54 | 60 | 66.3 | 1 | 1 | 2.3 | 87.1 | | Request sample | |||
| SMF58CA | SMF58A | 58CA | 58A | 58 | 64.4 | 71.2 | 1 | 1 | 2.14 | 93.6 | | Request sample | |||
| SMF60CA | SMF60A | 60CA | 60A | 60 | 66.7 | 73.7 | 1 | 1 | 2.07 | 96.8 | | Request sample | |||
| SMF64CA | SMF64A | 64CA | 64A | 64 | 71.1 | 78.6 | 1 | 1 | 1.94 | 103 | | Request sample | |||
| SMF70CA | SMF70A | 70CA | 70A | 70 | 77.8 | 86 | 1 | 1 | 1.77 | 113 | | Request sample | |||
| SMF75CA | SMF75A | 75CA | 75A | 75 | 83.3 | 92.1 | 1 | 1 | 1.65 | 121 | | Request sample | |||
| SMF78CA | SMF78A | 78CA | 78A | 78 | 86.7 | 95.8 | 1 | 1 | 1.59 | 126 | | Request sample | |||
| SMF80CA | SMF80A | 80CA | 80A | 80 | 88.8 | 97.6 | 1 | 1 | 1.55 | 129 | | Request sample | |||
| SMF85CA | SMF85A | 85CA | 85A | 85 | 94.4 | 104 | 1 | 1 | 1.46 | 137 | | Request sample | |||
| SMF90CA | SMF90A | 90CA | 90A | 90 | 100 | 111 | 1 | 1 | 1.37 | 146 | | Request sample | |||
| SMF100CA | SMF100A | 100CA | 100A | 100 | 111 | 123 | 1 | 1 | 1.23 | 162 | | Request sample | |||
| SMF110CA | SMF110A | 110CA | 110A | 110 | 122 | 135 | 1 | 1 | 1.13 | 177 | | Request sample | |||
| SMF120CA | SMF120A | 120CA | 120A | 120 | 133 | 147 | 1 | 1 | 1.04 | 193 | | Request sample | |||
| SMF130CA | SMF130A | 130CA | 130A | 130 | 144 | 159 | 1 | 1 | 0.96 | 209 | | Request sample | |||
| SMF140CA | SMF140A | 140CA | 140A | 140 | 155 | 171 | 1 | 1 | 0.89 | 224 | | Request sample | |||
| SMF150CA | SMF150A | 150CA | 150A | 150 | 167 | 185 | 1 | 1 | 0.82 | 243 | | Request sample | |||
| SMF160CA | SMF160A | 160CA | 160A | 160 | 178 | 197 | 1 | 1 | 0.77 | 259 | | Request sample | |||
| SMF170CA | SMF170A | 170CA | 170A | 170 | 189 | 209 | 1 | 1 | 0.73 | 275 | | Request sample | |||
| SMF180CA | SMF180A | 180CA | 180A | 180 | 200 | 220 | 1 | 1 | 0.69 | 290 | | Request sample | |||
| SMF200CA | SMF200A | 200CA | 200A | 200 | 224 | 247 | 1 | 1 | 0.60 | 324 | | Request sample | |||
