Zener diode Y3ZP2D series
overvoltage protection device in SOD-323package
Description
Features

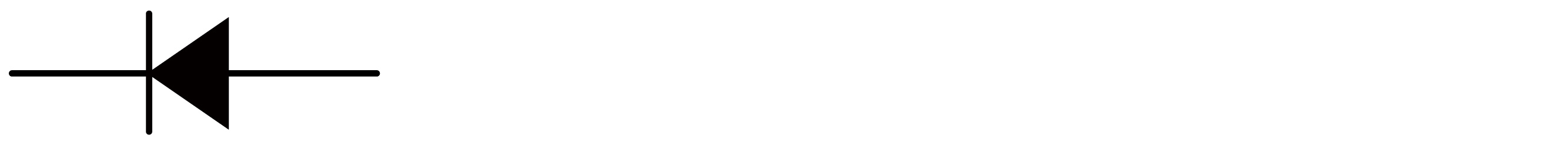

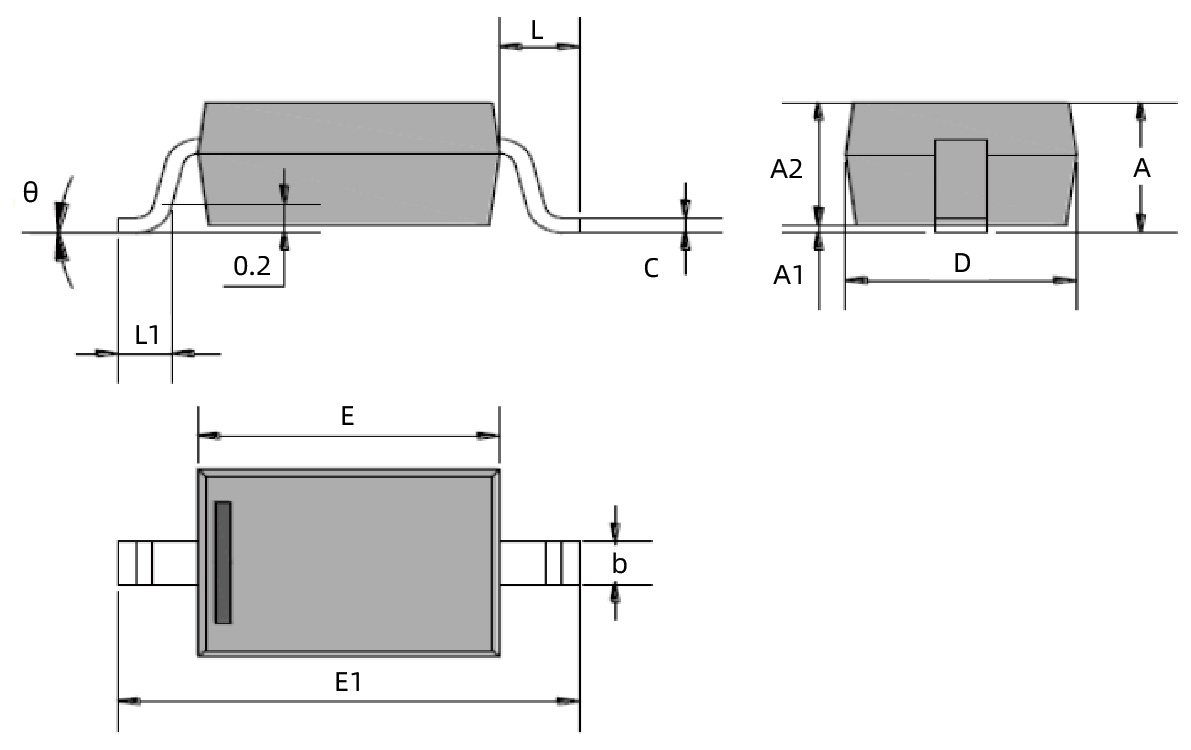

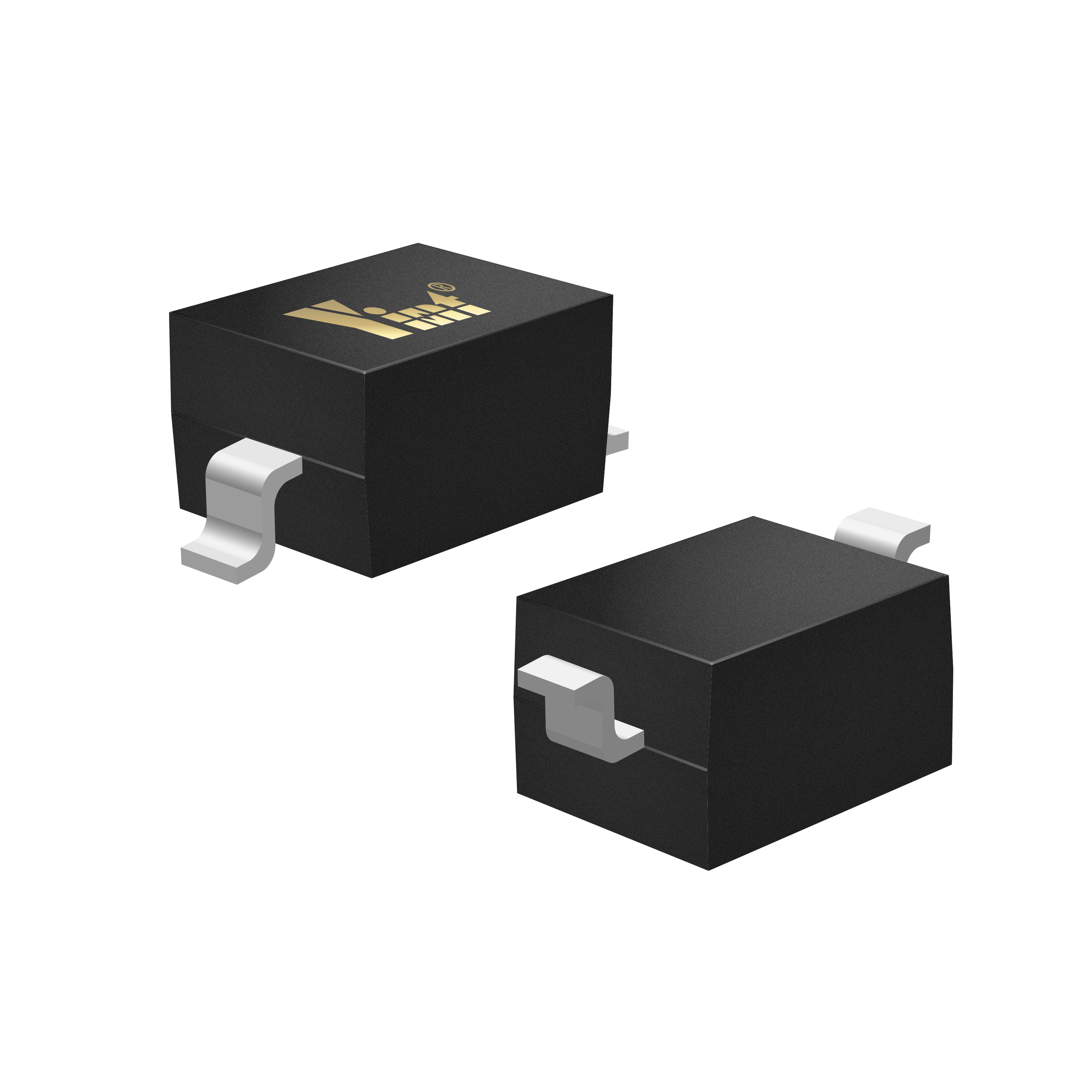

Package
| Parameter | Symbol | Value | Unit |
| Power Dissipation | Ptot | 200 | mW |
| Zener current | IZ | PV/VZ | mA |
| Junction Temperature | Tj, | 150 | ℃ |
| Storage Temperature Range | Tstg | -55～+150 | ℃ |
| P/N | Zener Voltage Range | IZT | Dynamic Impedance | Reverse Current | Power Dissipation | Status | Samples | ||||||
| VZT(at IZT) | ZZT@IZT | IR | at VR | Ptot | |||||||||
| Min (V) | Nom (V) | Max (V) | (mA) | Max (Ω) | Max (μA) | (V) | W | ||||||
| Y3ZP2D2V4 | 2.35 | 2.4 | 2.45 | 5 | 100 | 50 | 1 | 0.2 |  | Request sample | |||
| Y3ZP2D2V7 | 2.65 | 2.7 | 2.75 | 5 | 100 | 20 | 1 | 0.2 | | Request sample | |||
| Y3ZP2D3V0 | 2.94 | 3 | 3.06 | 5 | 95 | 10 | 1 | 0.2 | | Request sample | |||
| Y3ZP2D3V3 | 3.23 | 3.3 | 3.37 | 5 | 95 | 5 | 1 | 0.2 | | Request sample | |||
| Y3ZP2D3V6 | 3.53 | 3.6 | 3.67 | 5 | 90 | 5 | 1 | 0.2 | | Request sample | |||
| Y3ZP2D3V9 | 3.82 | 3.9 | 3.98 | 5 | 90 | 3 | 1 | 0.2 | | Request sample | |||
| Y3ZP2D4V3 | 4.21 | 4.3 | 4.39 | 5 | 90 | 3 | 1 | 0.2 | | Request sample | |||
| Y3ZP2D4V7 | 4.61 | 4.7 | 4.79 | 5 | 80 | 3 | 2 | 0.2 | | Request sample | |||
| Y3ZP2D5V1 | 5 | 5.1 | 5.2 | 5 | 60 | 2 | 2 | 0.2 | | Request sample | |||
| Y3ZP2D5V6 | 5.49 | 5.6 | 5.71 | 5 | 40 | 1 | 2 | 0.2 | | Request sample | |||
| Y3ZP2D6V2 | 6.08 | 6.2 | 6.32 | 5 | 10 | 3 | 4 | 0.2 | | Request sample | |||
| Y3ZP2D6V8 | 6.66 | 6.8 | 6.94 | 5 | 15 | 2 | 4 | 0.2 | | Request sample | |||
| Y3ZP2D7V5 | 7.35 | 7.5 | 7.65 | 5 | 15 | 1 | 5 | 0.2 | | Request sample | |||
| Y3ZP2D8V2 | 8.04 | 8.2 | 8.36 | 5 | 15 | 0.7 | 5 | 0.2 | | Request sample | |||
| Y3ZP2D9V1 | 8.92 | 9.1 | 9.28 | 5 | 15 | 0.5 | 6 | 0.2 | | Request sample | |||
| Y3ZP2D10 | 9.8 | 10 | 10.2 | 5 | 20 | 0.2 | 7 | 0.2 | | Request sample | |||
| Y3ZP2D11 | 10.78 | 11 | 11.22 | 5 | 20 | 0.1 | 8 | 0.2 | | Request sample | |||
| Y3ZP2D12 | 11.76 | 12 | 12.24 | 5 | 25 | 0.1 | 8 | 0.2 | | Request sample | |||
| Y3ZP2D13 | 12.74 | 13 | 13.28 | 5 | 30 | 0.1 | 8 | 0.2 | | Request sample | |||
| Y3ZP2D14 | 13.72 | 14 | 14.28 | 5 | 25 | 0.1 | 10.5 | 0.2 | | Request sample | |||
| Y3ZP2D15 | 14.7 | 15 | 15.3 | 5 | 30 | 0.1 | 10.5 | 0.2 | | Request sample | |||
| Y3ZP2D16 | 15.68 | 16 | 16.32 | 5 | 40 | 0.1 | 11.2 | 0.2 | | Request sample | |||
| Y3ZP2D18 | 17.64 | 18 | 18.36 | 5 | 45 | 0.1 | 12.6 | 0.2 | | Request sample | |||
| Y3ZP2D20 | 19.6 | 20 | 20.4 | 5 | 55 | 0.1 | 14 | 0.2 | | Request sample | |||
| Y3ZP2D22 | 21.56 | 22 | 22.44 | 5 | 55 | 0.1 | 15.4 | 0.2 | | Request sample | |||
| Y3ZP2D24 | 23.52 | 24 | 24.48 | 5 | 70 | 0.1 | 16.8 | 0.2 | | Request sample | |||
| Y3ZP2D27 | 26.46 | 27 | 27.54 | 2 | 80 | 0.1 | 18.9 | 0.2 | | Request sample | |||
| Y3ZP2D30 | 29.4 | 30 | 30.6 | 2 | 80 | 0.1 | 21 | 0.2 | | Request sample | |||
| Y3ZP2D33 | 32.34 | 33 | 33.66 | 2 | 80 | 0.1 | 23.1 | 0.2 | | Request sample | |||
| Y3ZP2D36 | 35.28 | 36 | 36.72 | 2 | 90 | 0.1 | 25.2 | 0.2 | | Request sample | |||
| Y3ZP2D39 | 38.22 | 39 | 39.78 | 2 | 130 | 0.1 | 27.3 | 0.2 | | Request sample | |||
| Y3ZP2D43 | 42.14 | 43 | 43.86 | 2 | 130 | 0.1 | 29.4 | 0.2 | | Request sample | |||
| Y3ZP2D47 | 45.83 | 47 | 48.17 | 2 | 170 | 0.1 | 36 | 0.2 | | Request sample | |||
| Y3ZP2D51 | 49.73 | 51 | 52.27 | 2 | 180 | 0.1 | 39 | 0.2 | | Request sample | |||
| Y3ZP2D56 | 54.6 | 56 | 57.4 | 2 | 200 | 0.1 | 43 | 0.2 | | Request sample | |||
| Y3ZP2D62 | 60.45 | 62 | 63.55 | 2 | 225 | 0.1 | 47 | 0.2 | | Request sample | |||
| Y3ZP2D68 | 66.3 | 68 | 69.7 | 2 | 240 | 0.1 | 52 | 0.2 | | Request sample | |||
| Y3ZP2D75 | 73.13 | 75 | 76.87 | 2 | 265 | 0.1 | 56 | 0.2 | | Request sample | |||
