Gas Discharge Tubes 2RS-6×4.2 Series
overvoltage protection device in 6×4.2 dimension
Description
Features

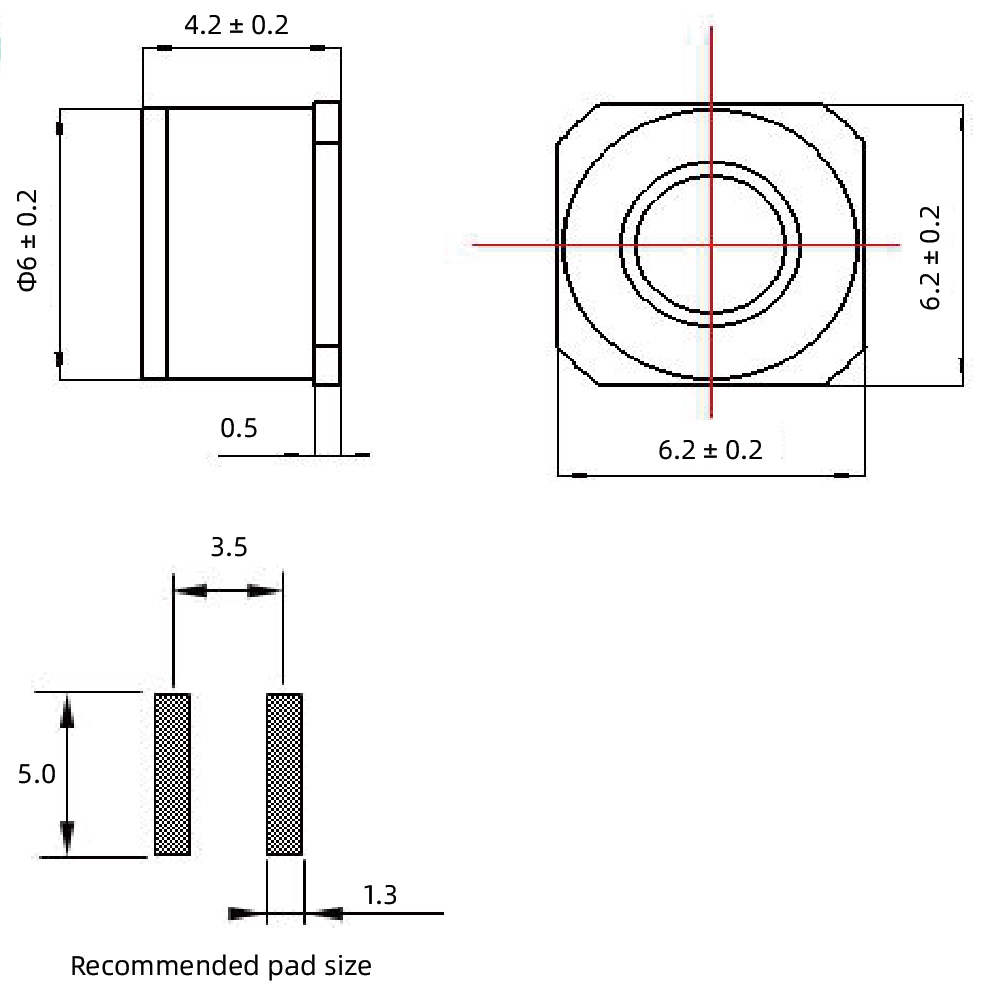

Package
| Part Number | DC Breakdown Voltage | Tolerance | Impulse Spark-over Voltage | Impulse Discharge Current 10hits (5hits each polarity) | AC Discharge Current 5 hits | Insulation Resistance* | Capacitance | Status | Samples |
| 100V/s (V) | of Vs | 1KV/μs (V) | 8/20μs | 50Hz | GΩ | 1MHz | |||
| 2R075S-6×4.2 | 75V | ±20% | ≤600V | 5KA | 5A | ≥10 | ≤1pF |  | Request sample |
| 2R090S-6×4.2 | 90V | ±20% | ≤600V | 5KA | 5A | ≥10 | ≤1pF | | Request sample |
| 2R150S-6×4.2 | 150V | ±20% | ≤600V | 5KA | 5A | ≥10 | ≤1pF | | Request sample |
| 2R200S-6×4.2 | 200V | ±20% | ≤700V | 5KA | 5A | ≥10 | ≤1pF | | Request sample |
| 2R230S-6×4.2 | 230V | ±20% | ≤700V | 5KA | 5A | ≥10 | ≤1pF | | Request sample |
| 2R300S-6×4.2 | 300V | ±20% | ≤900V | 5KA | 5A | ≥10 | ≤1pF | | Request sample |
| 2R350S-6×4.2 | 350V | ±20% | ≤1000V | 5KA | 5A | ≥10 | ≤1pF | | Request sample |
| 2R400S-6×4.2 | 400V | ±20% | ≤1000V | 5KA | 5A | ≥10 | ≤1pF | | Request sample |
| 2R470S-6×4.2 | 470V | ±20% | ≤1200V | 5KA | 5A | ≥10 | ≤1pF | | Request sample |
| 2R600S-6×4.2 | 600V | ±20% | ≤1400V | 5KA | 5A | ≥10 | ≤1pF | | Request sample |
| 2R1000S-6×4.2 | 1000V | ±20% | ≤1800V | 3KA | 5A | ≥1 | ≤1pF | | Request sample |
Related Application
DC 12V
RS-485
DC 24V
LIN
DC 48V
RJ45
CAN
POE
