3R***L-6×8 Series 3 Electrodes Gas Discharge Tube

Gas discharge tubes eliminate the surge voltage by the principle of gas ionization discharge. They have high insulation resistance, low capacitance and low leakage current to ensure minimal effect on normal operation of equipment.
Availability:
Quantity:

YINT provides high-performance and small size packaging (DIP/SMD) gas discharge tubes with fast response speed and surge suppression capability, which reduces the risk of equipment damage, this is also a good choice for protecting devices from damaging by surge current caused by lightning, especially suitable for outdoor telecommunications equipment.


Specifications

Brand: YINT

Min. Order: 1 piece

Packaging: in case

Certification: UL No: E511538, RoHS

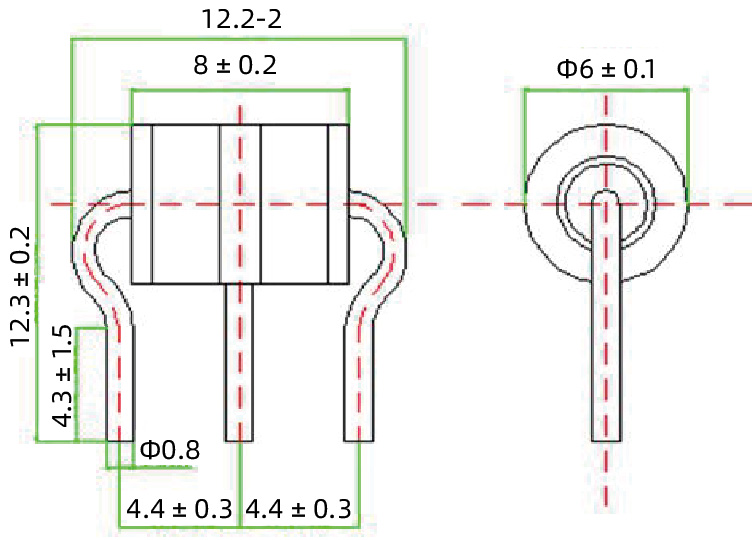

Size: 6mm*8mm

Stable breakdown voltage.

High insulation resistance.

Low capacitance (≤1pF)

High holdover voltage

Storage and operational temperature: -40℃ ~ +90℃



1) At delivery AQL 0.65 leave Ⅱ Military Standard 105 E.

2) In ionized mode

3) Test according to ITU-T Rec.k.12


Hot Tags: 3r***l-6×8 series 3 electrodes gas discharge tube, China, manufacturers, factory, price, 3 Electrode Gas Discharge Tube, Radial Gas Discharge Tube, 3 Electrodes Radial Gas Discharge Tube, Gas Discharge Tube, 2 electrode gas discharge tube, GDT Lightening Arrestors

Part Number DC
 Breakdown Voltage
Tolerance Impulse Spark-over Voltage Impulse Discharge Current 10hits(5hits
each polarity)
AC Discharge Current 5 hits Insulation Resistance* Capacitance
100V/s of Vs 1kv/μs 8/20μs 50Hz 1MHz
3R075L-6×8 75V ±20% ≤600V 10KA 10A ≥10 ≤1pF
3R090L-6×8 90V ±20% ≤600V 10KA 10A ≥10 ≤1pF
3R150L-6×8 150V ±20% ≤600V 10KA 10A ≥10 ≤1pF
3R200L-6×8 200V ±20% ≤700V 10KA 10A ≥10 ≤1pF
3R230L-6×8 230V ±20% ≤700V 10KA 10A ≥10 ≤1pF
3R300L-6×8 300V ±20% ≤900V 10KA 10A ≥10 ≤1pF
3R350L-6×8 350V ±20% ≤1000V 10KA 10A ≥10 ≤1pF
3R400L-6×8 400V ±20% ≤1000V 10KA 10A ≥10 ≤1pF
3R470L-6×8 470V ±20% ≤1200V 10KA 10A ≥10 ≤1pF
3R600L-6×8 600V ±20% ≤1400V 10KA 10A ≥10 ≤1pF
