Gas Discharge Tubes 3RL 8×10 Series
overvoltage protection device in 8×10 dimension
Description
Features

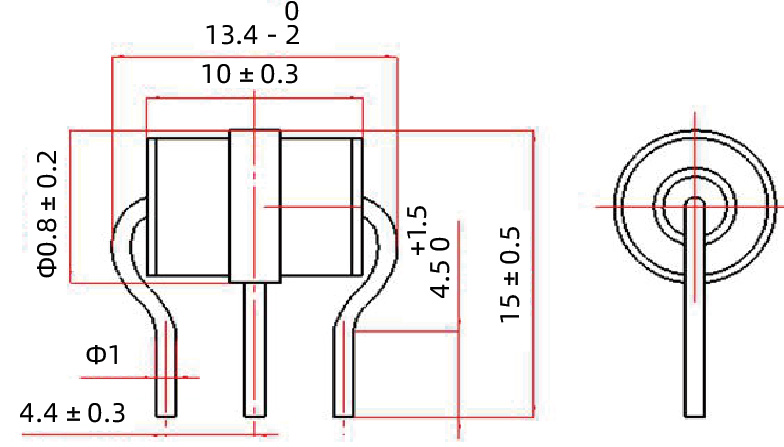

Package
| Part Number | DC Breakdown Voltage | Tolerance | Impulse Spark-over Voltage | Impulse Discharge Current 10hits (5hits each polarity) | AC Discharge Current 5 hits | Insulation Resistance* | Capacitance | Status | Samples |
| 100V/s (V) | of Vs | 1KV/μs (V) | 8/20μs | 50Hz | GΩ | 1MHz | |||
| 3R075L-8×10 | 75V | ±20% | ≤600V | 10KA | 10A | ≥10 | ≤1pF |  | Request sample |
| 3R090L-8×10 | 90V | ±20% | ≤600V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 3R150L-8×10 | 150V | ±20% | ≤600V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 3R200L-8×10 | 200V | ±20% | ≤700V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 3R230L-8×10 | 230V | ±20% | ≤700V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 3R300L-8×10 | 300V | ±20% | ≤900V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 3R350L-8×10 | 350V | ±20% | ≤1000V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 3R400L-8×10 | 400V | ±20% | ≤1000V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 3R470L-8×10 | 470V | ±20% | ≤1200V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
| 3R600L-8×10 | 600V | ±20% | ≤1400V | 10KA | 10A | ≥10 | ≤1pF | | Request sample |
Related Application
DC 12V
CAN
DC 24V
LNB
DC 48V
HD Analog
POE
G.Fast
