MOV Varistors 10D K Series
18V~1800V overvoltage protection device common series
Description
Features

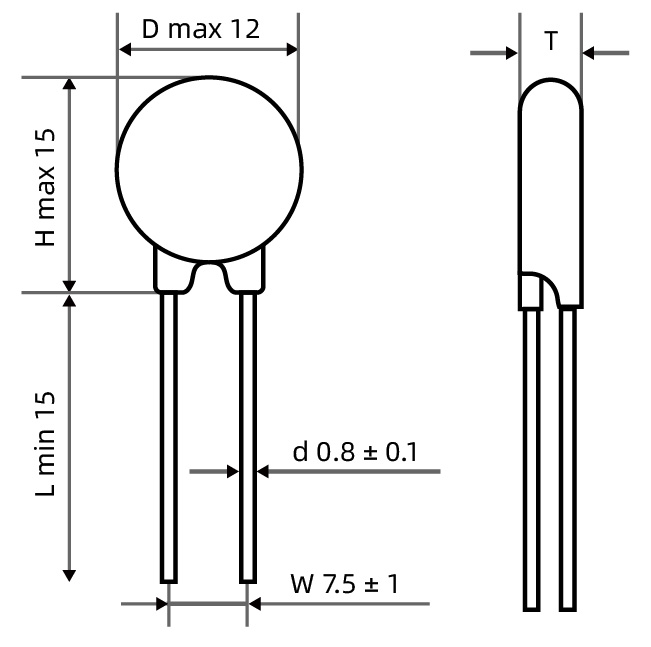

Package

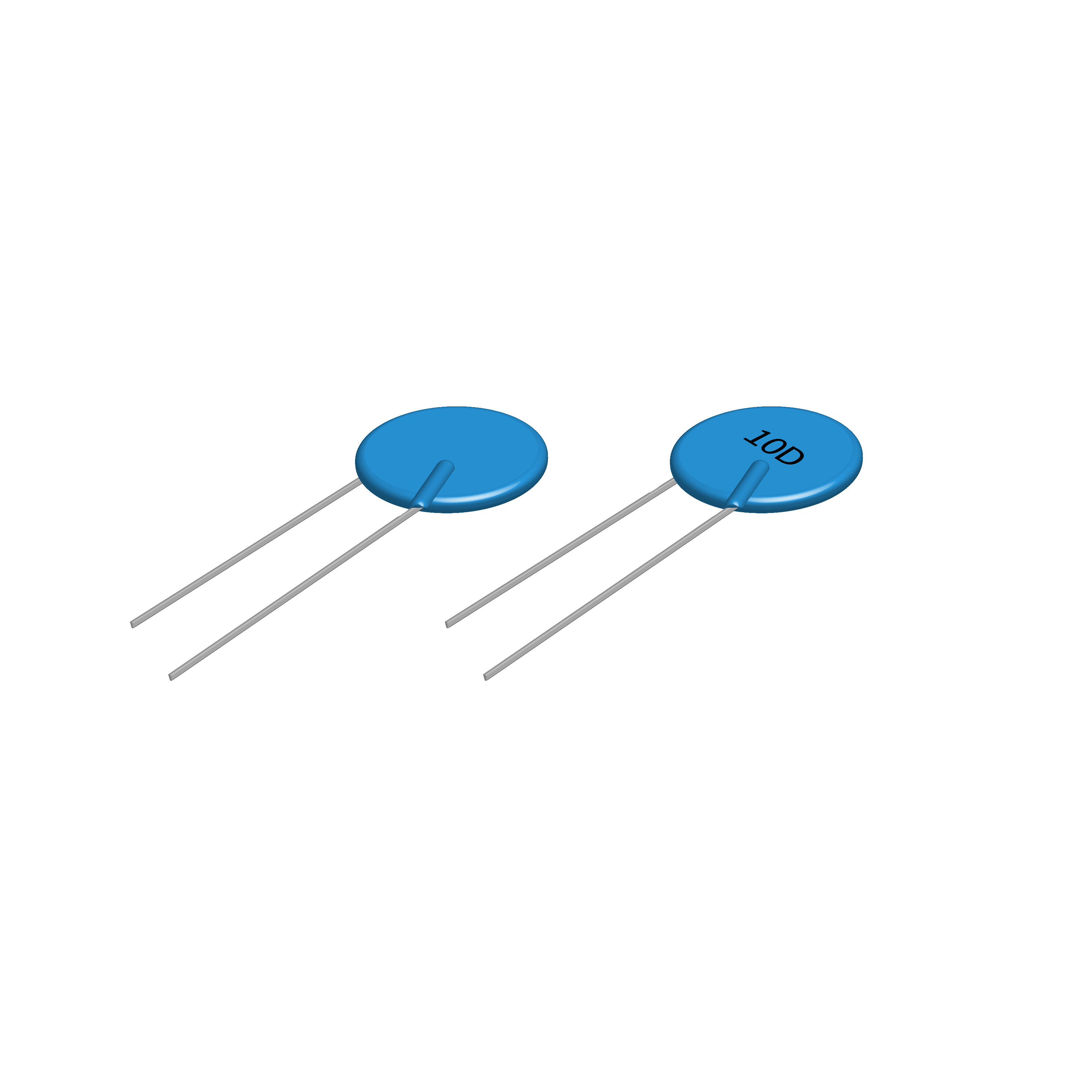

Product shape
| P/N | Varistor Voltage | Maximum allowable voltage | Maximum Limited Voltage | Withstanding Surge current(（1.2/50μs&8/20μs）) | Rated Wattage | Energy （10/1000μs） | Typical Capacitance | Status | Samples | ||||||
| V1mA（V） | AC（V） | DC（V） | V5A（V） | Imax | In | （W） | （J） | 1KHz(PF) | |||||||
| 10D180K | 18 | 16-20 | 11 | 14 | 38 | 500 | 一 | 0.05 | 2.8 | 6500 |  | Request sample | |||
| 10D220K | 22 | 20-24 | 14 | 18 | 43 | 500 | 一 | 0.05 | 3.5 | 5000 | | Request sample | |||
| 10D270K | 27 | 24-30 | 17 | 22 | 53 | 500 | 一 | 0.05 | 4.2 | 4200 | | Request sample | |||
| 10D330K | 33 | 30-36 | 20 | 26 | 65 | 500 | 一 | 0.05 | 5.2 | 3700 | | Request sample | |||
| 10D390K | 39 | 35-43 | 25 | 31 | 77 | 500 | 一 | 0.05 | 6.2 | 3300 | | Request sample | |||
| 10D470K | 47 | 42-52 | 30 | 38 | 93 | 500 | 一 | 0.05 | 7.4 | 2900 | | Request sample | |||
| 10D560K | 56 | 50-62 | 35 | 45 | 110 | 500 | 一 | 0.05 | 8.8 | 2500 | | Request sample | |||
| 10D680K | 68 | 61-75 | 40 | 56 | 135 | 500 | 一 | 0.05 | 11 | 2100 | | Request sample | |||
| 10D820K | 82 | 74-90 | 50 | 65 | 135 | 2500 | 1500 | 0.4 | 13 | 1700 | | Request sample | |||
| 10D101K | 100 | 90-100 | 60 | 85 | 165 | 2500 | 1500 | 0.4 | 16 | 1500 | | Request sample | |||
| 10D121K | 120 | 108-132 | 75 | 100 | 200 | 2500 | 1500 | 0.4 | 19 | 1300 | | Request sample | |||
| 10D151K | 150 | 135-165 | 95 | 125 | 250 | 2500 | 1500 | 0.4 | 24 | 1000 | | Request sample | |||
| 10D181K | 180 | 162-198 | 115 | 150 | 300 | 2500 | 1500 | 0.4 | 28 | 770 | | Request sample | |||
| 10D201K | 200 | 185-225 | 130 | 170 | 340 | 2500 | 1500 | 0.4 | 32 | 560 | | Request sample | |||
| 10D221K | 220 | 198-242 | 140 | 180 | 360 | 2500 | 1500 | 0.4 | 35 | 440 | | Request sample | |||
| 10D241K | 240 | 216-264 | 150 | 200 | 395 | 2500 | 1500 | 0.4 | 38 | 410 | | Request sample | |||
| 10D271K | 270 | 243-297 | 175 | 225 | 455 | 2500 | 1500 | 0.4 | 43 | 380 | | Request sample | |||
| 10D301K | 300 | 270-330 | 195 | 250 | 500 | 2500 | 1500 | 0.4 | 47 | 340 | | Request sample | |||
| 10D331K | 330 | 297-363 | 215 | 275 | 550 | 2500 | 1500 | 0.4 | 52 | 330 | | Request sample | |||
| 10D361K | 360 | 324-396 | 230 | 300 | 595 | 2500 | 1500 | 0.4 | 57 | 310 | | Request sample | |||
| 10D391K | 390 | 351-429 | 250 | 320 | 650 | 2500 | 1500 | 0.4 | 61 | 290 | | Request sample | |||
| 10D431K | 430 | 387-473 | 275 | 350 | 710 | 2500 | 1500 | 0.4 | 68 | 270 | | Request sample | |||
| 10D471K | 470 | 423-517 | 300 | 385 | 775 | 2500 | 1500 | 0.4 | 74 | 240 | | Request sample | |||
| 10D511K | 510 | 459-561 | 320 | 410 | 845 | 2500 | 1500 | 0.4 | 74 | 230 | | Request sample | |||
| 10D561K | 560 | 504-616 | 350 | 455 | 930 | 2500 | 1500 | 0.4 | 74 | 230 | | Request sample | |||
| 10D621K | 620 | 558-682 | 385 | 505 | 1025 | 2500 | 1500 | 0.4 | 74 | 190 | | Request sample | |||
| 10D681K | 680 | 612-748 | 420 | 560 | 1120 | 2500 | 1500 | 0.4 | 74 | 170 | | Request sample | |||
| 10D751K | 750 | 657-825 | 460 | 615 | 1240 | 2500 | 1500 | 0.4 | 75 | 160 | | Request sample | |||
| 10D781K | 780 | 702-858 | 485 | 640 | 1290 | 2500 | 1500 | 0.4 | 78 | 160 | | Request sample | |||
| 10D821K | 820 | 738-902 | 510 | 670 | 1355 | 2500 | 1500 | 0.4 | 85 | 160 | | Request sample | |||
| 10D911K | 910 | 819-1001 | 550 | 745 | 1500 | 2500 | 1500 | 0.4 | 93 | 150 | | Request sample | |||
| 10D951K | 950 | 855-1045 | 580 | 780 | 1570 | 2500 | 1500 | 0.4 | 97 | 130 | | Request sample | |||
| 10D102K | 1000 | 900-1100 | 625 | 825 | 1650 | 2500 | 1500 | 0.4 | 102 | 120 | | Request sample | |||
| 10D112K | 1100 | 990-1210 | 680 | 895 | 1815 | 2500 | 1500 | 0.4 | 115 | 110 | | Request sample | |||
| 10D152K | 1500 | 1350-1650 | 900 | 1220 | 2475 | 2500 | 1500 | 0.4 | 155 | 100 | | Request sample | |||
| 10D182K | 1800 | 1620-1980 | 1000 | 1465 | 2970 | 2500 | 1500 | 0.4 | 185 | 80 | | Request sample | |||
