MOV Varistors 14D K Series
18V~1.8KV overvoltage protection device common series
Description
Features

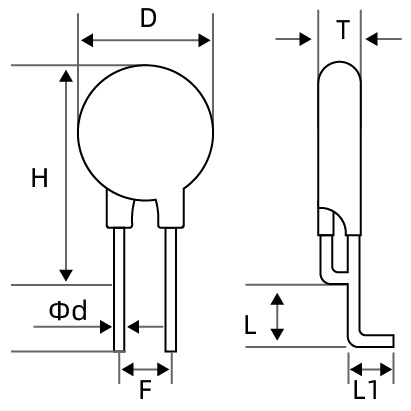

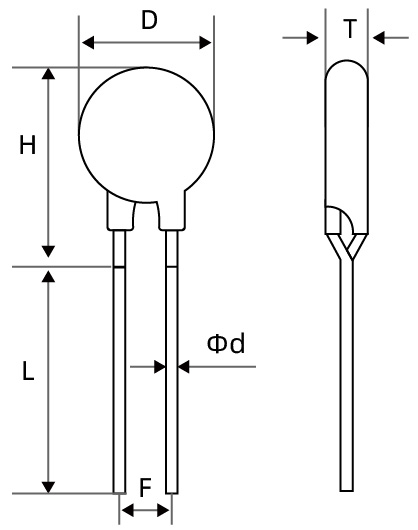

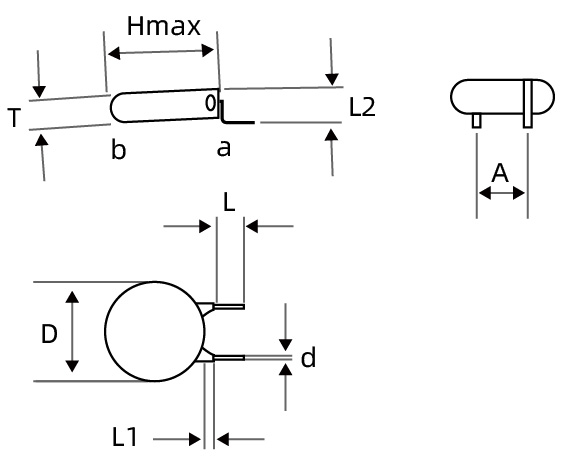

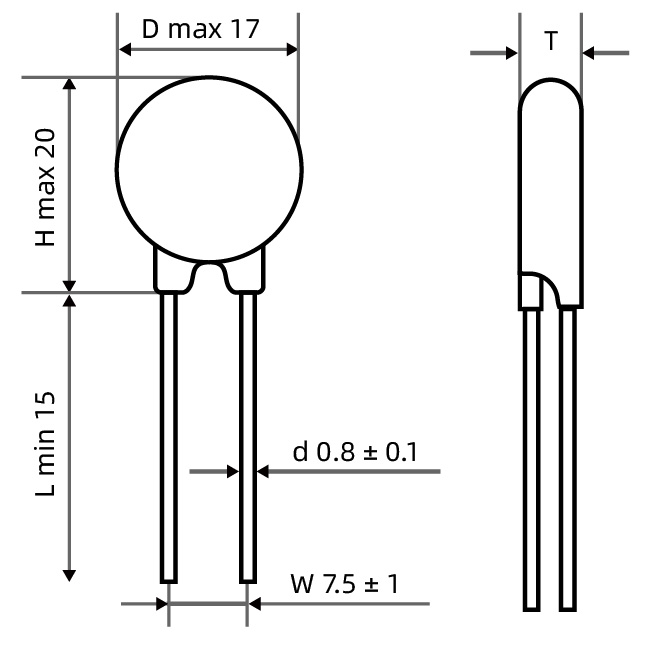

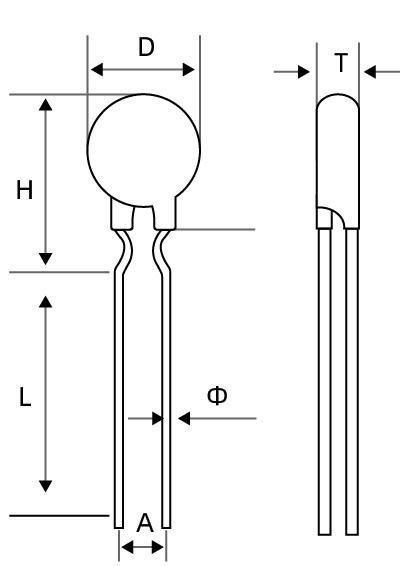

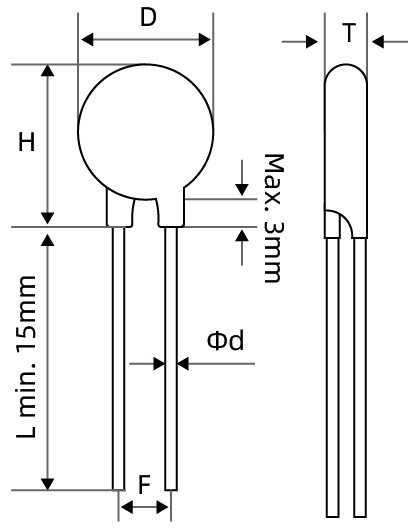

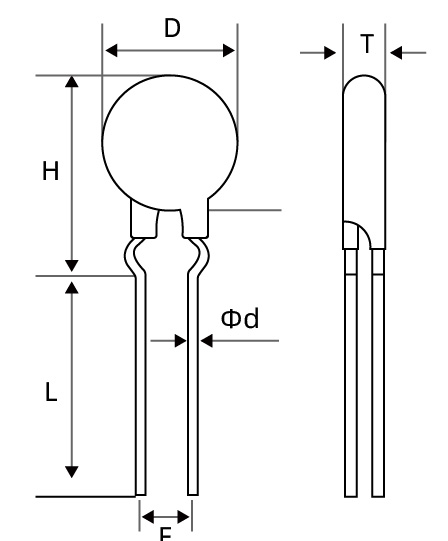

Package

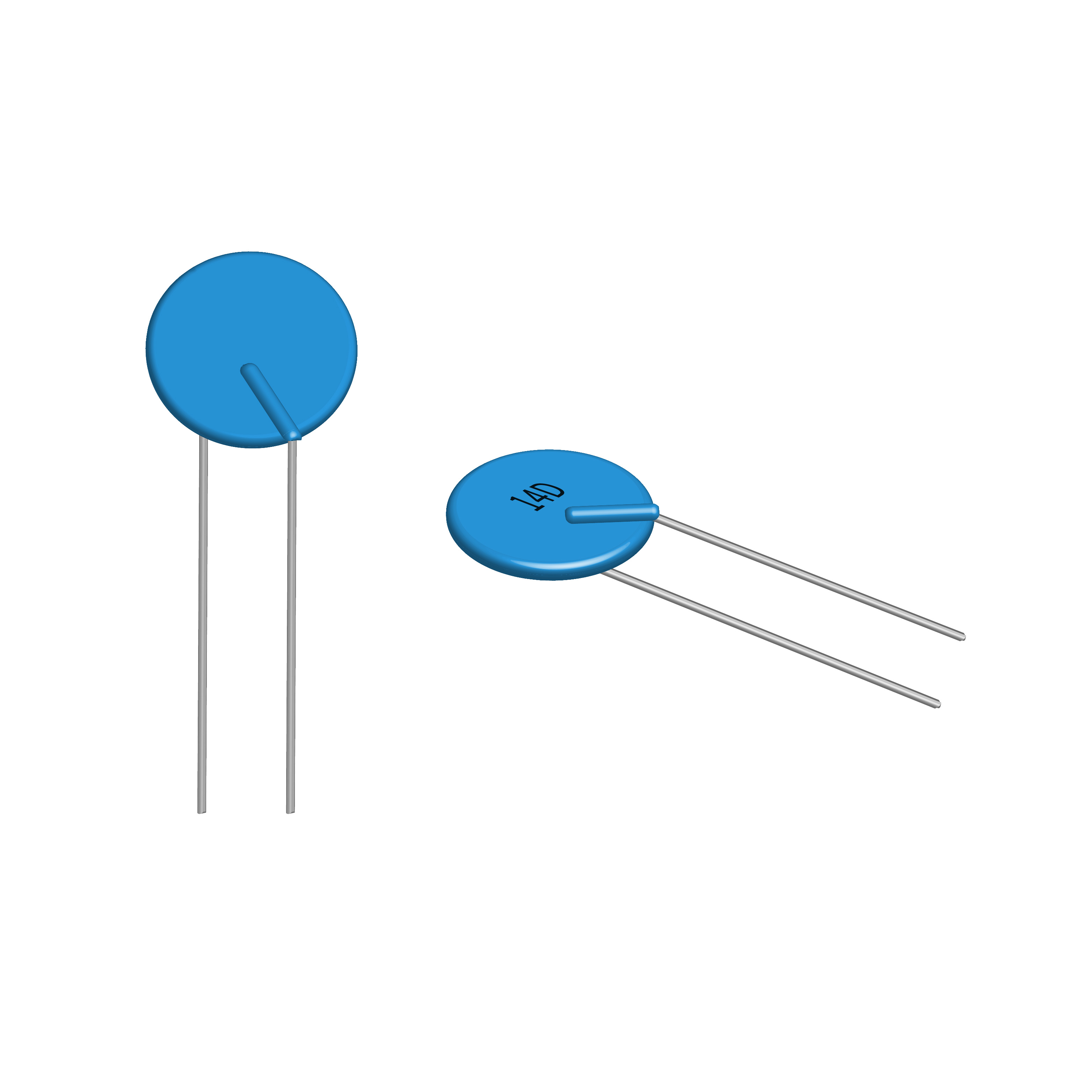

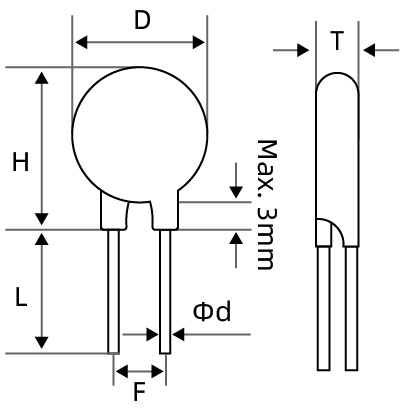

Product shape
| P/N | Varistor Voltage | Maximum allowable voltage | Maximum Limited Voltage | Withstanding Surge current(（1.2/50μs&8/20μs）) | Rated Wattage | Energy （10/1000μs） | Typical Capacitance | Status | Samples | ||||||
| V1mA（V） | AC（V） | DC（V） | V5A（V） | Imax | In | （W） | （J） | 1KHz(PF) | |||||||
| 14D180K | 18 | 16-20 | 11 | 14 | 38 | 1000 | 一 | 0.1 | 5.7 | 18000 |  | Request sample | |||
| 14D220K | 22 | 20-24 | 14 | 18 | 43 | 1000 | 一 | 0.1 | 7 | 15000 | | Request sample | |||
| 14D270K | 27 | 24-30 | 17 | 22 | 53 | 1000 | 一 | 0.1 | 8.5 | 10000 | | Request sample | |||
| 14D330K | 33 | 30-36 | 20 | 26 | 65 | 1000 | 一 | 0.1 | 10 | 8500 | | Request sample | |||
| 14D390K | 39 | 35-43 | 25 | 31 | 77 | 1000 | 一 | 0.1 | 12 | 7500 | | Request sample | |||
| 14D470K | 47 | 42-52 | 30 | 38 | 93 | 1000 | 一 | 0.1 | 15 | 6500 | | Request sample | |||
| 14D560K | 56 | 50-62 | 35 | 45 | 110 | 1000 | 一 | 0.1 | 18 | 5600 | | Request sample | |||
| 14D680K | 68 | 61-75 | 40 | 56 | 135 | 1000 | 一 | 0.1 | 21 | 4700 | | Request sample | |||
| 14D820K | 82 | 74-90 | 50 | 65 | 135 | 4500 | 3000 | 0.6 | 26 | 3900 | | Request sample | |||
| 14D101K | 100 | 90-100 | 60 | 85 | 165 | 4500 | 3000 | 0.6 | 32 | 3400 | | Request sample | |||
| 14D121K | 120 | 108-132 | 75 | 100 | 200 | 4500 | 3000 | 0.6 | 38 | 3100 | | Request sample | |||
| 14D151K | 150 | 135-165 | 95 | 125 | 250 | 4500 | 3000 | 0.6 | 47 | 3000 | | Request sample | |||
| 14D181K | 180 | 162-198 | 115 | 150 | 300 | 4500 | 3000 | 0.6 | 57 | 1030 | | Request sample | |||
| 14D201K | 200 | 185-225 | 130 | 170 | 340 | 4500 | 3000 | 0.6 | 63 | 970 | | Request sample | |||
| 14D221K | 220 | 198-242 | 140 | 180 | 360 | 4500 | 3000 | 0.6 | 69 | 840 | | Request sample | |||
| 14D241K | 240 | 216-264 | 150 | 200 | 395 | 4500 | 3000 | 0.6 | 76 | 710 | | Request sample | |||
| 14D271K | 270 | 243-297 | 175 | 225 | 455 | 4500 | 3000 | 0.6 | 85 | 650 | | Request sample | |||
| 14D301K | 300 | 270-330 | 195 | 250 | 500 | 4500 | 3000 | 0.6 | 95 | 600 | | Request sample | |||
| 14D331K | 330 | 297-363 | 215 | 275 | 550 | 4500 | 3000 | 0.6 | 104 | 550 | | Request sample | |||
| 14D361K | 360 | 324-396 | 230 | 300 | 595 | 4500 | 3000 | 0.6 | 113 | 500 | | Request sample | |||
| 14D391K | 390 | 351-429 | 250 | 320 | 650 | 4500 | 3000 | 0.6 | 123 | 480 | | Request sample | |||
| 14D431K | 430 | 387-473 | 275 | 350 | 710 | 4500 | 3000 | 0.6 | 136 | 440 | | Request sample | |||
| 14D471K | 470 | 423-517 | 300 | 385 | 775 | 4500 | 3000 | 0.6 | 148 | 420 | | Request sample | |||
| 14D511K | 510 | 459-561 | 320 | 410 | 845 | 4500 | 3000 | 0.6 | 148 | 390 | | Request sample | |||
| 14D561K | 560 | 504-616 | 350 | 455 | 930 | 4500 | 3000 | 0.6 | 148 | 360 | | Request sample | |||
| 14D621K | 620 | 558-682 | 385 | 505 | 1025 | 4500 | 3000 | 0.6 | 148 | 320 | | Request sample | |||
| 14D681K | 680 | 612-748 | 420 | 560 | 1120 | 4500 | 3000 | 0.6 | 148 | 290 | | Request sample | |||
| 14D751K | 750 | 657-825 | 460 | 615 | 1240 | 4500 | 3000 | 0.6 | 158 | 260 | | Request sample | |||
| 14D781K | 780 | 702-858 | 485 | 640 | 1290 | 4500 | 3000 | 0.6 | 164 | 230 | | Request sample | |||
| 14D821K | 820 | 738-902 | 510 | 670 | 1355 | 4500 | 3000 | 0.6 | 172 | 230 | | Request sample | |||
| 14D911K | 910 | 819-1001 | 550 | 745 | 1500 | 4500 | 3000 | 0.6 | 191 | 200 | | Request sample | |||
| 14D951K | 951 | 855-1045 | 575 | 765 | 1580 | 4500 | 3000 | 0.6 | 199 | 190 | | Request sample | |||
| 14D102K | 1.0K | 900-1100 | 625 | 825 | 1650 | 4500 | 3000 | 0.6 | 210 | 180 | | Request sample | |||
| 14D112K | 1.1K | 990-1210 | 680 | 895 | 1815 | 4500 | 3000 | 0.6 | 231 | 150 | | Request sample | |||
| 14D152K | 1.5 | 1350-1650 | 900 | 1220 | 2475 | 4500 | 3000 | 0.6 | 312 | 140 | | Request sample | |||
| 14D182K | 1.8K | 1620-1980 | 1000 | 1465 | 2970 | 4500 | 3000 | 0.6 | 378 | 120 | | Request sample | |||
