MOV Varistors 5D K Series
18V~750V overvoltage protection device common series
Description
Features

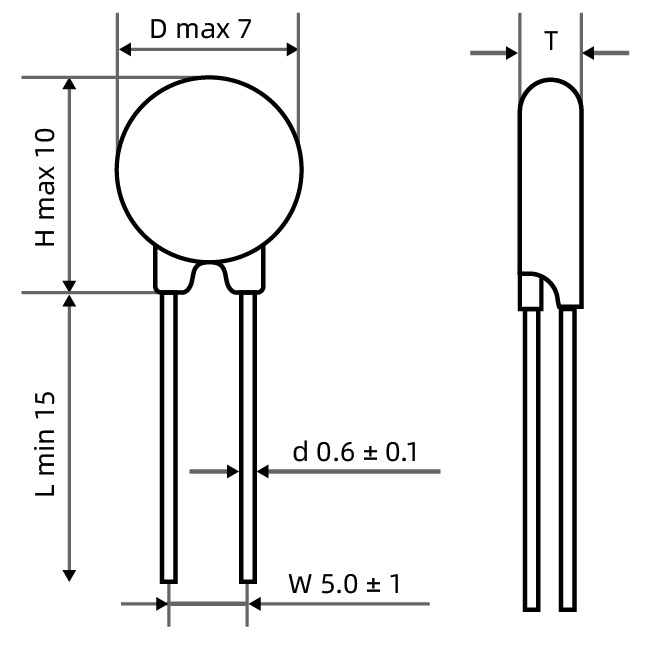

Package

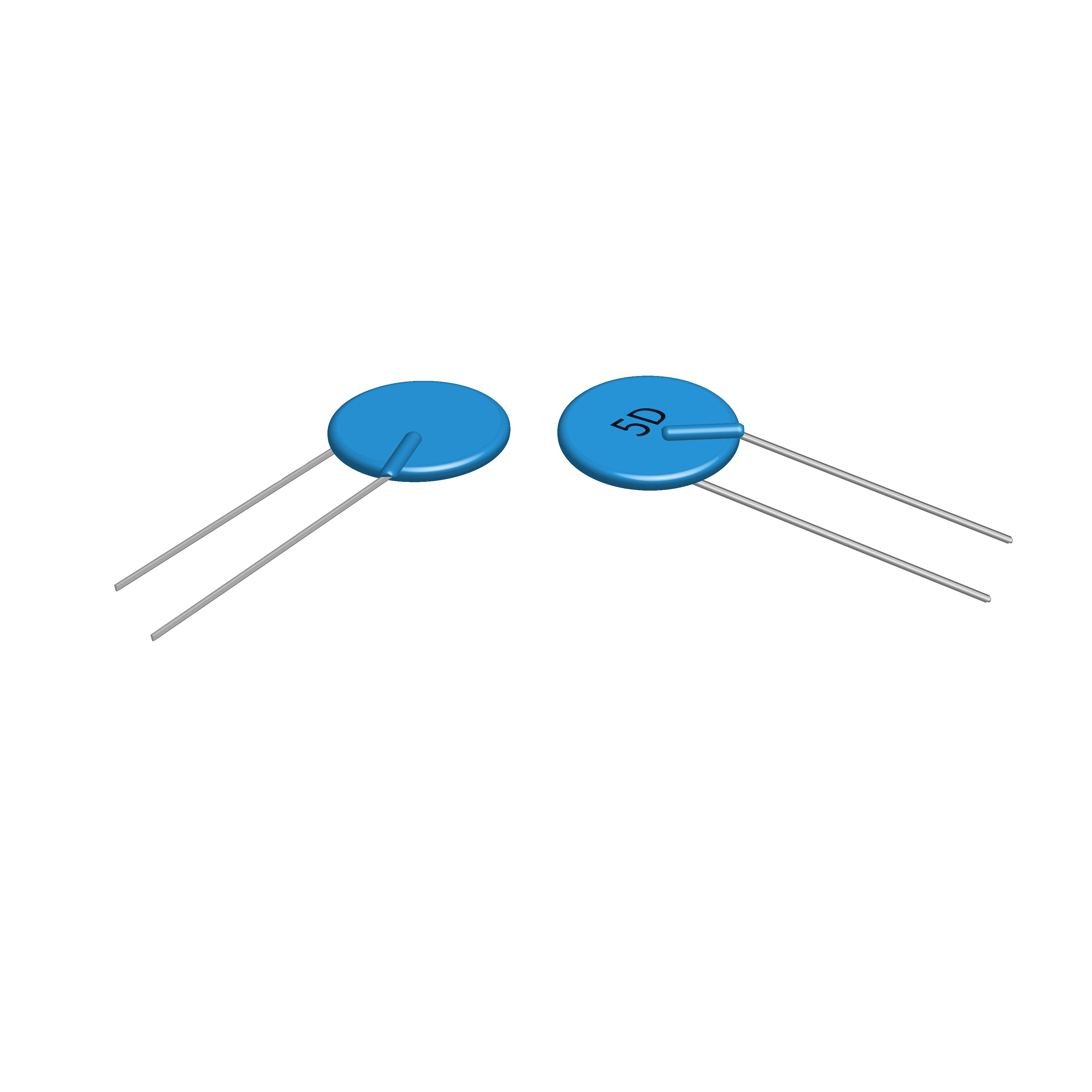

Product shape
| P/N | Varistor Voltage | Maximum allowable voltage | Maximum Limited Voltage | Withstanding Surge current(（1.2/50μs&8/20μs）) | Rated Wattage | Energy （10/1000μs） | Typical Capacitance | Status | Samples | ||||||
| V1mA（V） | AC（V） | DC（V） | V5A（V） | Imax | In | （W） | （J） | 1KHz(PF) | |||||||
| 5D180K | 18 | 16-20 | 11 | 14 | 0.4 | 100 | 一 | 0.01 | 0.5 | 2400 |  | Request sample | |||
| 5D220K | 22 | 20-24 | 14 | 18 | 0.48 | 100 | 一 | 0.01 | 0.7 | 1800 | | Request sample | |||
| 5D270K | 27 | 24-30 | 17 | 22 | 0.6 | 100 | 一 | 0.01 | 0.8 | 1500 | | Request sample | |||
| 5D330K | 33 | 30-36 | 20 | 26 | 0.73 | 100 | 一 | 0.01 | 1 | 1200 | | Request sample | |||
| 5D390K | 39 | 35-43 | 25 | 31 | 0.86 | 100 | 一 | 0.01 | 1.2 | 1000 | | Request sample | |||
| 5D470K | 47 | 42-52 | 30 | 38 | 0.104 | 100 | 一 | 0.01 | 1.5 | 850 | | Request sample | |||
| 5D560K | 56 | 50-62 | 35 | 45 | 0.123 | 100 | 一 | 0.01 | 1.8 | 700 | | Request sample | |||
| 5D680K | 68 | 61-75 | 40 | 56 | 0.15 | 100 | 一 | 0.01 | 2.1 | 560 | | Request sample | |||
| 5D820K | 82 | 74-90 | 50 | 65 | 145 | 400 | 150 | 0.1 | 2.5 | 480 | | Request sample | |||
| 5D101K | 100 | 90-100 | 60 | 85 | 175 | 400 | 150 | 0.1 | 3.2 | 420 | | Request sample | |||
| 5D121K | 120 | 108-132 | 75 | 100 | 210 | 400 | 150 | 0.1 | 4 | 360 | | Request sample | |||
| 5D151K | 150 | 135-165 | 95 | 125 | 260 | 400 | 150 | 0.1 | 4.8 | 280 | | Request sample | |||
| 5D181K | 180 | 162-198 | 115 | 150 | 320 | 400 | 150 | 0.1 | 5.9 | 200 | | Request sample | |||
| 5D201K | 200 | 180-220 | 130 | 170 | 355 | 400 | 150 | 0.1 | 6.5 | 160 | | Request sample | |||
| 5D221K | 220 | 198-242 | 140 | 180 | 380 | 400 | 150 | 0.1 | 7 | 110 | | Request sample | |||
| 5D241K | 240 | 216-264 | 150 | 200 | 415 | 400 | 150 | 0.1 | 8 | 85 | | Request sample | |||
| 5D271K | 270 | 243-297 | 175 | 225 | 475 | 400 | 150 | 0.1 | 8.5 | 75 | | Request sample | |||
| 5D301K | 300 | 270-330 | 195 | 250 | 525 | 400 | 150 | 0.1 | 8.5 | 75 | | Request sample | |||
| 5D331K | 330 | 297-363 | 210 | 275 | 575 | 400 | 150 | 0.1 | 9.2 | 75 | | Request sample | |||
| 5D361K | 360 | 324-396 | 230 | 300 | 620 | 400 | 150 | 0.1 | 10 | 70 | | Request sample | |||
| 5D391K | 390 | 351-429 | 250 | 320 | 675 | 400 | 150 | 0.1 | 12 | 70 | | Request sample | |||
| 5D431K | 430 | 387-473 | 275 | 350 | 745 | 400 | 150 | 0.1 | 13 | 65 | | Request sample | |||
| 5D471K | 470 | 423-517 | 300 | 385 | 810 | 400 | 150 | 0.1 | 15 | 55 | | Request sample | |||
| 5D511K | 510 | 459-561 | 320 | 418 | 882 | 400 | 150 | 0.1 | 16 | 55 | | Request sample | |||
| 5D561K | 560 | 504-616 | 350 | 460 | 968 | 400 | 150 | 0.1 | 18 | 50 | | Request sample | |||
| 5D621K | 620 | 558-682 | 385 | 505 | 1072 | 400 | 150 | 0.1 | 18 | 45 | | Request sample | |||
| 5D681K | 680 | 612-748 | 420 | 560 | 1176 | 400 | 150 | 0.1 | 18 | 40 | | Request sample | |||
| 5D751K | 750 | 675-825 | 460 | 615 | 1300 | 400 | 150 | 0.1 | 18 | 35 | | Request sample | |||
