1.0SMB Series 1000W TVS Diode

  • Package name: DO-214AA (SMBJ)
  • Low profile package
  • Ideal for automated placement
  • Glass passivated chip junction

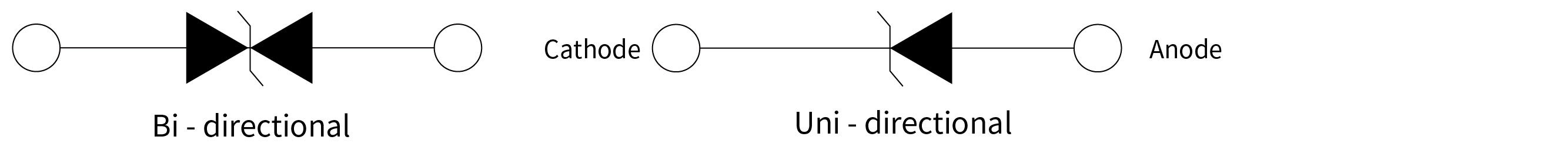

  • Available in uni-directional and bi-directional
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
Availability:
Quantity:

The 1.0SMB Series 1000W TVS Diode - a high-quality, professional-grade product. With its exceptional clamping ability, low surge resistance increment, and lightning-fast response time, this TVS diode is a reliable solution for your protection requirements.

Featuring a peak pulse power capability of 1000W, with a 10/1000 us waveform and a repetition rate (duty cycle) of 0.01%, this diode ensures optimal performance in demanding situations. Its polarity is clearly indicated, with unidirectional types marked with a color band and bidirectional types left unmarked.

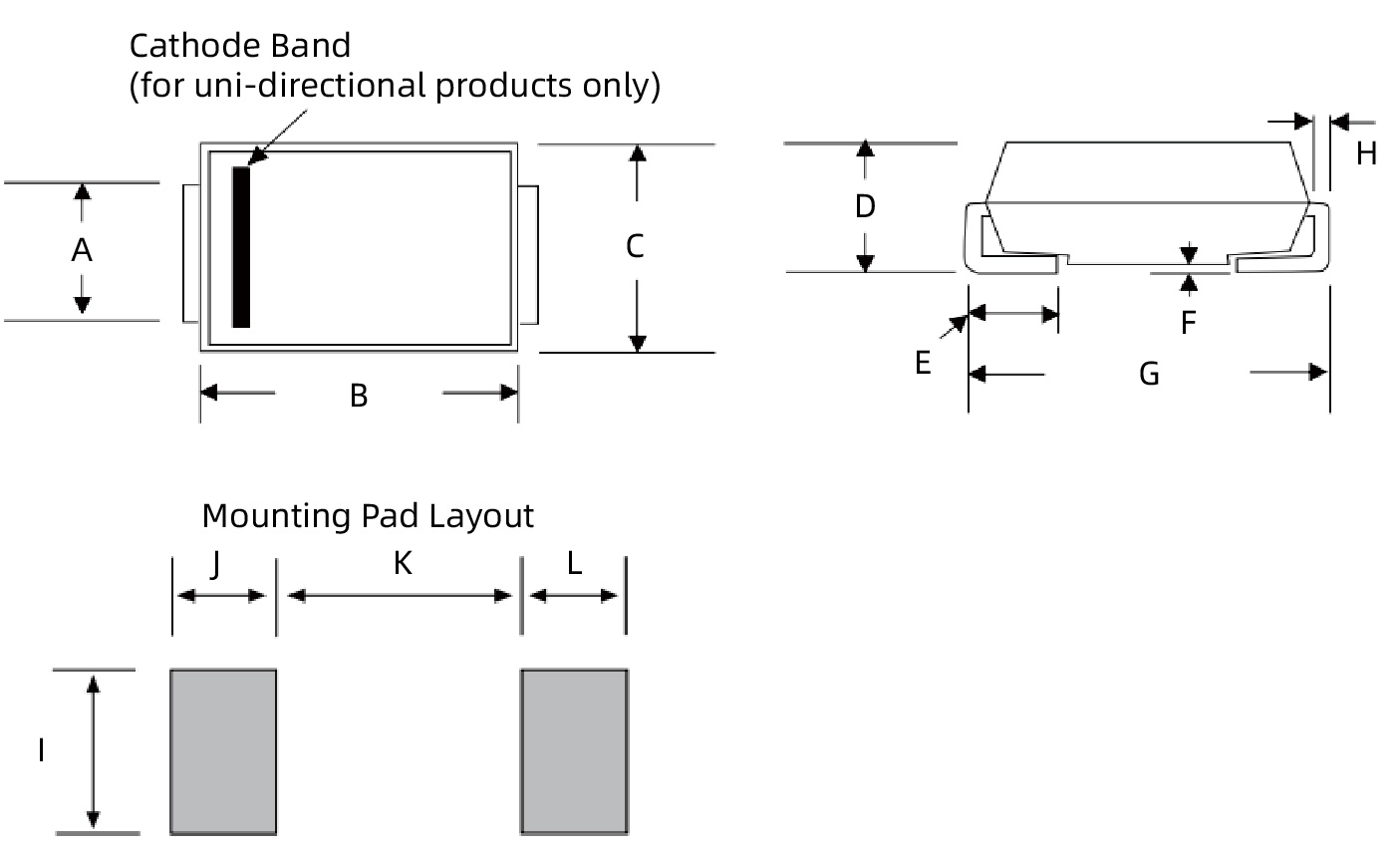

The TVS  1.0SMB SERIES is offered in the industry standard,  SMB package to enable easy solderability.


Application

  • Routers, switches, modems

  • Engine control unit, vehicle entertainment system

  • TV, refrigerator, air conditioner

  • PLC, sensors, actuators

  • Medical imaging equipment, electrocardiographs, blood pressure monitors


Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.



Hot Tags: 1.0smb series 1000w TVS diode, China, manufacturers, factory, price, SMDJ TVS, Leaded TVS Diode, 1500W TVS Diode, Surface Mount Transient Voltage Suppressor, 800W TVS Diode, 1500W Transient Voltage Suppressor

Minimum Peak Pulse Power Dissipation (T=1 ms) (note1 note2)
600Watts
Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Note 3) 100Amps
Steady State Power Dissipation @ TL = 75 °C 5.0Watts

Maximum Instantaneous Forward Voltage @ I PP = 50 A

(For Unidirectional Units Only)(note4 note 5)

3.5/5 volts
Operating Temperature Range -55 to + 150 ℃
Storage Temperature Range -55 to + 175 ℃


Note:

  1. Non-repetitive current pulse per Fig.5 and derated above TA= 25 °C per Fig.1

  2. Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum

  3. VF<3.5V for devices of VBR<50V.、

SMBJ-1SMBJ-2SMBJ-3

Part Number (Bi) Part Number (Uni) MARKING Reverse
Stand off
Voltage VR
(Volts)
Breakdown
Voltage VBR (Volts)@IT
Test Current IT(mA) Maximum Reverse Leakage
IR@ VR(μA)
Maximum Peak Pulse Current
I pp (A)
Maximum Clamping
Voltage VC @ I pp (V)
BI UNI Min .V Max .V
1.0SMB6.8CA 1.0SMB6.8A N10A A10A 5.8 6.46 7.14 10 900 95.2 10.5
1.0SMB7.5CA 1.0SMB7.5A N10B A10B 6.4 7.13 7.88 10 400 88.5 11.3
1.0SMB8.2CA 1.0SMB8.2A N10C A10C 7.0 7.79 8.61 10 180 82.6 12.1
1.0SMB9.1CA 1.0SMB9.1A N10D A10D 7.8 8.65 9.56 1 45 74.6 13.4
1.0SMB10CA 1.0SMB10A N10E A10E 8.6 9.50 10.50 1 8 69.0 14.5
1.0SMB11CA 1.0SMB11A N10F A10F 9.4 10.45 11.55 1 4 64.1 15.6
1.0SMB12CA 1.0SMB12A N10G A10G 10.2 11.40 12.60 1 1 59.9 16.7
1.0SMB13CA 1.0SMB13A N10H A10H 11.1 12.35 13.65 1 1 54.9 18.2
1.0SMB15CA 1.0SMB15A N10I A10I 12.8 14.25 15.75 1 1 47.2 21.2
1.0SMB16CA 1.0SMB16A N10J A10J 13.6 15.20 16.80 1 1 44.4 22.5
1.0SMB18CA 1.0SMB18A N10K A10K 15.3 17.10 18.90 1 1 39.7 25.2
1.0SMB20CA 1.0SMB20A N10L A10L 17.1 19.00 21.00 1 1 36.1 27.7
1.0SMB22CA 1.0SMB22A N10M A10M 18.8 20.90 23.10 1 1 32.7 30.6
1.0SMB24CA 1.0SMB24A N10N A10N 20.5 22.80 25.20 1 1 30.1 33.2
1.0SMB27CA 1.0SMB27A N10O A10O 23.1 25.65 28.35 1 1 26.7 37.5
1.0SMB30CA 1.0SMB30A N10P A10P 25.6 28.50 31.50 1 1 24.2 41.4
1.0SMB33CA 1.0SMB33A N10Q A10Q 28.2 31.35 34.65 1 1 21.9 45.7
1.0SMB36CA 1.0SMB36A N10R A10R 30.8 34.20 37.80 1 1 20.0 49.9
1.0SMB39CA 1.0SMB39A N10S A10S 33.3 37.05 40.95 1 1 18.6 53.9
1.0SMB43CA 1.0SMB43A N10T A10T 36.8 40.85 45.15 1 1 16.9 59.3
1.0SMB47CA 1.0SMB47A N10U A10U 40.2 44.65 49.35 1 1 15.4 64.8
